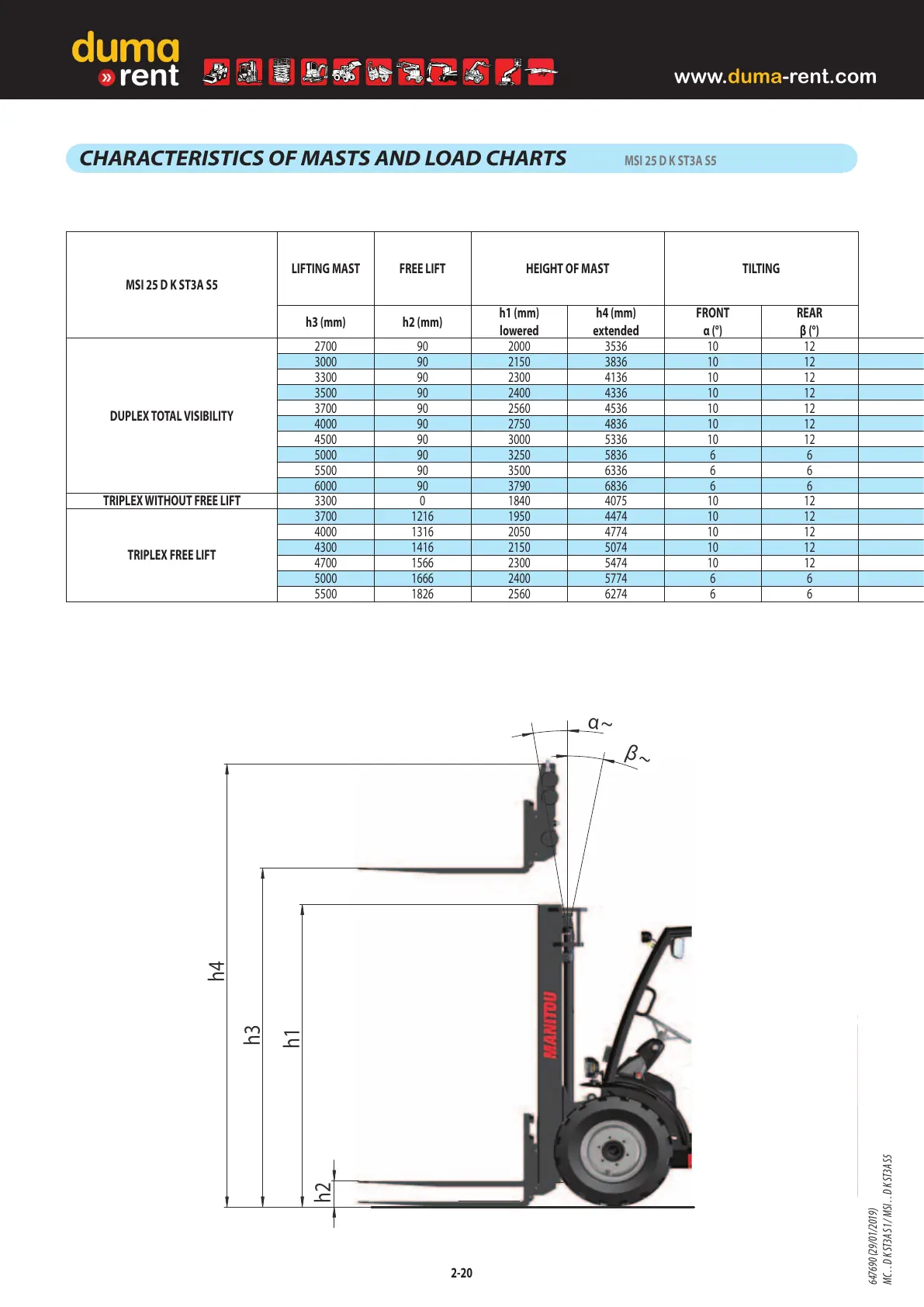

CHARACTERISTICS OF MASTS AND LOAD CHARTS MSI 25 D K ST3A S5
MSI 25 D K ST3A S5
LIFTING MAST FREE LIFT HEIGHT OF MAST TILTING
h3 (mm) h2 (mm)
h1 (mm)
lowered
h4 (mm)
extended
FRONT
α (°)
REAR
β (°)
DUPLEX TOTAL VISIBILITY
2700 90 2000 3536 10 12
3000 90 2150 3836 10 12
3300 90 2300 4136 10 12
3500 90 2400 4336 10 12
3700 90 2560 4536 10 12
4000 90 2750 4836 10 12
4500 90 3000 5336 10 12
5000 90 3250 5836 6 6
5500 90 3500 6336 6 6
6000 90 3790 6836 6 6
TRIPLEX WITHOUT FREE LIFT 3300 0 1840 4075 10 12
TRIPLEX FREE LIFT
3700 1216 1950 4474 10 12
4000 1316 2050 4774 10 12
4300 1416 2150 5074 10 12
4700 1566 2300 5474 10 12
5000 1666 2400 5774 6 6
5500 1826 2560 6274 6 6
2-20
α~
β
~
h1
h2
h3
h4
647690 (29/01/2019)
M
C . . D K ST3A S1 / MSI . . D K ST3A S5
