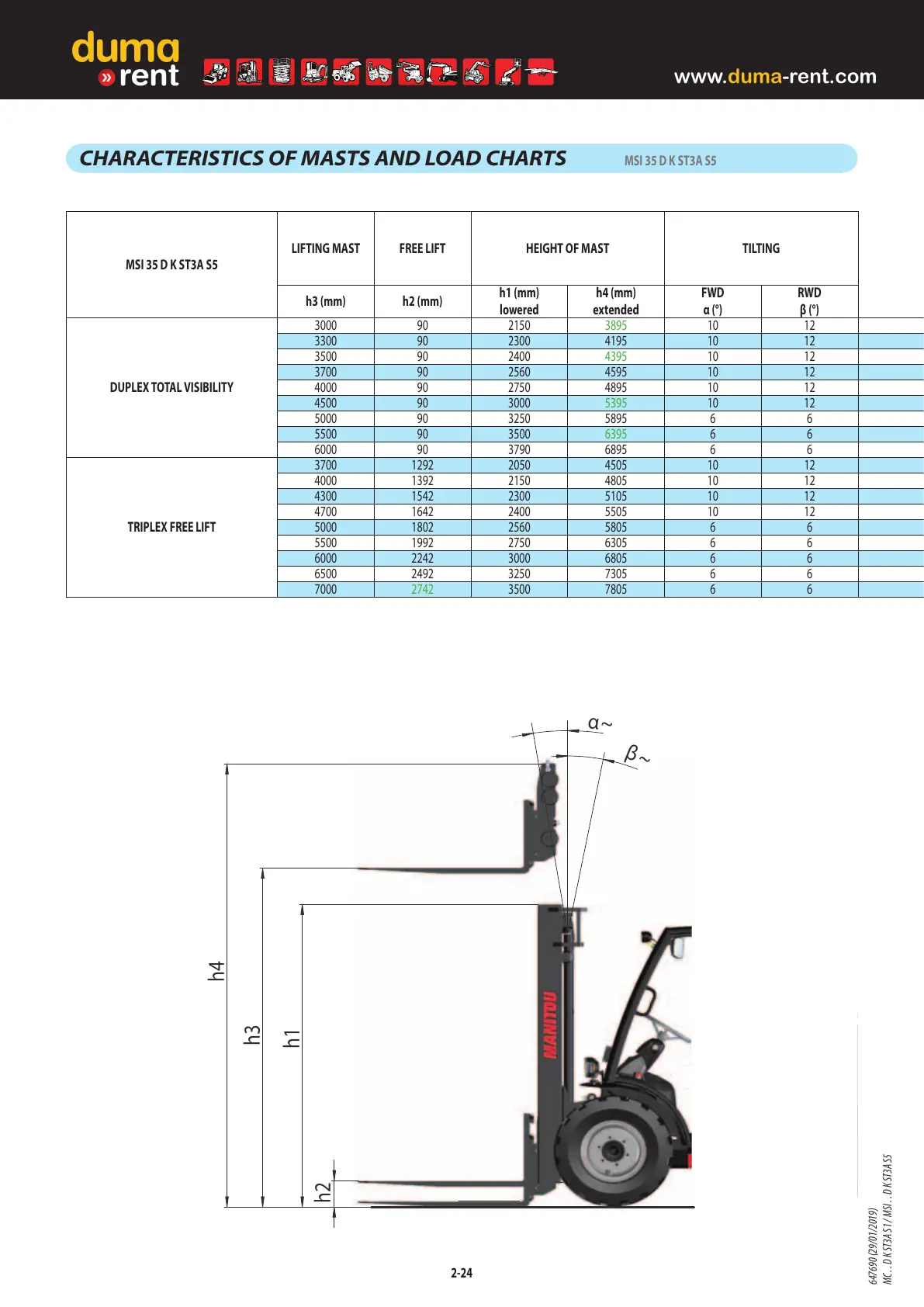

CHARACTERISTICS OF MASTS AND LOAD CHARTS MSI 35 D K ST3A S5
MSI 35 D K ST3A S5
LIFTING MAST FREE LIFT HEIGHT OF MAST TILTING
h3 (mm) h2 (mm)
h1 (mm)
lowered
h4 (mm)
extended
FWD
α (°)
RWD
β (°)
DUPLEX TOTAL VISIBILITY
3000 90 2150 3895 10 12
3300
90 2300 4195 10 12
3500 90 2400 4395 10 12
3700
90 2560 4595 10 12
4000 90 2750 4895 10 12
4500 90 3000 5395 10 12
5000
90 3250 5895 6 6
5500 90 3500 6395 66
6000
90 3790 6895 6 6
TRIPLEX FREE LIFT
3700 1292 2050 4505 10 12
4000 1392 2150 4805 10 12
4300 1542 2300 5105 10 12
4700 1642 2400 5505 10 12
5000 1802 2560 5805 6 6
5500 1992 2750 6305 6 6
6000 2242 3000 6805 6 6
6500 2492 3250 7305 6 6
7000 2742 3500 7805 6 6
2-24
α~
β
~
h1
h2
h3
h4
647690 (29/01/2019)
M
C . . D K ST3A S1 / MSI . . D K ST3A S5
