CD15 OPERATOR MANUAL MAINTENANCE
6
6. Allow the oil to drain into the container. Examine the oil
for signs of significant metal particles. If any particles are
found, the gearbox may require disassembly and repair.
7. Remove the pipe nipple.
8. Rotate the drum so the plug hole is visible through the
fill/check opening in the hoist frame.
9. Screw the pipe nipple and an elbow into the hole in the
hoist drum.
10. Fill the hoist drum with the proper type and amount of oil
(specified in Section 8 of this manual) until the oil is even
with the bottom of the plug hole.
11. Remove the elbow and pipe nipple.
12. Make sure the o-ring on the plug is not damaged
(replace if necessary) and install the plug.
13. Remove and clean the hoist gearbox breather with a
suitable solvent. Then reinstall it.
Replace the Hoist Brake Oil
1. Lower the boom to its lowest position and engage the
parking brake. Leave the engine running.
2. Clean around the hoist brake breather/fill/check plug
(Figure 6-34) and remove it.
3. Place a suitable container under the hoist brake drain
plug.
4. Remove the drain plug to drain the oil.
5. Install the drain plug.
6. Clean the breather with a suitable solvent.
7. Fill the hoist brake with the proper type and amount of oil
(specified in Section 8 of this manual) until the oil is even
with the bottom of the plug hole.
8. Install the breather/fill/check plug.
Replace the Hydraulic Oil
NOTE: ISO (International Standards Organization) #46/68
Hydraulic Oil (Mobil Fluid #424) is recommend for
year-round use in the hydraulic system.
In very cold temperatures, SAE 5W or SAE 5W-20
oils can be used if the viscosity of the oil will not be
less than 60 SUS (Saybolt Universal Seconds) at
maximum operating temperature. It may be
necessary to use a pre-heater and a longer than
normal warming period at low operating speed to
heat the oil to operating temperature.
To change the hydraulic oil:
1. Fully retract and lower the boom.
2. Retract all outriggers.
3. Operate the hydraulic system until the hydraulic oil is
warm.
NOTE: It is necessary to climb under the crane to drain the
hydraulic oil. Be sure engine is shut off, the ignition
key is removed and chock blocks are in place
before climbing under the crane.
4. Level the crane, engage the parking brake, stop the
engine and remove the ignition key.

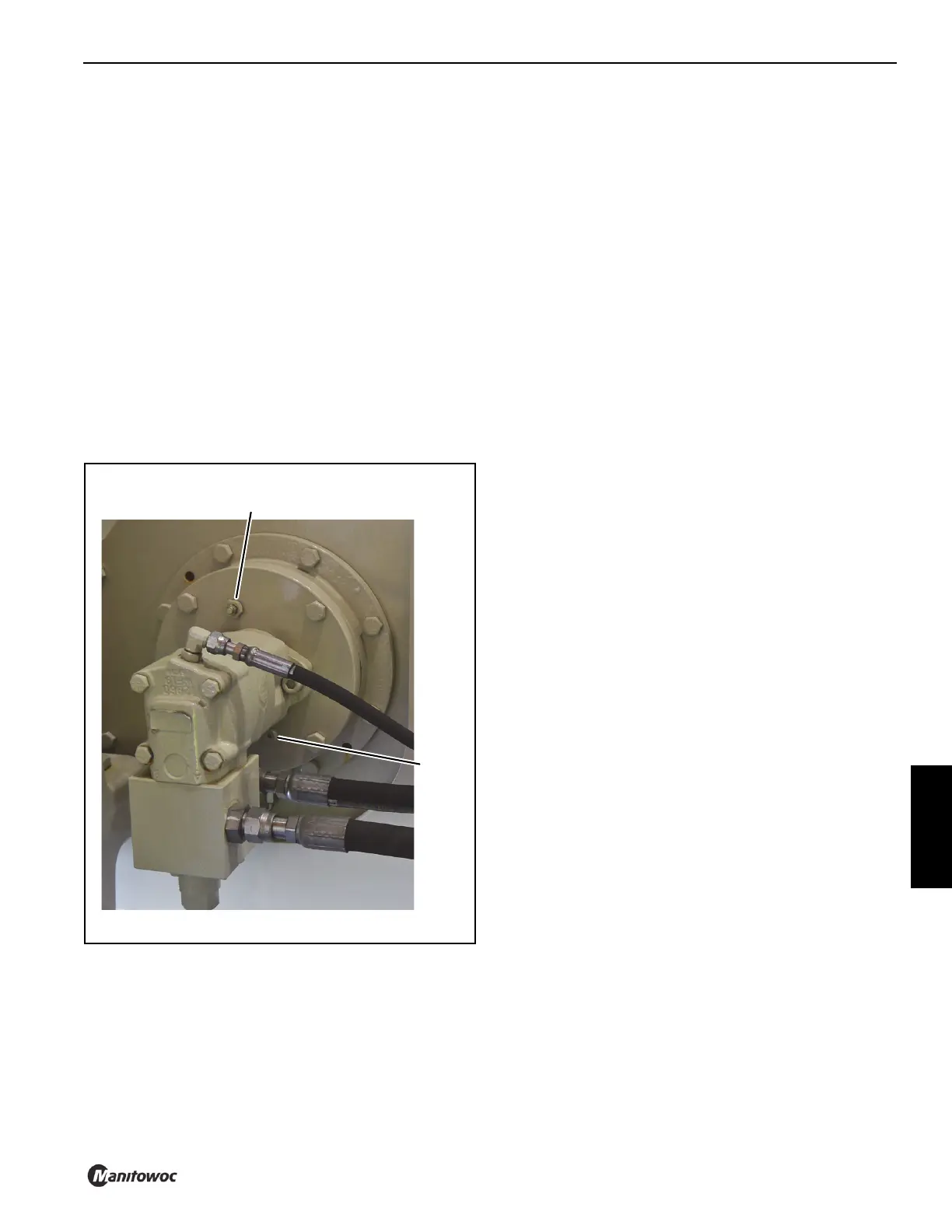

Drain
Plug
FIGURE 6-36
8954
Hoist Brake Breather/
Fill/Check Plug
