OPERATING CONTROLS AND PROCEDURES CD15 OPERATOR MANUAL
3-8 Published 3-30-2018, CTRL 636-05

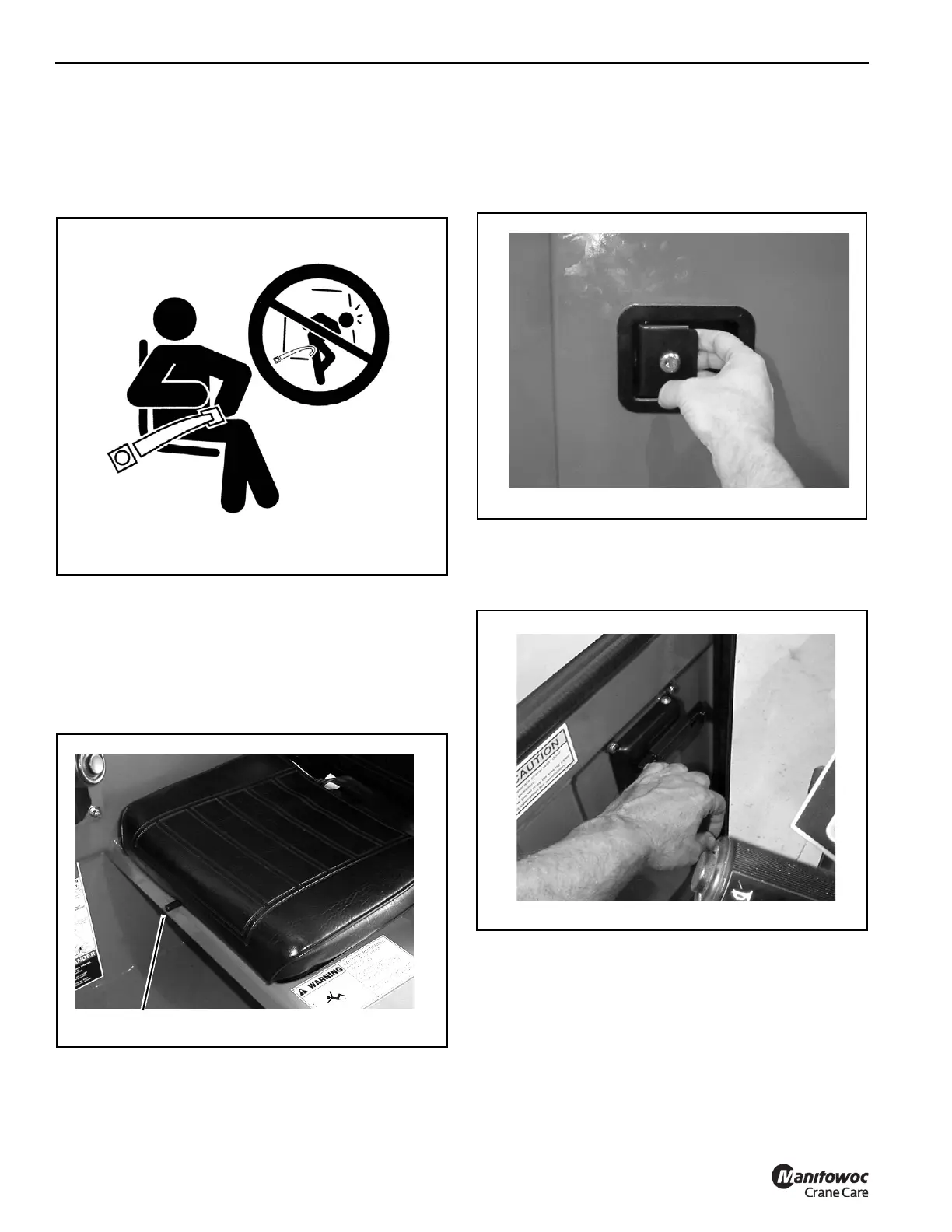

OPERATOR’S CAB
Seat Belt
The operator’s seat is equipped with a seat belt. Use this belt
at all times when operating the crane.
Seat Adjustment
Adjust the operator’s seat correctly. Full foot pedal control
must be obtained with your back firmly against the seat back.
To adjust the seat, move the control lever (Figure 3-11) to the
right. Move the seat to proper position and then move the
control lever back to the left to lock the seat position.
Cab Door (Enclosed Cab)
Opening the Cab Door From Outside (Enclosed Cab)
Pull the door latch out to release the cab door latch
(Figure 3-12).
Opening the Door From Inside (Enclosed Cab)
Pull the door handle back to release the cab door latch
(Figure 3-13).
Heater, A/C, and Defroster
The cab heater and A/C (furnished as an option with
enclosed cabs) is located under the operator’s seat
(Figure 3-14). To operate the heater or A/C, use the controls
on the panel. Position the louvers for the desired amount and
direction of air flow.
The windshield defroster fan is located below the front
windshield (Figure 3-15).
w0003
The operator’s seat is equipped with a seat belt. Use this belt at
all times when operating the crane.
p0899
Seat Adjustment
FIGURE 3-11
p0284
Opening Door - Outside
FIGURE 3-12
p0285
Opening Door - Inside
FIGURE 3-13
