MAINTENANCE CD15 OPERATOR MANUAL
6-20 Published 3-30-2018, CTRL 636-05
500 Hours of Operation (3 Months)
NOTE: You must read and understand the warnings and
basic safety rules, found in Section 2 of this
manual, before performing any operation or
maintenance procedures.
For additional engine maintenance guidelines, see
the engine manual furnished with this crane.
Replace the Transmission Filter
• 4WD – Replace the oil filter (see page 6-24)
• 2WD – Replace the oil filter (see page 6-25)
Inspect the Tires
Inspect the tires for any signs of damage, such as cracks,
large gouges, deterioration, etc. If damage is found, it must
be carefully analyzed to determine if the tire is safe to use.
Replace all tires that are unsafe.
Inspect Parking Brake Pads
NOTE: It is necessary to climb under the crane to check
the parking brake pads. Be sure engine is shut off,
the ignition key is removed and chock blocks are in
place before climbing under the crane.
Inspect the thickness of the brake pads (Figure 6-22).
Replace the brake pads if they are 0.028 inches (0.71 mm)
thick or less.
Check the surface condition of the brake disc. Replace the
disc if badly warped, pitted or out of tolerance.
Replace Fuel Filter
See the engine operator’s manual furnished with the crane
and follow the replacement procedures.
NOTE: If the filter is not filled with fuel prior to installation,
the engine will not start due to air in the fuel
system. The fuel system will have to be bled as
instructed in the engine operator’s manual
furnished with the crane.
Add SCA to Engine
For maximum protection of the engine, add Supplemental
Coolant Additive to the cooling system as instructed in the
Engine Manual.
Lubricate the Outrigger Slides
1. Lower the outriggers.
2. Clean the tops of the outriggers with a suitable solvent.
3. Apply Lithium Based, EP2 grease, or equivalent to the
areas shown in Figure 6-23. Do not over lubricate. Raise
and lower the outriggers several times to spread the
grease.

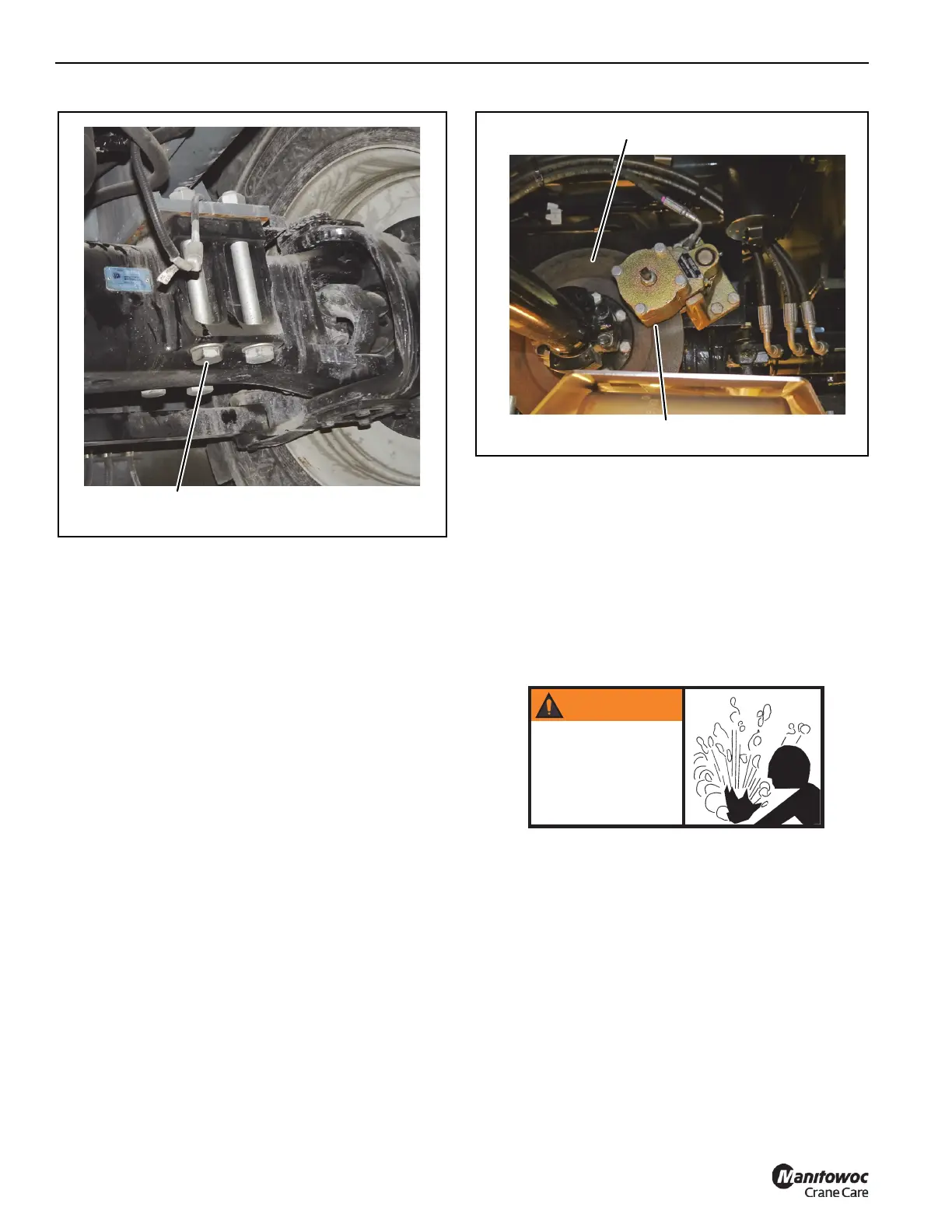

8944
Axle Mounting Bolts (qty 4 each end)
Front Shown, Rear Similar
FIGURE 6-21
Parking Brake Pads
FIGURE 6-22
8939
Parking Brake Disc
WARNING
HOT COOLANT
can scald.
1100259
Check and service
cooling system
only when cool.
