OPERATING CONTROLS AND PROCEDURES CD15 OPERATOR MANUAL
3-10 Published 3-30-2018, CTRL 636-05
CRANE OPERATION
Starting the Engine
Normal Engine Starting
NOTE: Never leave the engine running while the crane is
unattended. Shut off the engine to inhibit
unauthorized persons from operating the controls.
Walk around the crane and warn all personnel who
may be servicing the crane or are in the crane’s
path prior to starting. Do not start until all personnel
are clearly away from the crane.
This crane is equipped with an engine block heater
that can be plugged in to aid in cold weather
starting (see Engine Manual).
1. Enter the cab and adjust the operator’s seat for
comfortable operation.
2. Fasten the seat belt. Use the seat belt at all times
when operating the crane.
3. Check that the parking brake is engaged (Figure 3-17).
4. Place the travel direction lever in the neutral (N) position
(Figure 3-18).
NOTE: Do not bypass the crane’s neutral-start system.
The neutral start system must be repaired if it
malfunctions.
5. Turn the ignition key switch to the ACC/RUN position.
The WAIT TO START light will come on in the gauge
cluster.
6. Once the wait to start light goes off, turn the ignition key
switch to the START position and hold until the engine
starts.
7. Release the ignition key switch as soon as the engine
starts.
NOTE: DO NOT crank the starter motor continuously for
more than 30 seconds. Damage to the starter
motor could occur.
DO NOT operate the engine at full RPM or apply a
full load until the engine is warm. During cold
weather, it may be necessary to run the engine at a
higher speed to keep the correct operating
temperature.
8. Once the engine starts, increase engine speed as
necessary to keep the engine running.
9. Take immediate correction action if faults appear in the
gauge cluster. Do not operate the crane if the faults do
not go away soon after the engine is started, or if any
come on during operation.
10. Check the brakes, steering and all controls for proper
operation. If a malfunction is found, shut down the
engine immediately and park the crane until the
malfunction is corrected or the crane can be safely
towed. See Towing a Disabled Crane for more
information.
11. Disengage the parking brake before you travel with the
crane. See the Travel Instructions later in this section.
CAUTION
Avoid Crane Damage!
Do not engage the parking brake while the vehicle is
moving. Damage to the crane can occur.
Disengage the parking brake before driving. Damage to
the crane can occur.

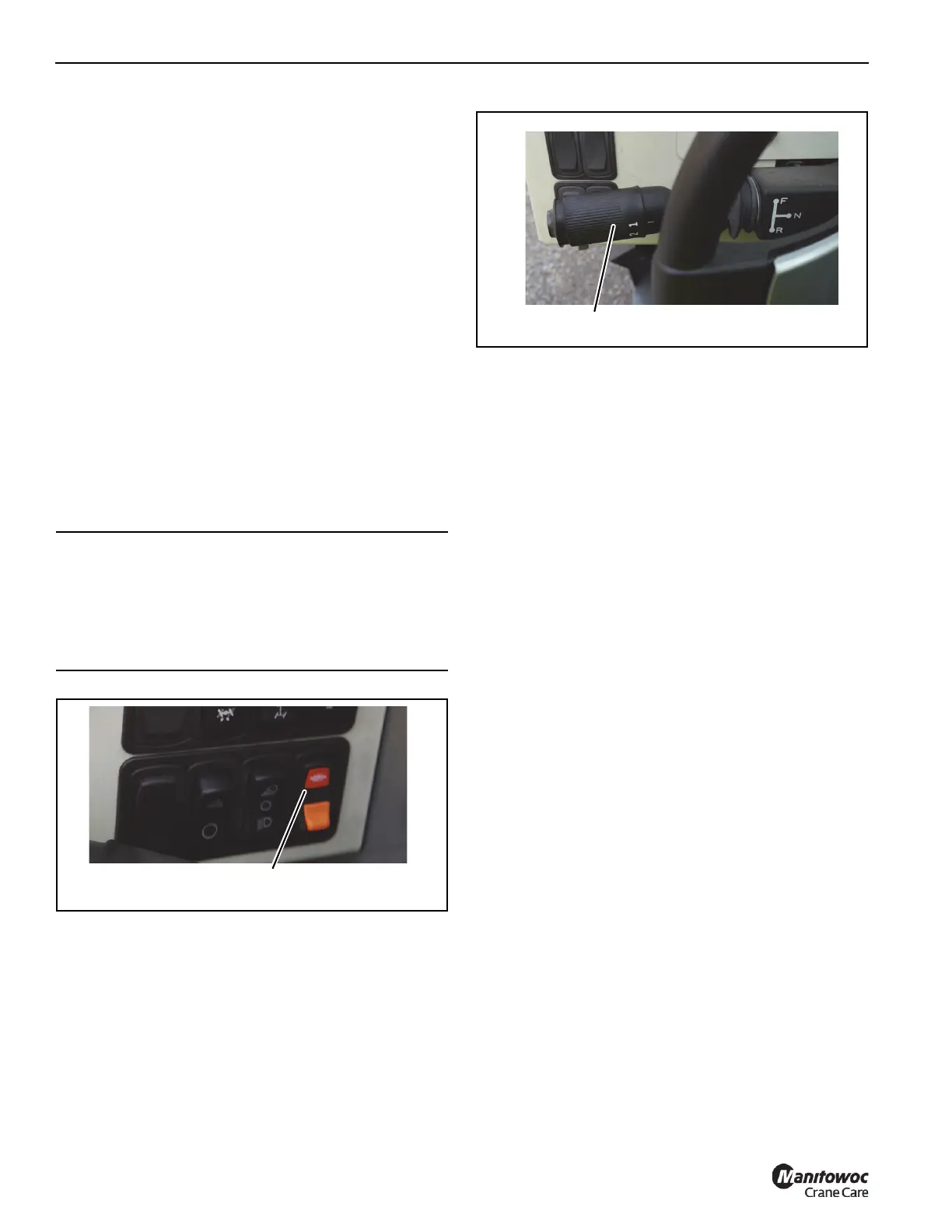

Parking Brake Switch
FIGURE 3-17
8837-2
8837-10
Travel Direction Lever and
Gear Selector Switch
FIGURE 3-18
