OPERATING CONTROLS AND PROCEDURES CD15 OPERATOR MANUAL
3-2 Published 3-30-2018, CTRL 636-05
CONTROLS, SWITCHES, AND GAUGES
Crane Controls
Brake Pedal
See Figure 3-1 for the following procedure.
Pressing down on the brake pedal applies the service
brakes, which slows and stops the crane travel movement.
The pedal must be depressed before shifting the
transmission into gear.
Accelerator Pedal
See Figure 3-1 for the following procedure.
Controls travel speed and the hydraulic working speeds of
the crane functions. Pressing down on the accelerator pedal
increases the engine speed. The pedal is spring-loaded to
return to idle speed.
Travel Direction Lever
See Figure 3-1 for the following procedure.
Selects the forward and reverse travel directions of the
crane.
For more information see Traveling the Crane on page 3-11.
The gear selector switch shifts the transmission to any one of
four gear ratios.
For more information, see Shifting Gears (Travel Speed) on
page 3-12.
Turn Signal/Windshield Wiper/Horn Lever
See Figure 3-1 for the following procedure.
Lever up – LEFT turn signal lights on.
Lever centered – turn signal lights OFF.
Lever down – RIGHT turn signal lights on.
See Figure 3-2 for the following procedure.
The wiper switch has three settings; O, I, II. Rotate the switch
to operate the wipers at the desired speed.
Press on the end of the switch to operate the windshield
washer.
Press the button on the end of lever to sound the horn.
Travel Direction Lever and
Gear Selector Switch
Accelerator Pedal
Brake Pedal
Turn Signal/Windshield
Wiper & Washer/Horn
Crane and Outrigger Controls

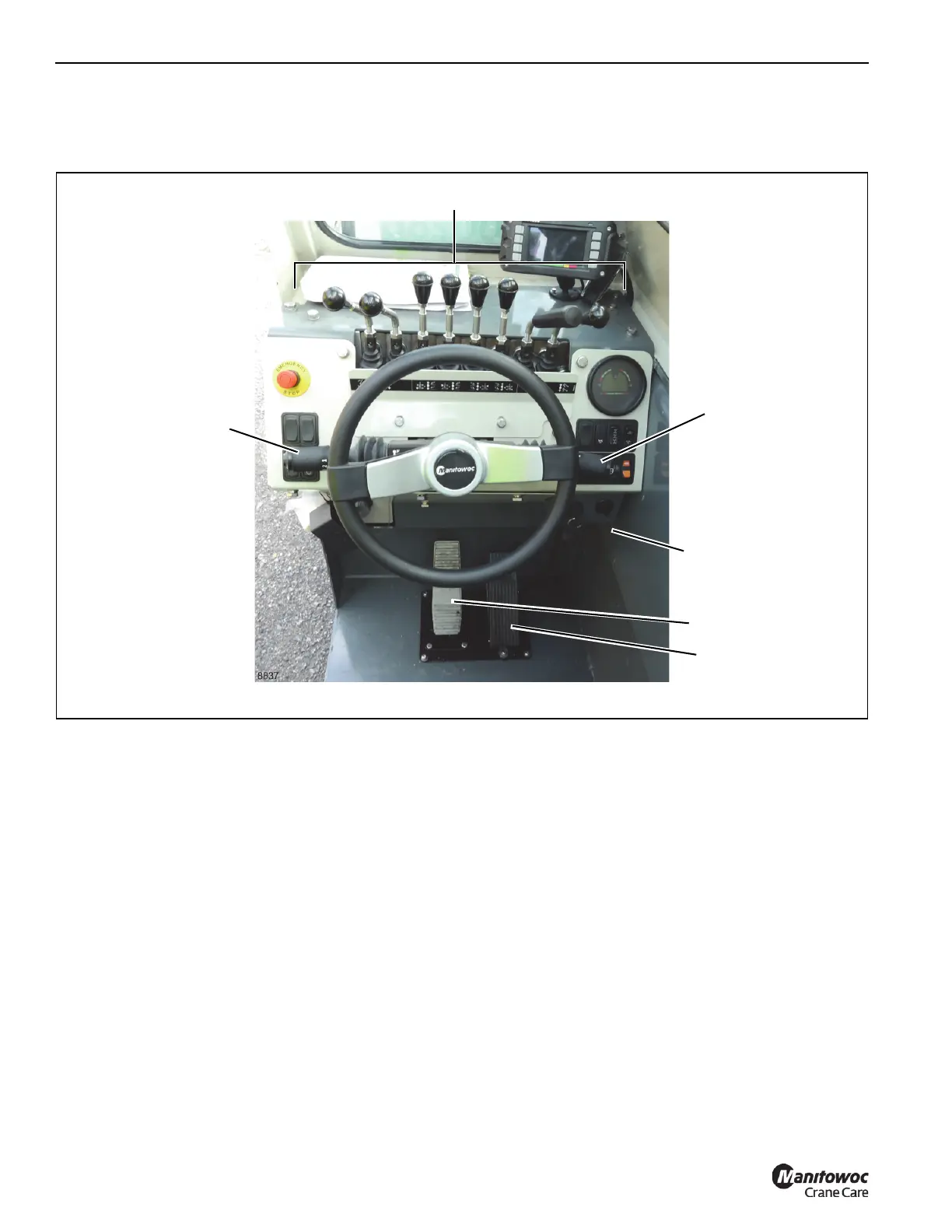

FIGURE 3-1
8837
Minimum Wrap/
Transmission Alarm (under
instrument panel)
