Manitowoc CD15

Published 3-30-2018, CTRL 636-05 6-21
CD15 OPERATOR MANUAL MAINTENANCE
6
Add Grease to the Swing Gearbox
NOTE: It is necessary to climb under the crane to add
grease to the swing gearbox. Be sure engine is
shut off, the ignition key is removed and chock
blocks are in place before climbing under the
crane.
The grease fitting for adding grease to the swing gearbox
can only be reached from under the crane. It will be
necessary to use a light to see the fitting.
1. Engage the parking brake and stop the engine. Remove
the ignition key.
2. Clean the grease fitting and check plug (Figure 6-24).
3. Remove the check plug.
4. Apply Lithium Based, EP2 grease, or equivalent to the
fitting. Fill gear box until grease exits the check plug
hole. Install the check plug.
Lubricate Drivelines
1. Engage the parking brake and stop the engine. Remove
the ignition key.
2. Clean the grease fittings (Figure 6-25).
3. Apply Lithium Based, EP2 grease or equivalent to the
fittings.
8908

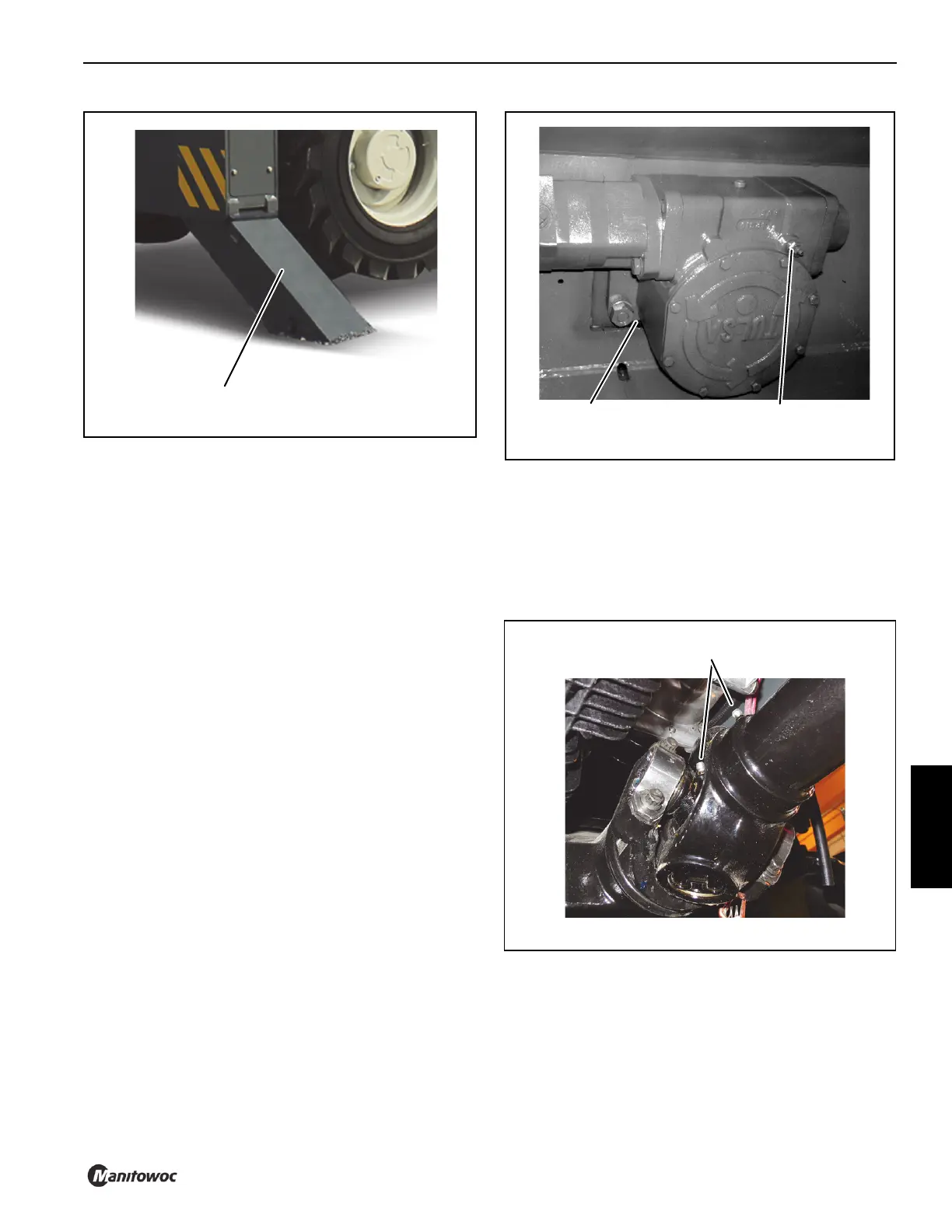

FIGURE 6-23
Apply Lubricant to Top
of each Outrigger
p0438
Swing Gearbox Grease Fitting
Check Plug Location
FIGURE 6-24
Driveline Grease Fitting
(2-3 each driveline)
8940
FIGURE 6-25
