Check Axle Housing Lubricant Level
It is necessary to climb under the crane to check the axle
housing lubricant. Be sure engine is shut off, the ignition key
is removed, and chock blocks are in place before climbing
under the crane.
1. At either axle, clean around the axle housing fill/check
plug (Figure 6-26 or Figure 6-27) and remove it.
2. Check the lubricant level. It should be even with the
bottom of the plug hole.
3. If necessary, add the proper type of oil (specified in
Section 8 of this manual) until the oil is even with the
bottom of the plug hole.
4. Repeat the steps for the other axle.
Check Wheel Hub Lubricant Level
1. Using the outriggers, raise the tires slightly off of the
ground.
2. Place the transmission in neutral and release the
parking brake.
3. Turn one of wheel hubs until the fill/check plug is
horizontal with the ground (Figure 6-28).
4. Clean around the fill/check plug and remove it.
5. Check the lubricant level. It should be even with the
bottom of the plug hole.
6. If necessary, add the proper type of oil (specified in
Section 8 of this manual) until the oil is even with the
bottom of the plug hole.
7. Reinstall the plug.
8. Repeat the steps for the other three wheel hubs.

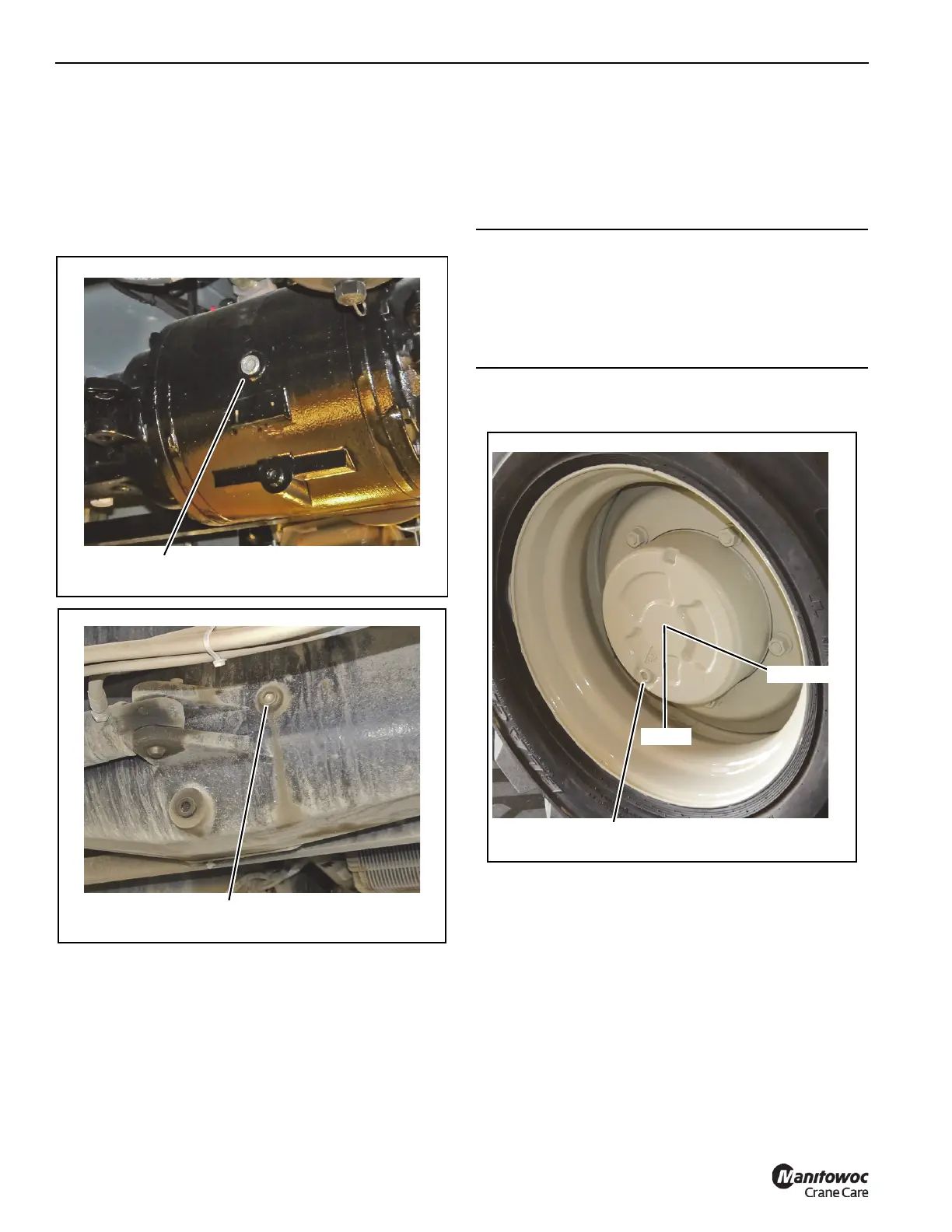

8952
Front Axle Housing
Fill/Check Plug
FIGURE 6-26
8955
Rear Axle Housing
Fill/Check Plug
FIGURE 6-27
CAUTION
Avoid Crane Damage!
Do not engage the parking brake while the vehicle is
moving. Damage to the crane can occur.
Disengage the parking brake before driving. Damage to
the crane can occur.
8951
Wheel Hub Fill/
Check Plug
FIGURE 6-28
DRAIN
FILL/CHECK
