ATTACHMENTS CD15 OPERATOR MANUAL
5-6 Published 3-30-2018, CTRL 636-05

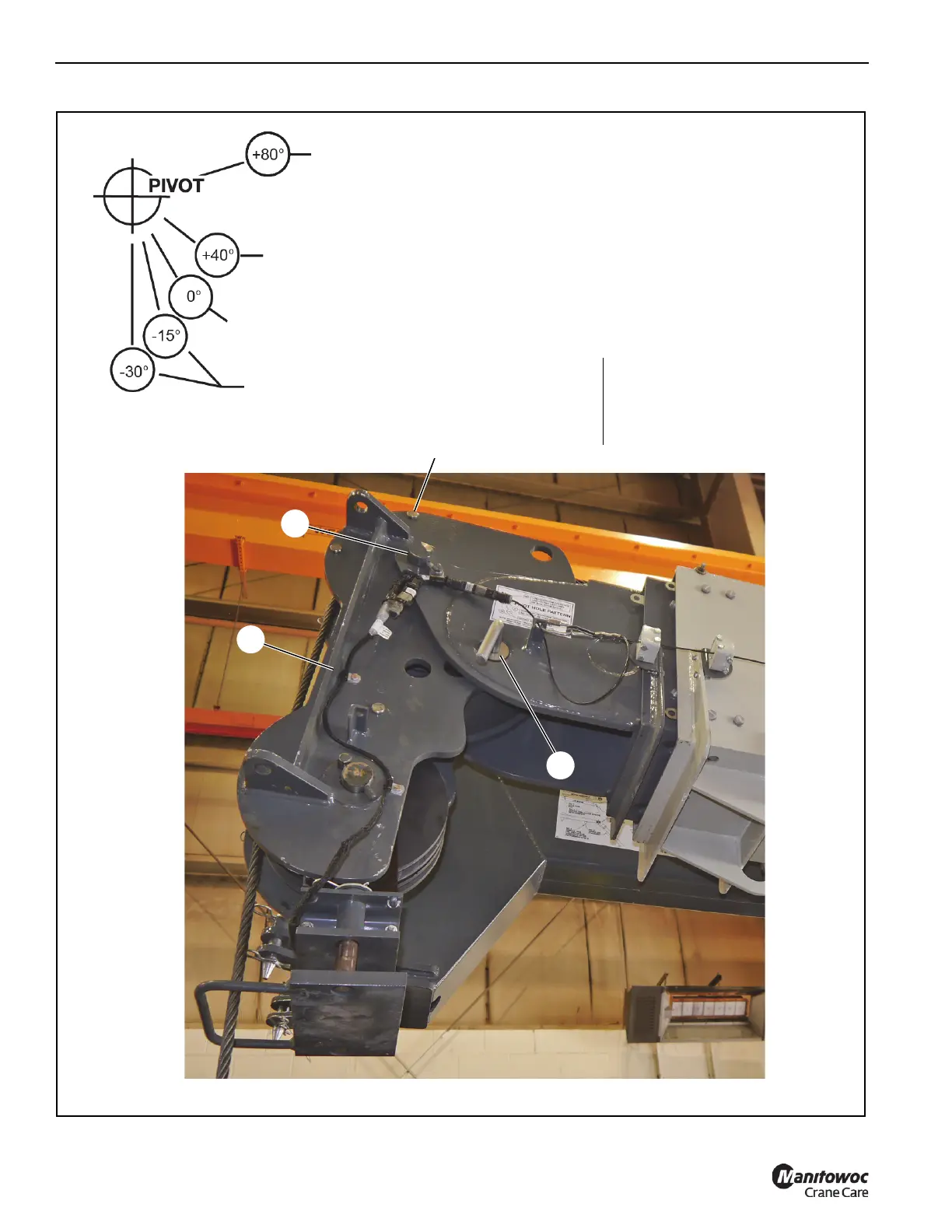

FIGURE 5-5
LOW HEADROOM OPERATION
45° Maximum Boom Angle for Single Part Line
1
4
2
1 Pivoting Boom Head
2Pivot Pin
3 Rope Retention Pin
4 Pivot Lock Pin with Safety Pin
STANDARD OPERATION
72° Maximum Boom Angle
BOOM EXTENSION OFFSET OPERATION
72° Maximum Boom Angle
VIEW A
VIEW B
3
8924
8925
LOW HEADROOM OPERATION
• 55° Maximum Boom Angle for Multiple
Parts of Line
• 72° Maximum Boom Angle for Single Part
