Manitowoc GROVE GMK 5095 User Manual

Swing-away lattice
3.4 Description of the rigging work
3 - 36 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

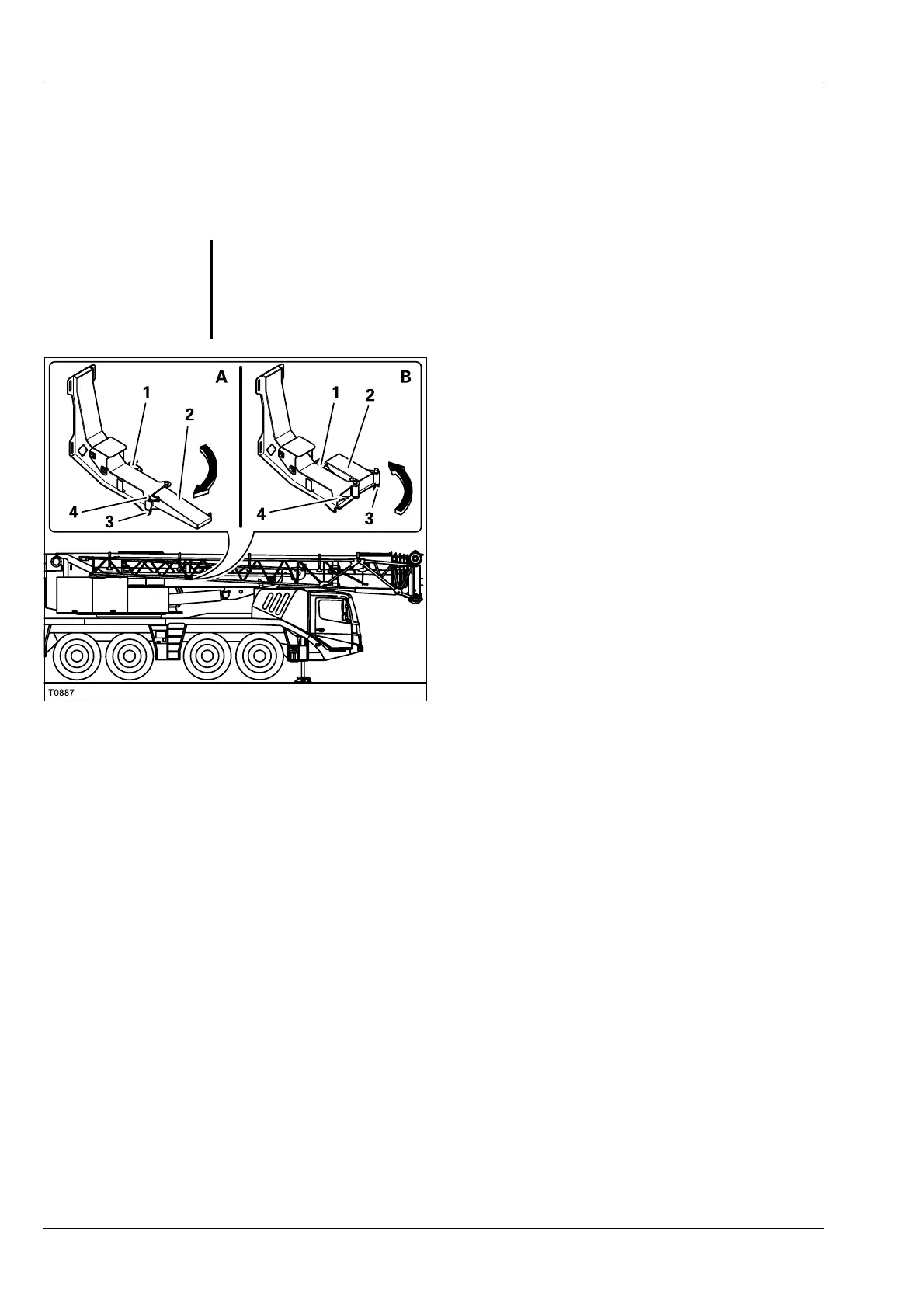

3.4.6 Folding out / in the run-up rail
The run-up rail is folded out for rigging and folded back in again for on-road
driving after unrigging.
(A) – Folding out the run-up rail
• Release the spring latch (1).
• Fold out the run-up rail (2) until the locking
bar (3) engages in the bore hole (4).
(B) – Folding in the run-up rail
• Pull the locking bar (3) downwards against
the spring force, and out of the bore hole (4).
• Fold out the run-up rail (2) slightly and let go
of the locking bar (1).
• Fold in the run-up rail completely.
• Secure the run-up rail with the spring latch (1).
G
Risk of accidents by exceeding the specified overall width
Always fold in the run-up rail before driving. With the run-up rail folded out,
the overall width specified for on-road driving is exceeded.
