Manitowoc GROVE GMK 5095 User Manual

Swing-away lattice
3.4 Description of the rigging work
3 - 64 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
3.4.13 Folding deflection sheaves out / in
Folding out deflec-
tion sheaves
For operation with the swing-away lattice, you must fold out the deflection
sheave.

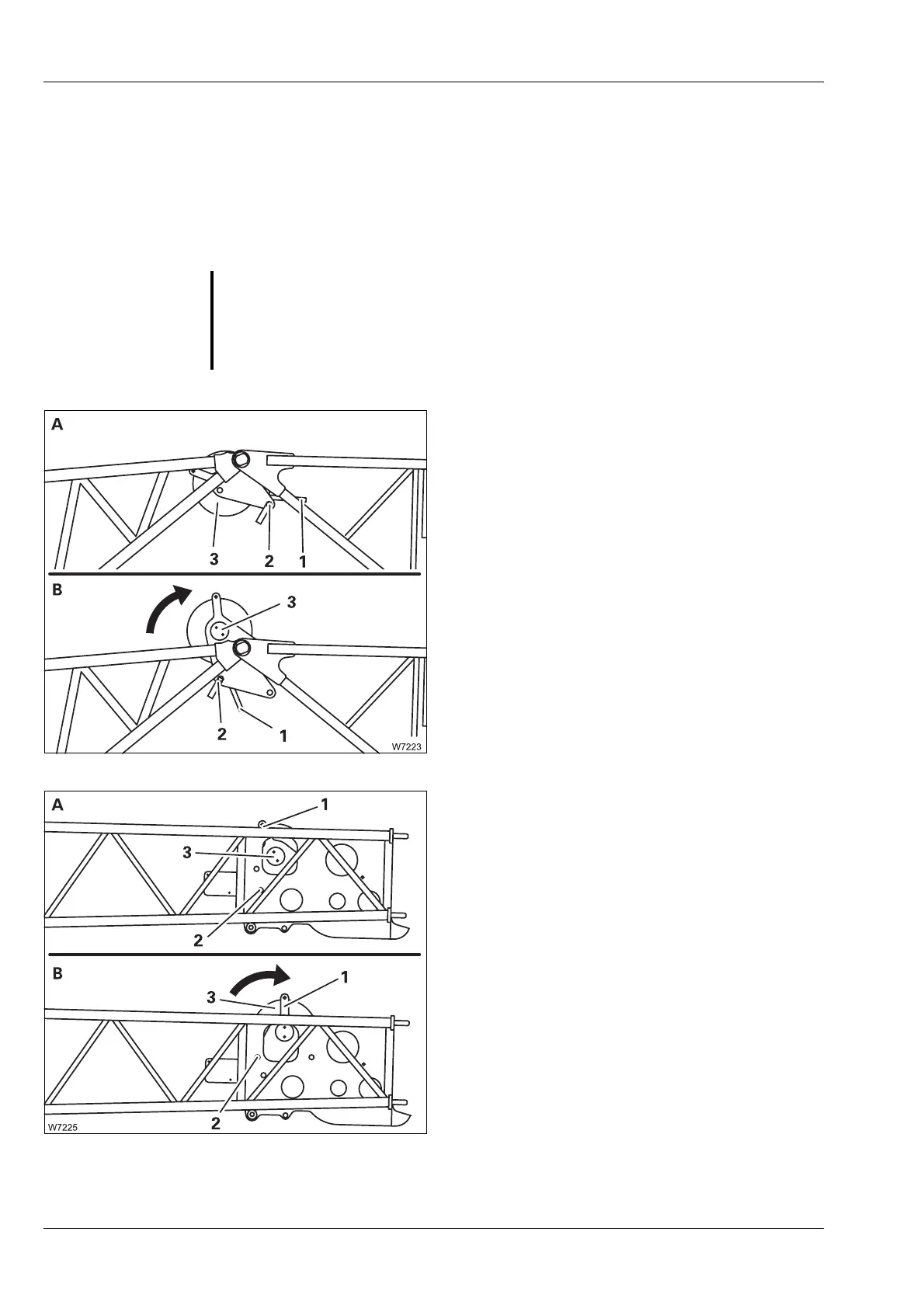

Rear deflection sheave
• (A) – Undo the retaining pin for the pin (2).
• Hold the deflection sheave tight by the han-
dle (1) and pull out the pin (2).
• (B) – Fold the deflection sheave (3) upwards
and fasten it in this position with the pin (2).
• Secure the pin (2) with the retaining pin.
Front deflection sheave
• (A) – Undo the retaining pin for the pin (2).
• Hold the deflection sheave tight by the strut
(1) and pull out the pin (2).
• (B) – Fold the deflection sheave (3) upwards
and fasten it in this position with the pin (2).
• Secure the pin (2) with the retaining pin.
G
Risk of crushing
When pulling the pins, always hold the
Rear deflection sleeve tight by the
handle and the
Front deflection sheave by the strut.
Your fingers might get crushed if you hold the sheave by the side plate.
