Manitowoc GROVE GMK 5095 User Manual

Swing-away lattice
3.2 Short description of the operating elements
3 - 6 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

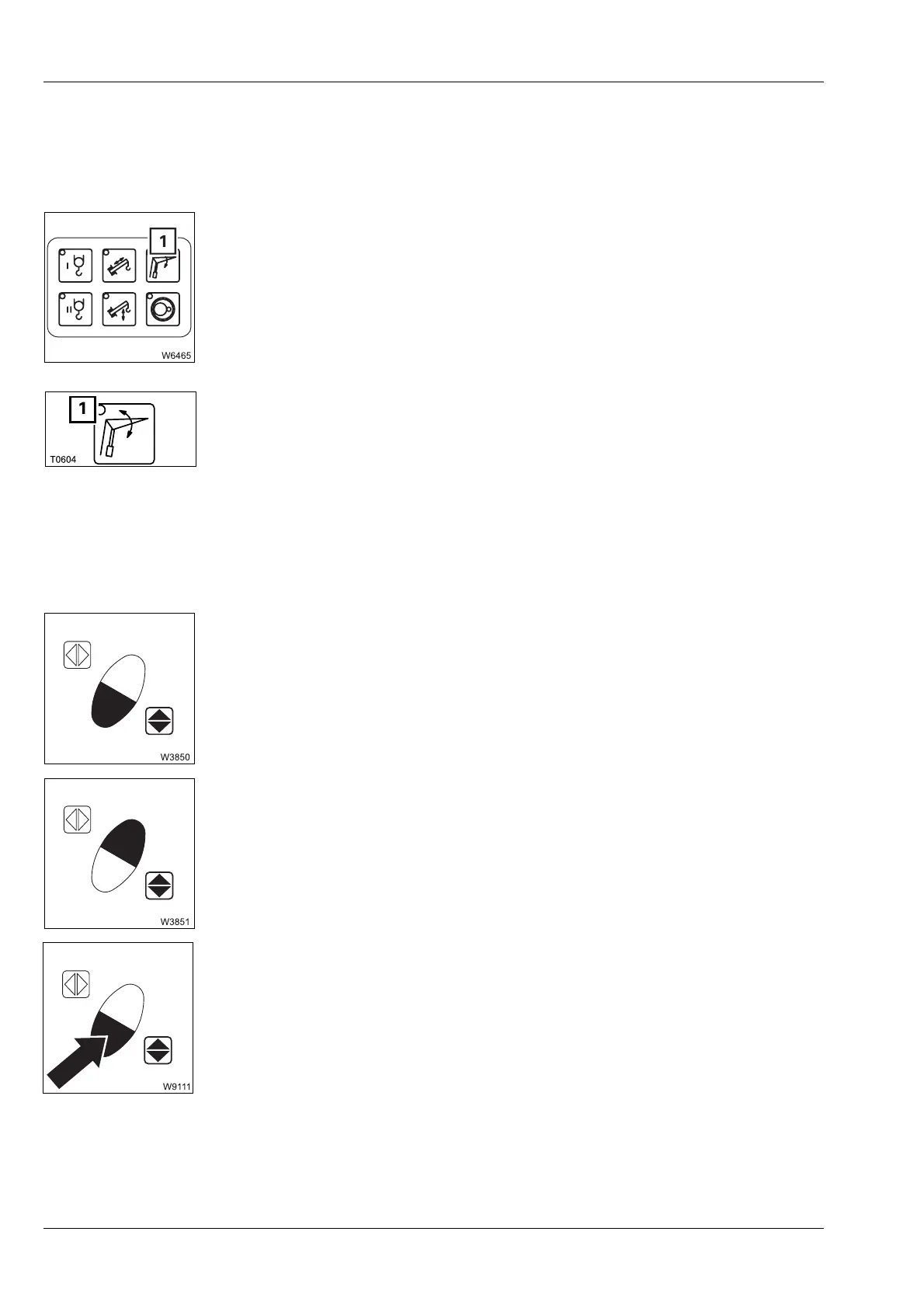

3.2.3 Operating elements on the hand-held control
This section only applies to the derricking swing-away lattice.
The
Derrick lattice extension button (1) is active if the derricking swing-away
lattice is electrically connected.
Pre-select and then press the required combination of buttons.
– Pre-selection on: Press button once – lamp (1) goes on – pre-
selection on until another pre-selection is
made
– Pre-selection off: Press a non-allocated combination of but-
tons
– Pre-selected function on: Press the required button combination
– Pre-selected function off: Release one of the buttons or both of them
– Raise swing-away lattice: Press the displayed button combination
– Lower swing-away lattice: Press the displayed button combination
– Faster movements: Press button further in
– Slower movements: Press button to a lesser degree
