Heavy load lattice extension
6.2 Rigging the heavy load lattice extension
Lattice extension operating instructions 3 112 441 en 6 - 15
GMK 4100/4100-L/5095
11.01.2008
6.2.6 Folding in / out rope attachment point

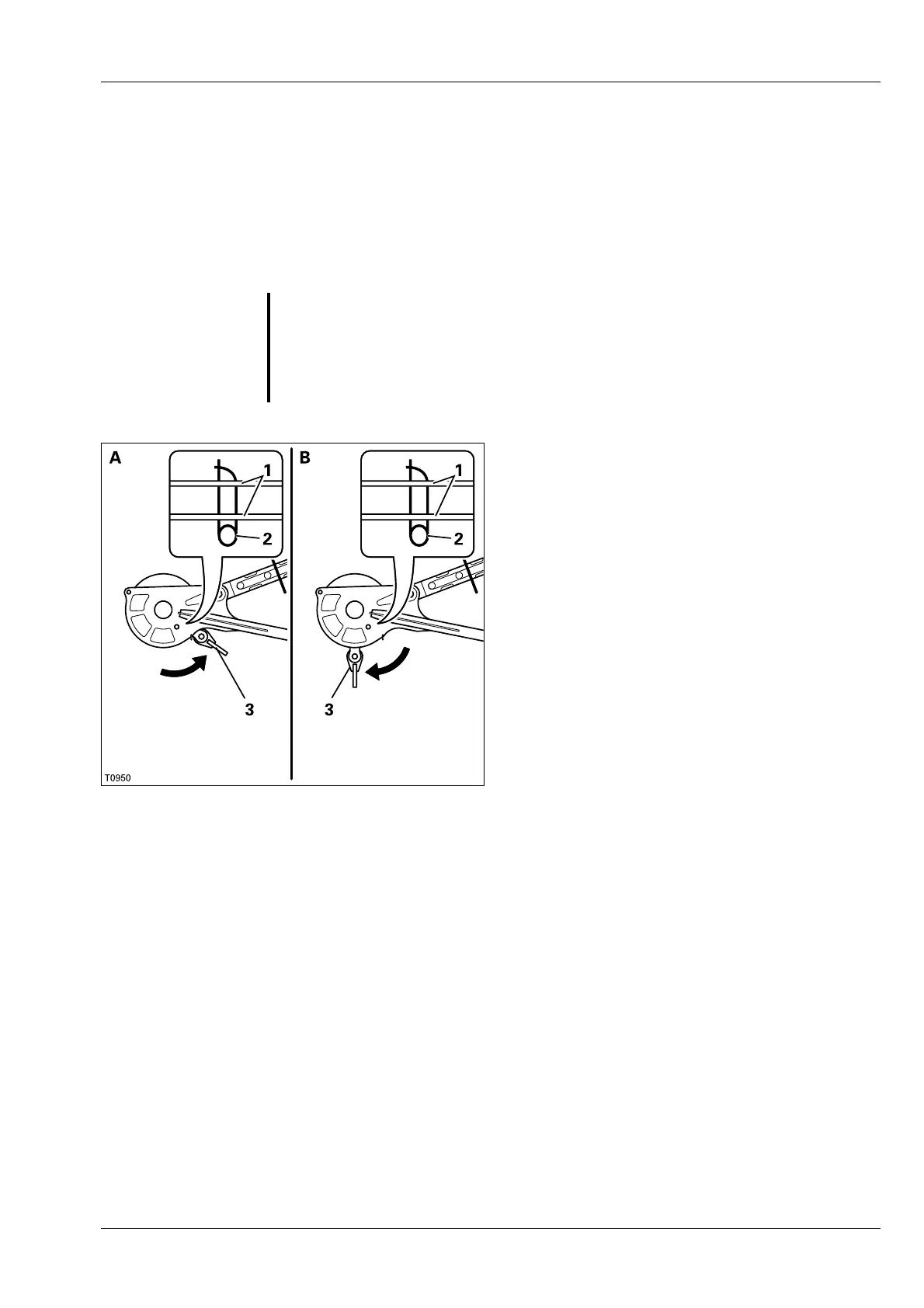

(A) – Folding in rope attachment point
• Remove the retaining pin (2) from the holder
(1).
• Fold the rope attachment point (3) upwards.
• Secure the rope attachment point in place
(3) by inserting the retaining pin into the
holder (1).
(B) – Folding out rope attachment point
• Hold on to the rope attachment point (3) and
remove the retaining pin (2).
• Fold the rope attachment point (3) down-
wards.
• Insert the retaining pin into the holder (1).
Folding out: – for operation with a double-reeved hoist rope.
Folding in: – for operation with a double-reeved hoist rope and for
transport.
S
Risk of damage when rope attachment point is folded out
Always make sure to fold in the rope attachment point after completing
operation with a double-reeved hoist rope. This prevents the rope attach-
ment point from being damaged during operation with a single-reeved
hoist rope or during transport.
