Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 73
GMK 4100/4100-L/5095
11.01.2008
3.4.17 Air traffic control light – electrical connection
The air traffic control light (additional equipment) is installed on the ane-
mometer holding rod.
Establishing the
electrical connec-
tion

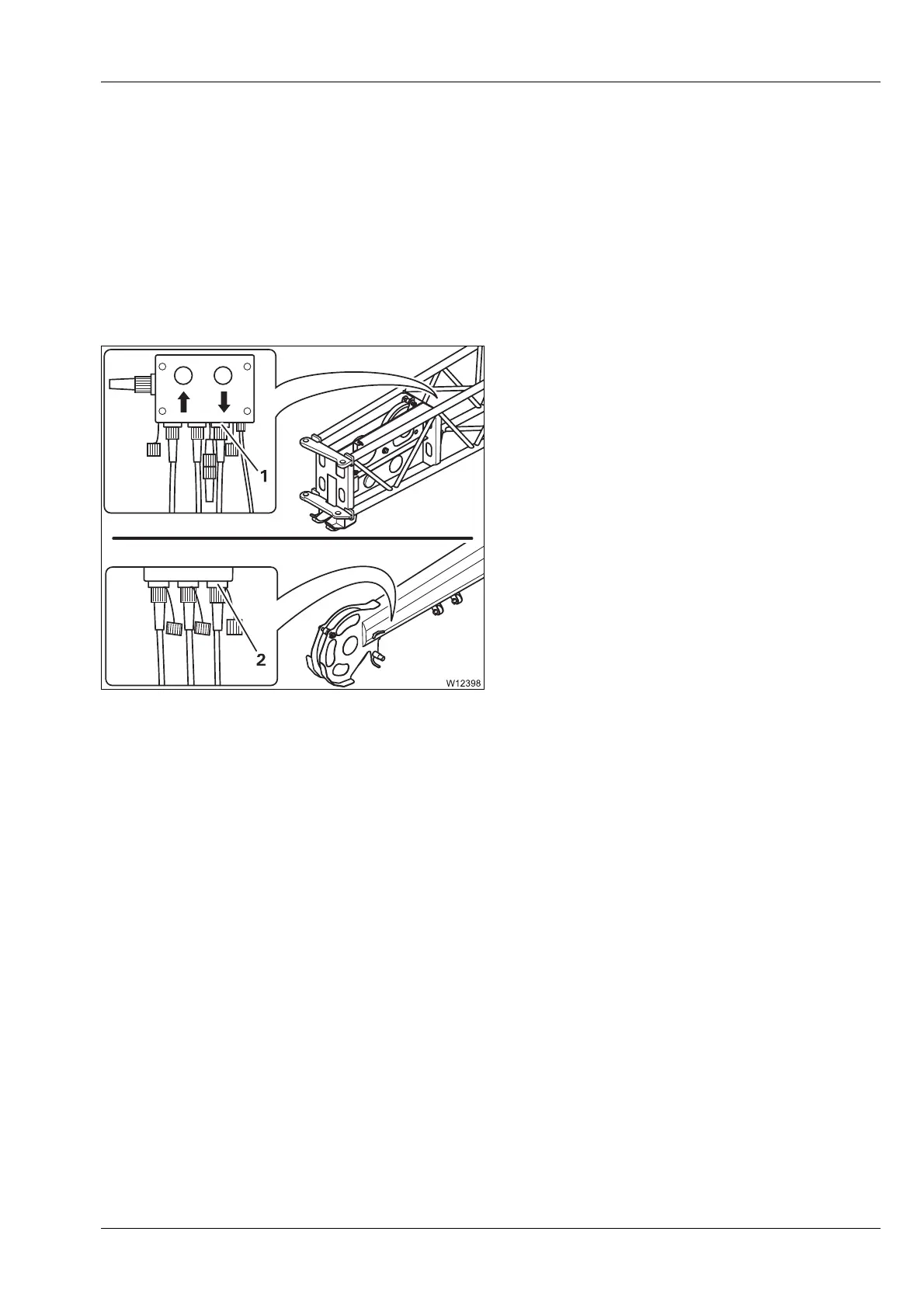

On the 10 m (33 ft) swing-away lattice:
• Install the anemometer; à p. 3 - 71.
• Undo the protective cap for the socket (1).
• Put the plug of the air traffic control light
into the socket (1).
On the 17 m (56 ft) swing-away lattice:
• Install the anemometer; à p. 3 - 71.
• Undo the protective cap for the socket (2).
• Put the plug of the air traffic control light
into the socket (2).
r
• Switch on the air traffic control light, à Operating instructions GMK 4100/
4100-L/5095.
