For operations planning

2.2 Swing-away lattice

2 - 6 3 112 441 en Lattice extension operating instructions

GMK 4100/4100-L/5095

11.01.2008

2.2.5 Transport

Observe the notes on Transport and Slinging points; à p. 2 - 2.

• Check whether all the required connections

for transport condition are established;

à Transport condition with removed swing-

away lattice

, p. 3 - 29.

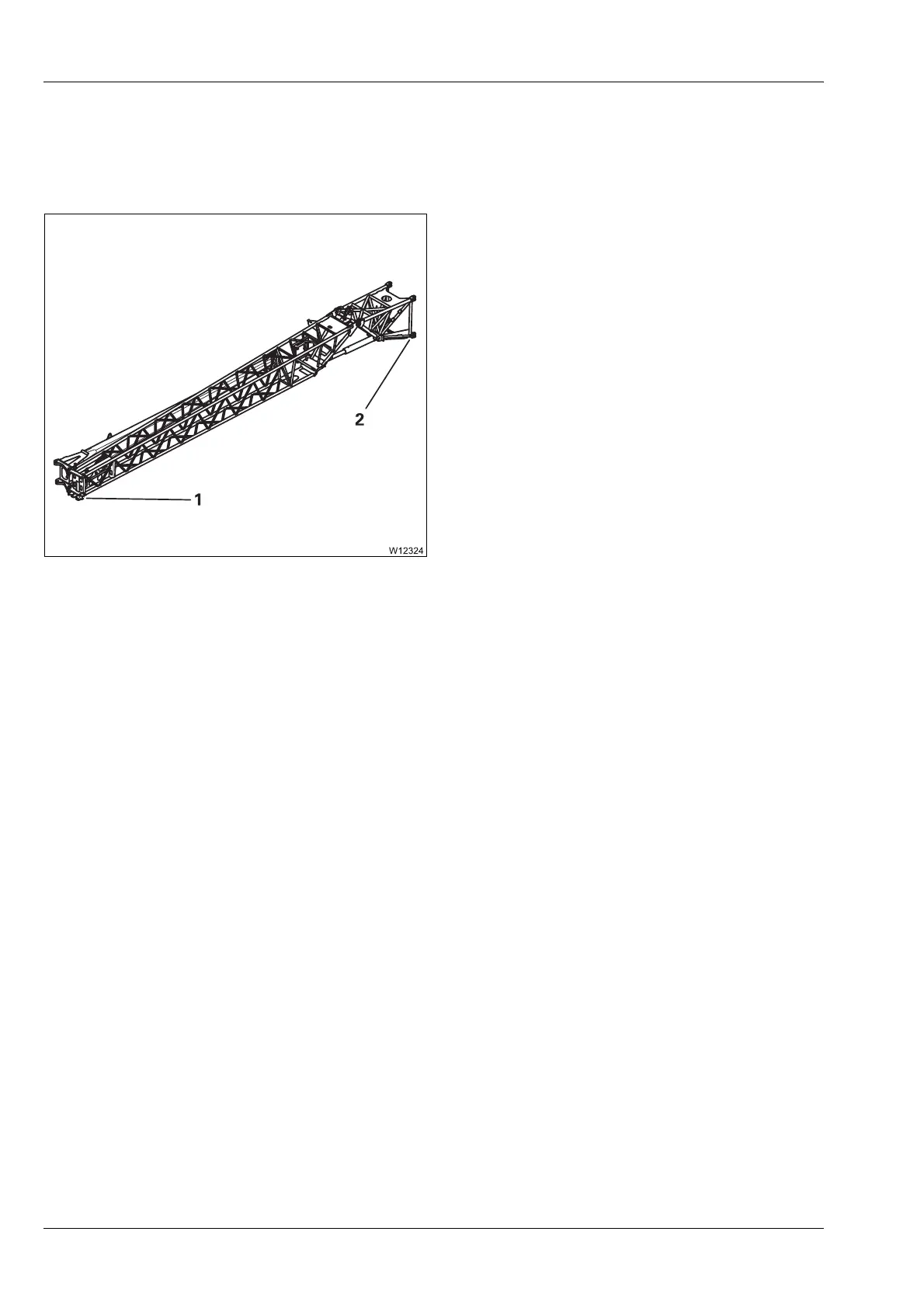

• For transportation, place the lattice exten-

sion on the skid (1) at the front and onto the

lower connecting points (2) at the rear.

• Always secure the lattice extension on the

transport vehicle with belts to prevent slip-

ping and overturning.
