Manitowoc GROVE GMK 5095 User Manual

Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 79
GMK 4100/4100-L/5095
11.01.2008

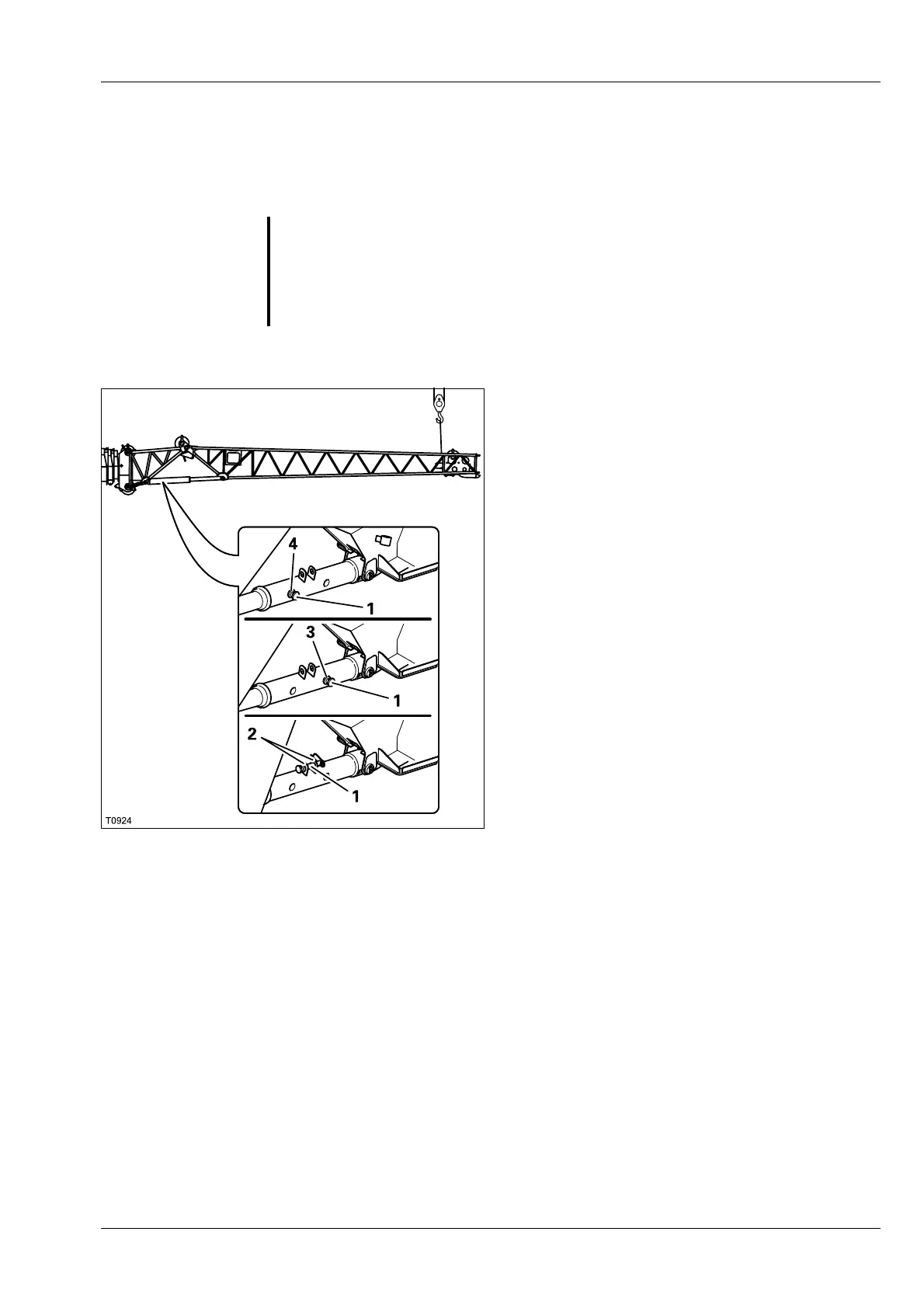

3.4.19 Setting the angle – with an auxiliary crane
This section only applies to the inclinable swing-away lattice.
• Raise the swing-away lattice with an auxil-
iary crane.
• Pull the pin (1).
• Insert the pin (1) for:
• Secure the pin with a retaining pin.
• Lower or raise the swing-away lattice.
• Remove the sling gear.
If the swing-away lattice now touches the
ground at the set angle, the angle will be set
automatically when the main boom is raised.
G
Risk of accidents due to the swing-away lattice folding down
Always secure the swing-away lattice with an auxiliary crane or by setting
it down on the ground before knocking out the pin for the inclination.
This will prevent the swing-away lattice from suddenly folding down and
injuring persons.
0° angle in the front bore (4).
20° angle in the rear bore (3).
40° angle in the holder (2).
