Manitowoc GROVE GMK 5095 User Manual

Heavy load lattice extension
6.2 Rigging the heavy load lattice extension
6 - 6 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

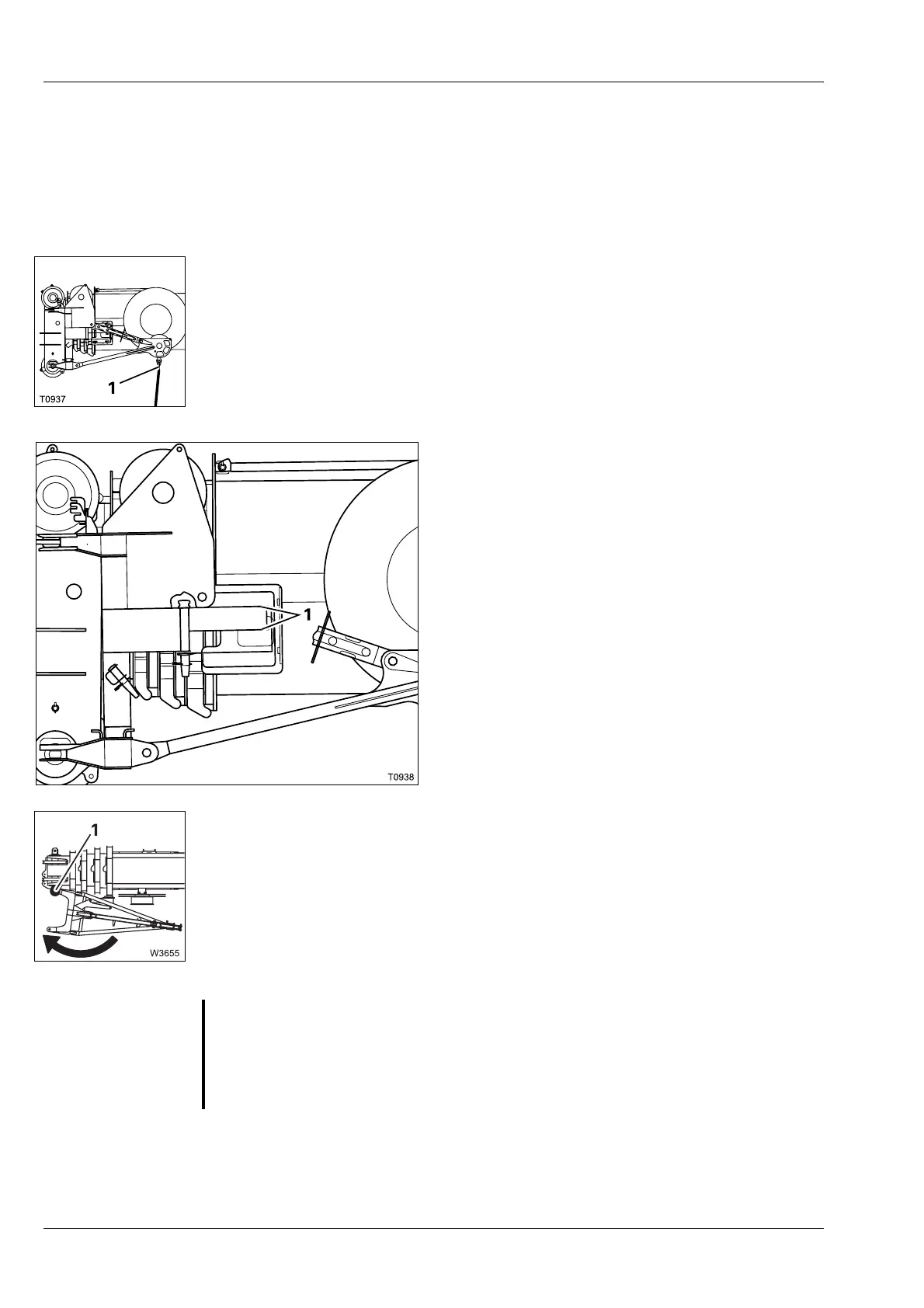

6.2.2 Rigging in working position
Prerequisites:
– The heavy load lattice extension is in transport position.
• Attach the guide rope to the rope attachment point (1); à p. 6 - 16.
• Pull the pin out of the bearing point (1).
• Swivel the heavy load lattice extension onto the main boom until the
bearing points (1) and the boreholes align.
G
Risk of accidents due to the heavy load lattice extension falling down
Always insert the pin onto the lateral holding device first before removing
the pins on the main boom head. This way, you can avoid the heavy load
lattice extension having no connection with the main boom and falling
down.
