Auxiliary single-sheave boom top
5.2 Rigging the auxiliary single-sheave boom top
5 - 4 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

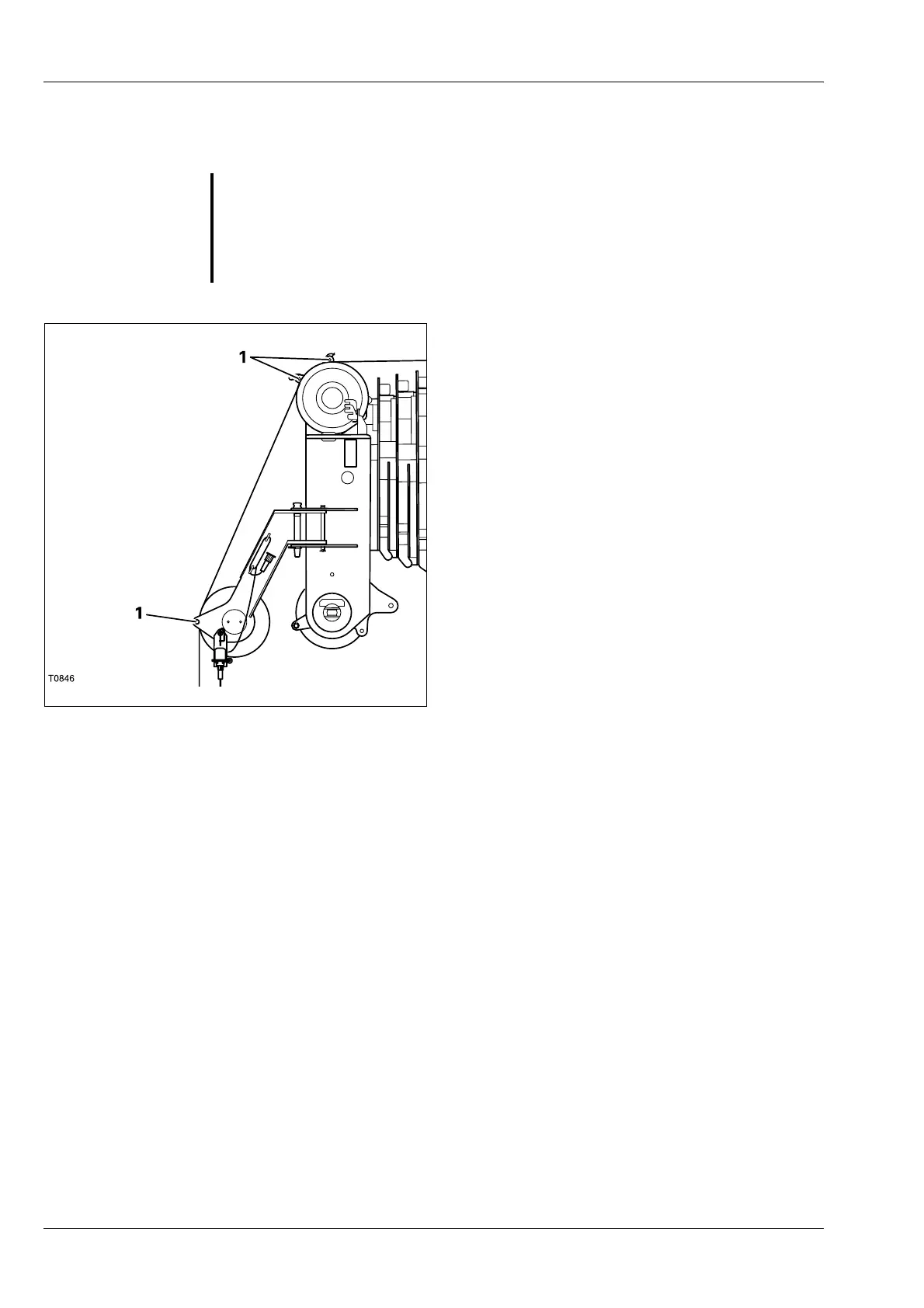

5.2.2 Applying and removing the hoist rope
Applying the hoist rope
• Remove the sheaves (1).
• Lay the hoist rope over the left head sheave
of the main boom.
• Put all sheaves (1) back in place and secure
them with retaining pins.
• Attach the hook tackle or the hook block.
Removing the hoist rope
• Unreeve the hook block.
• Remove the sheaves (1).
• Take the hoist rope off the left head
sheave of the main boom.
• Put all sheaves (1) back in place and secure
them with retaining pins.
G
Risk of accidents due to falling parts
Secure the sheaves and rods always with retaining pins when securing the
hoist rope.
This will prevent elements from becoming loose, falling down and injuring
persons.
