Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 75
GMK 4100/4100-L/5095
11.01.2008
3.4.18 Derricking the swing-away lattice
H
This section only applies to the derricking swing-away lattice.
• In order to enable the derricking of the swing-away lattice, the SLI code
must be set for the current rigging mode;
à Setting the SLI, p. 3 - 87.

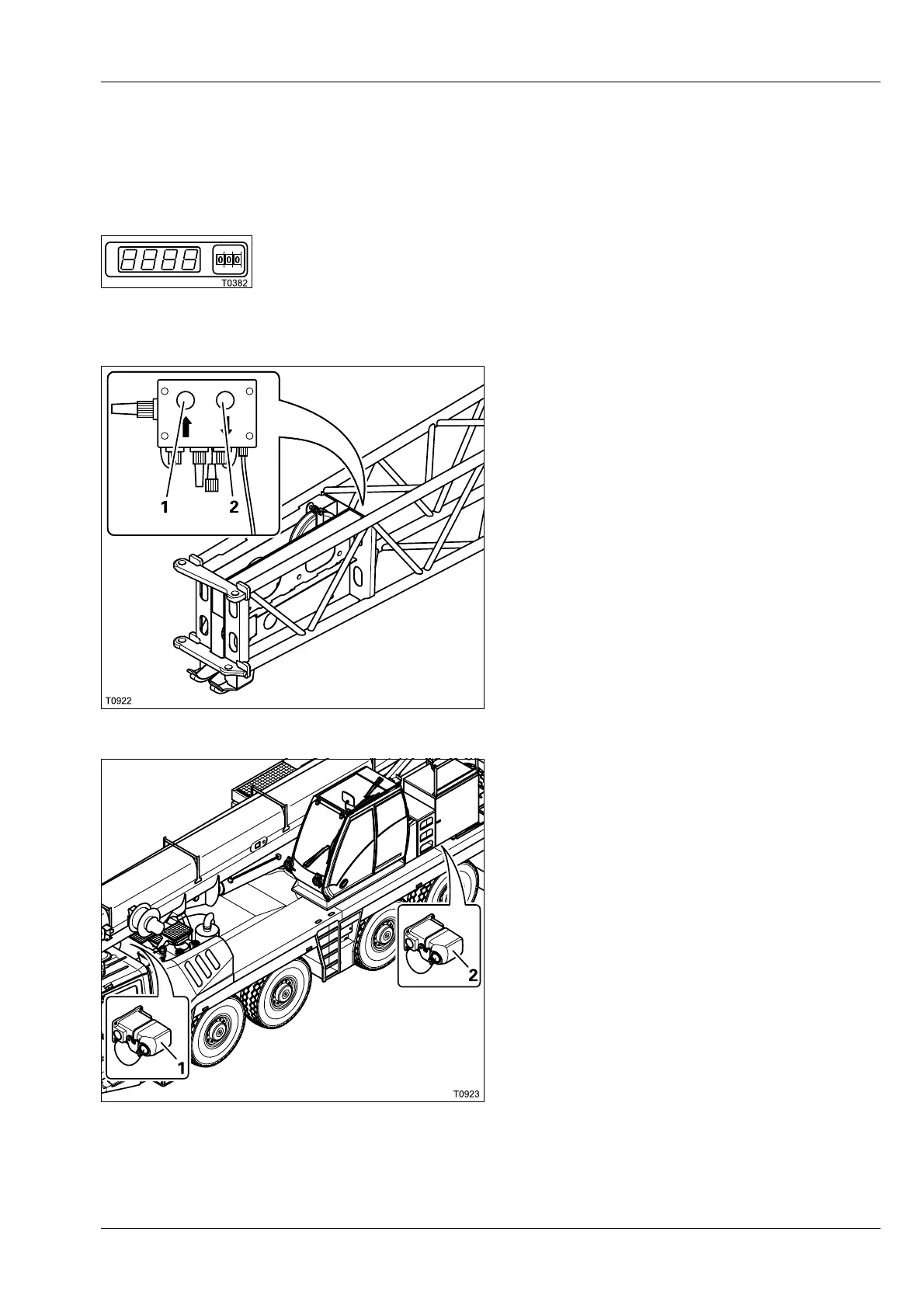

When rigging
With the button unit
The swing-away lattice is derricked as long as
the corresponding button is pressed or until
the end position or a switch-off point is
reached.
With the hand-held control
Derricking the swing-away lattice is enabled at
the sockets (1) and (2).
It does not make sense to connect the hand-
held control to the socket (2) for rigging since
you cannot see the folded swing-away lattice
from there.
This socket (2) is intended for emergency
operation.
• Connect the hand-held control to the
socket (1).
s
– To raise: press button (1)
– To lower: press button (2)
