2.3 Boom extension
2 - 8 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
2.3.2 Identification
Observe the notes on Identification; à p. 2 - 1.

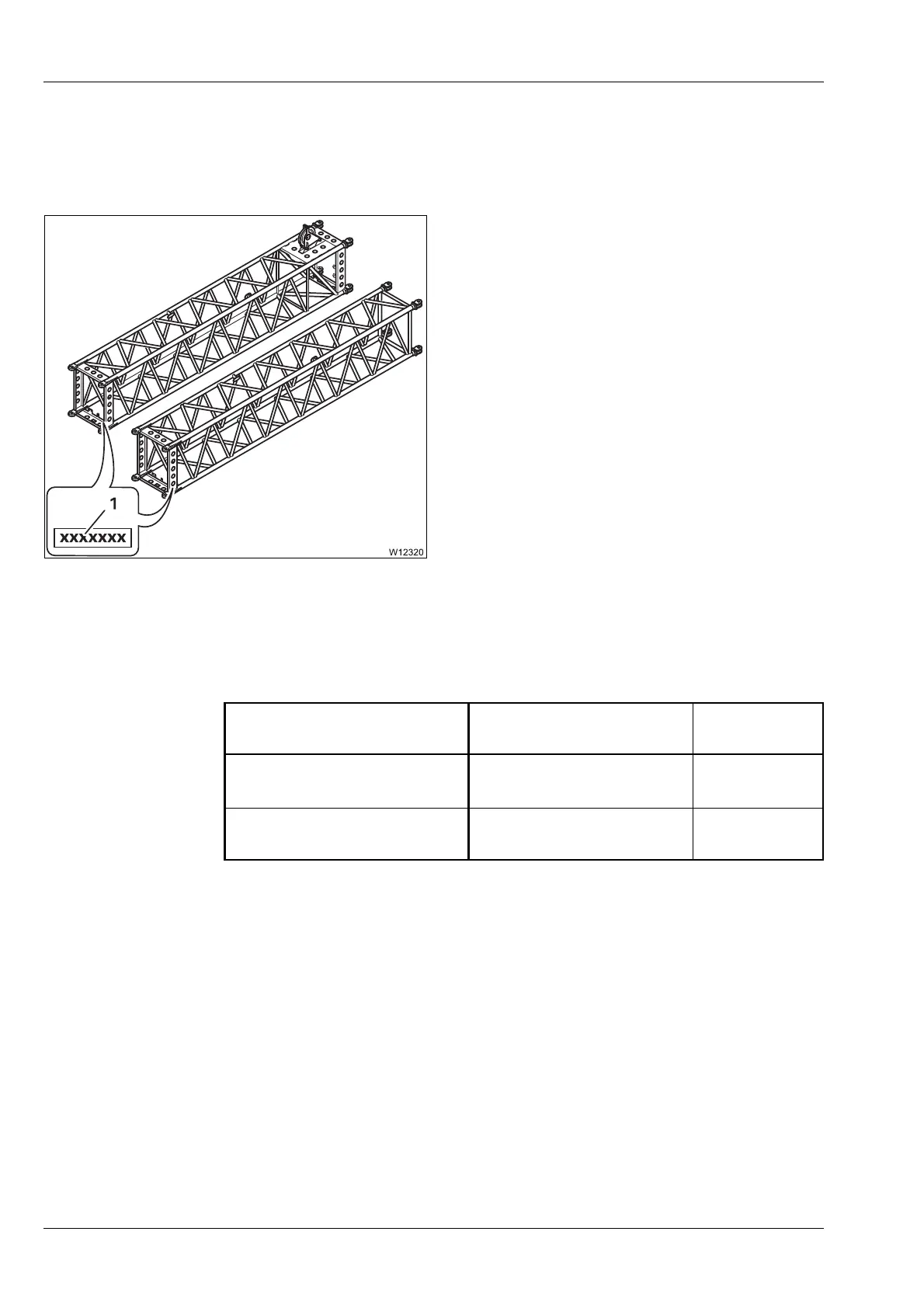

In order to identify the parts of the boom
extension, they are marked with the serial
number (1) of the truck crane.
2.3.3 Transport dimensions and weights
Description
Length x width x height
in m (ft)
Weight in kg
(lbs)
Section 3
(with deflection sheave)
5.20 x 0.90 x 1.20
(17.1 x 3.0 x 4.0)
460
(1,020)
Section 4 5.20 x 0.90 x 1.20
(17.1 x 3.0 x 4.0)
350
(775)
