Manitowoc GROVE GMK 5095 User Manual

Heavy load lattice extension
6.2 Rigging the heavy load lattice extension
Lattice extension operating instructions 3 112 441 en 6 - 3
GMK 4100/4100-L/5095
11.01.2008
6.2 Rigging the heavy load lattice extension
6.2.1 Rigging in transport position
Prerequisites:
– The heavy load lattice extension is in working position.
– The heavy load lattice extension is rigged at a 0° angle;
à p. 6 - 8.
– The hoist rope is unreeved.

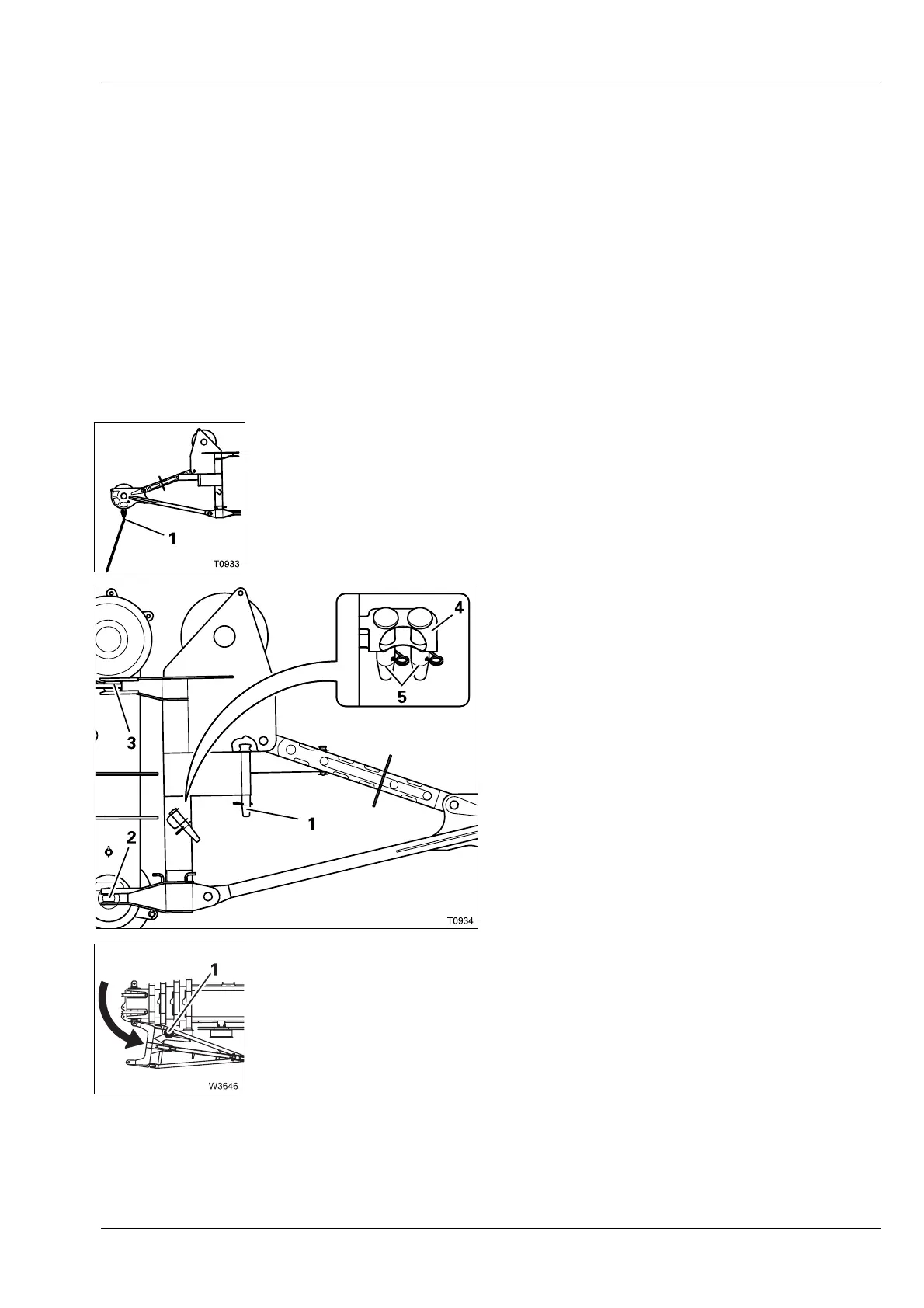

• Attach the guide rope to the rope attachment point (1); à p. 6 - 16.
• Pull the pin (1) out of the bearing point.
• Pull the pins (5) out of the bearing points (2)
and (3) on the main boom head on the right.
• Insert both pins into the holder (4) and
secure them with retaining pins.
• Swivel the heavy load lattice extension onto the main boom until the
bearing point (1) and the boreholes align.
s

Manitowoc GROVE GMK 5095 Specifications

General

Brand	Manitowoc
Model	GROVE GMK 5095
Category	Construction Equipment
Language	English
