Manitowoc GROVE GMK 5095 User Manual

Heavy load lattice extension
6.2 Rigging the heavy load lattice extension
6 - 4 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

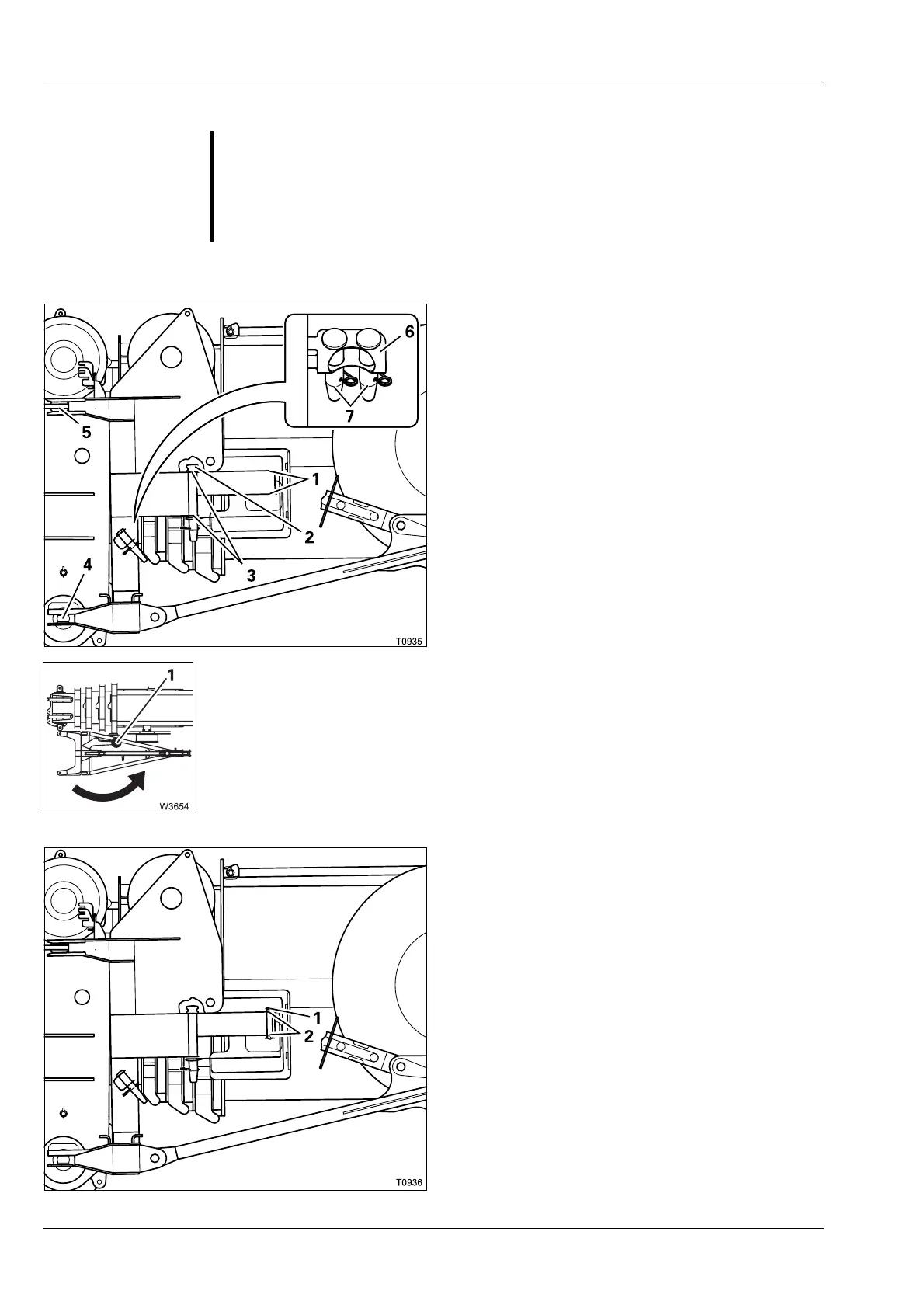

• Using the pin (2), fasten the heavy load lat-
tice extension to the bore hole (3).
• Secure the pin (2) with a retaining pin.
• Pull the pin out of the bearing point (1).
• Remove both pins (7) from bearing points
(4) and (5).
• Insert both pins (7) into the holder (6) and
secure them with retaining pins.
• Swivel the heavy load lattice extension until the bearing point (1) and the
boreholes align.
• Using the locking pins (1), fasten the heavy
load lattice extension to the bearing point (2).
• Secure the pin with a retaining pin.
G
Risk of accidents due to the heavy load lattice extension falling down
Always insert the pin onto the lateral holding device first before removing
the pins on the main boom head. This way, you can avoid the heavy load
lattice extension having no connection with the main boom and falling
down.
