Swing-away lattice
3.4 Description of the rigging work
3 - 74 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
Disconnecting
the electrical con-
nection
r
• Switch off the air traffic control light, à Operating instructions GMK 4100/
4100-L/5095.

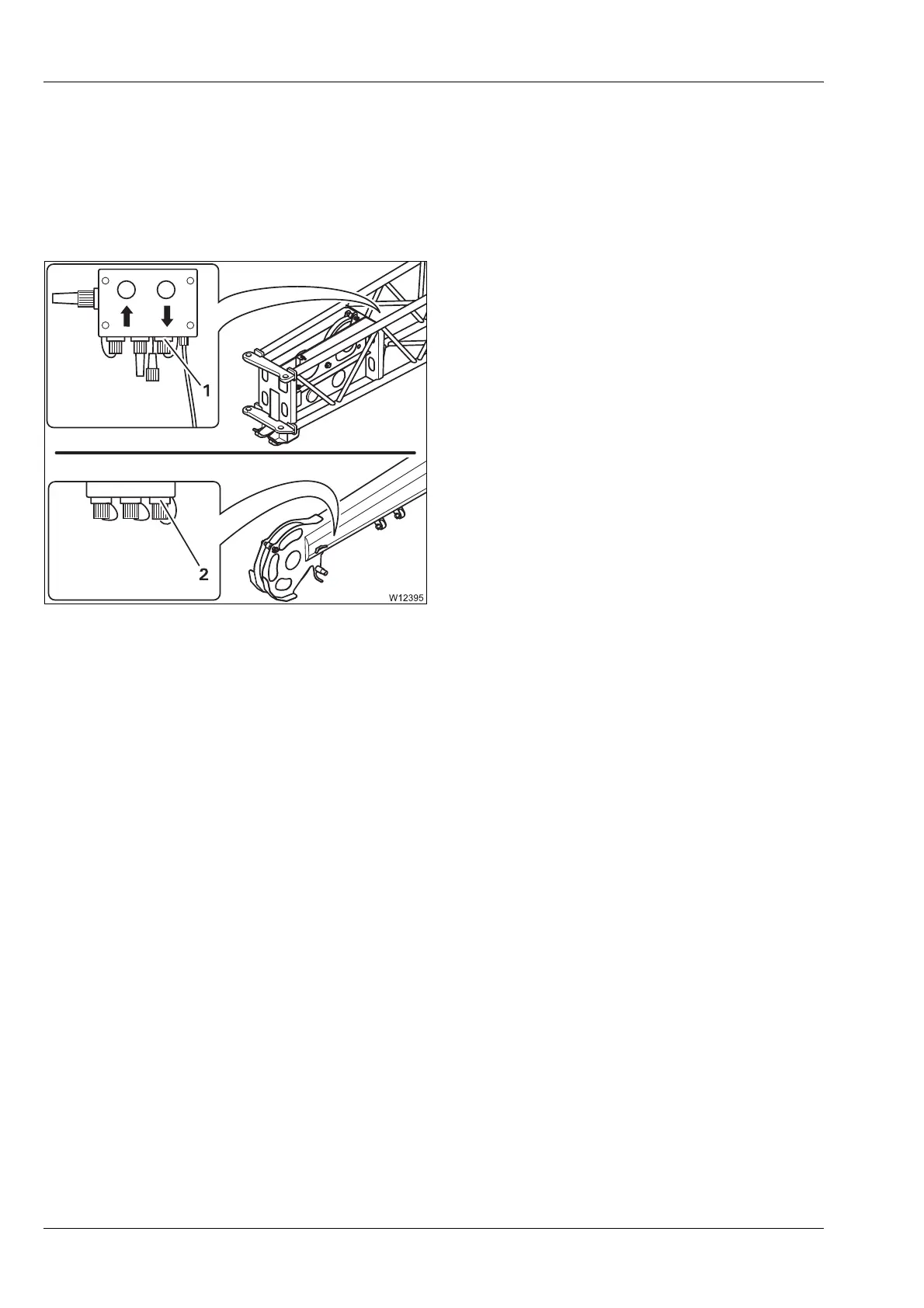

On the 10 m (33 ft) swing-away lattice:
• Pull the plug of the air traffic control light out
of the socket (1).
• Cover the socket (1) with the protective cap.
• Remove the anemometer; à p. 3 - 71.
On the 17 m (56 ft) swing-away lattice:
• Pull the plug of the air traffic control light out
of the socket (2).
• Cover the socket (2) with the protective cap.
• Remove the anemometer; à p. 3 - 71.
