Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 29
GMK 4100/4100-L/5095
11.01.2008
Transport condi-
tion with removed
swing-away lat-
tice

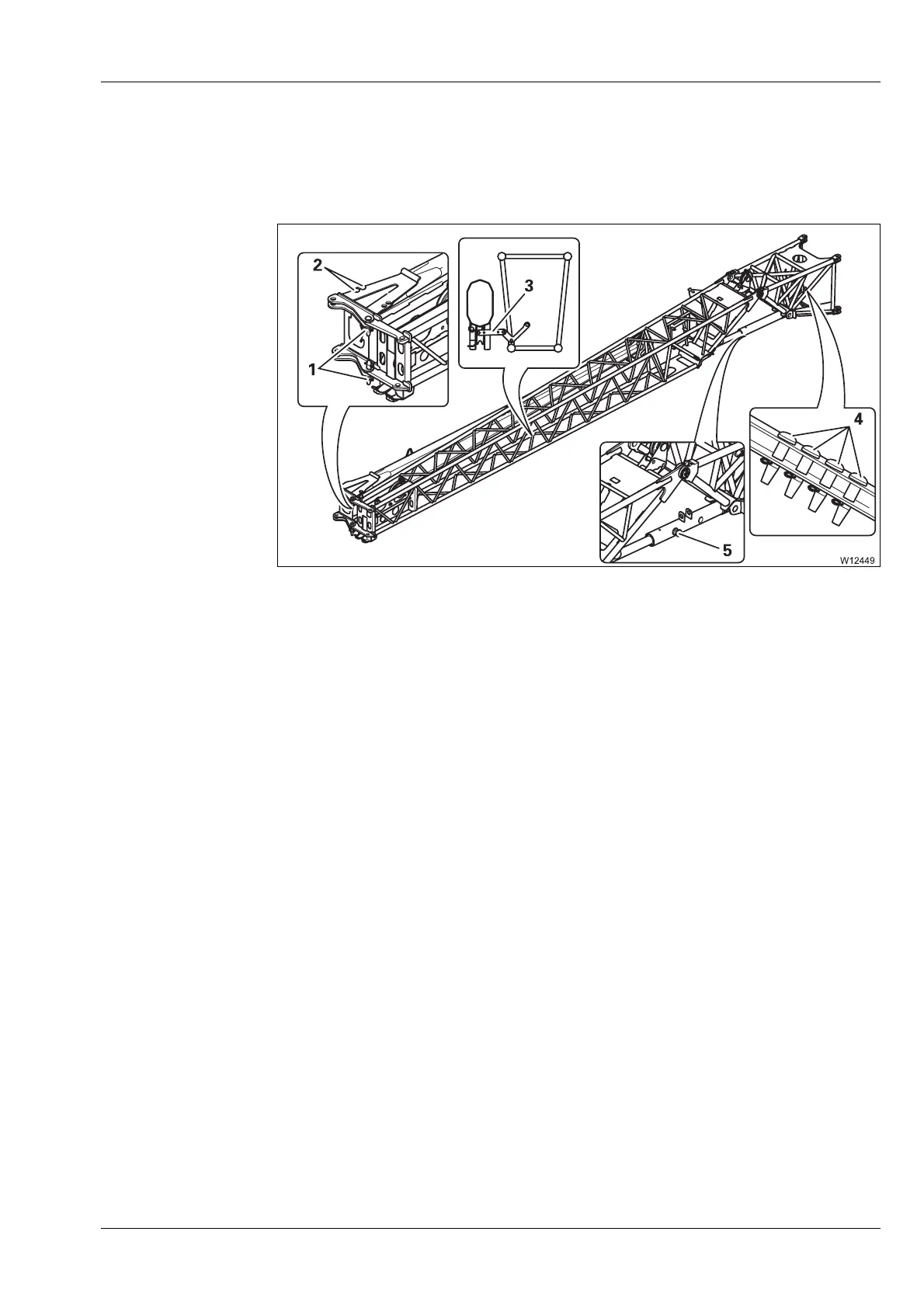

The transport condition is established once all of the following connections
have been established.
• Check the following connections and establish them if necessary.
–In the
Rear area, the connection (1) between section 1 and section 2 is
established;
à p. 3 - 48.
The unneeded pins (2) are secured in the retaining sheet.
–In the
Middle area, the connection (3) is in the position Section 1/
Section 2
; à p. 3 - 42.
– The pins (4) on section 1 are secured with retaining pins.
– When using manually inclinable lattice extension, the pin (5) is inserted
in the
0° angle position; à Setting the angle – with an auxiliary crane,
p. 3 - 79.
