Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 63
GMK 4100/4100-L/5095
11.01.2008
With 17 m (56 ft)
swing-away lattice
• First establish the electrical connection at the 10 m (33 ft) swing-away
lattice extension;
à p. 3 - 61.

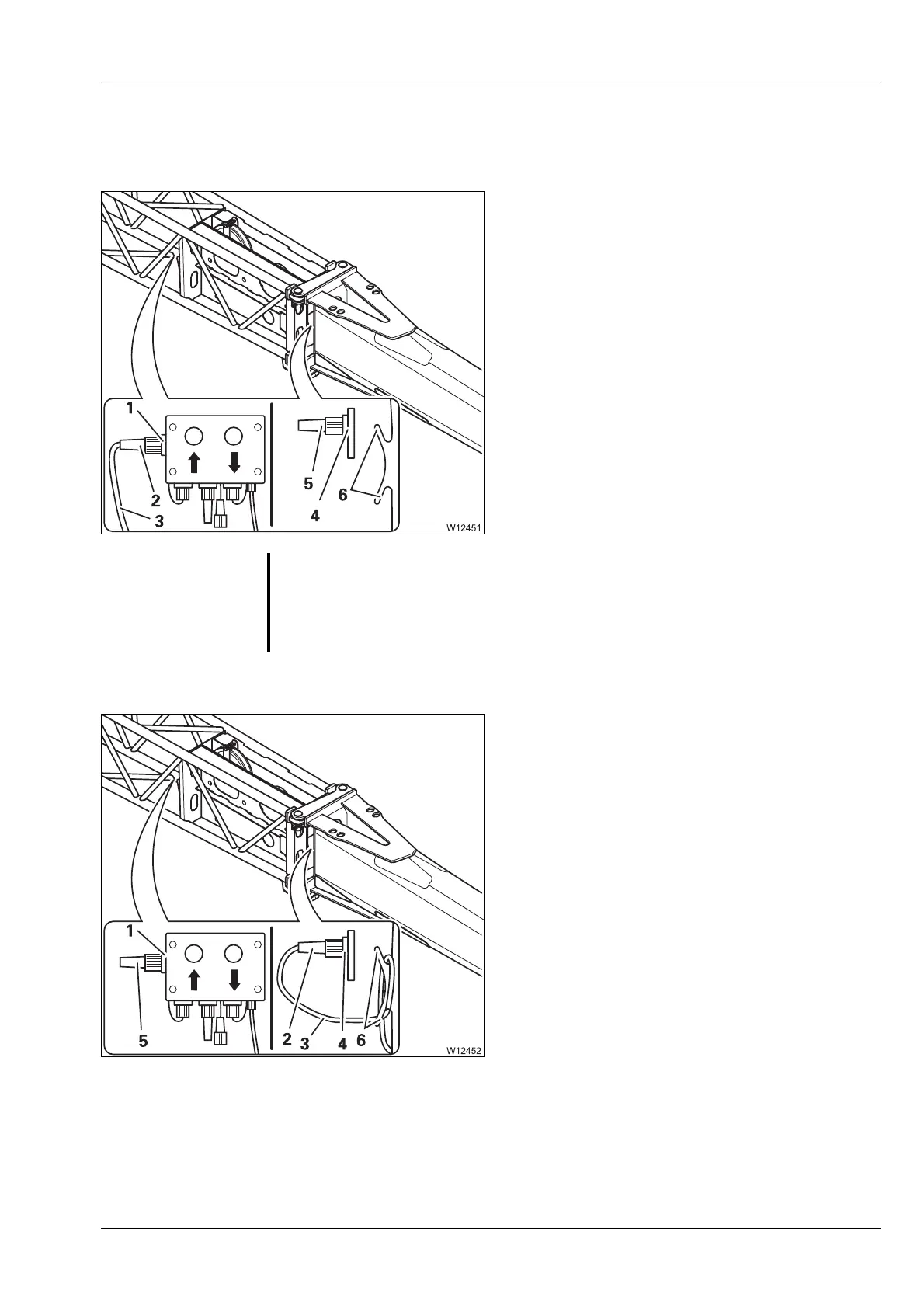

Establishing the electrical connection
• Remove the bridging plug (5) from the socket
(1) and plug it into the dummy socket (4).
• Unwind the cable (3) from the holder (6).
• Remove the plug (2) from the dummy socket
(4) and plug it into the socket (1).
• Wind up the cable (3) on the holder (6) until
it does not sag.
Disconnecting the electrical connection
• Remove the plug (2) from the socket (1) and
plug it into the dummy socket (4).
• Wind the cable (3) onto the holder (6).
• Remove the bridging plug (5) from the
dummy socket (4) and plug it into the
socket (1).
S
Risk of damage to the cable
Always disconnect the electrical connection before you swivel section 2 to
section 1. In this way you will prevent the cable from tearing during swivel-
ling.
