Swing-away lattice
3.4 Description of the rigging work
3 - 44 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
Connections in the
rear area
There are three different connections in the Rear area:
– The connection between section 2 and the main boom
– The connection between section 1 and the main boom
– The connection between section 1 and section 2
Connection between section 2 and the main boom
The connection must be disconnected:
– When rigging the 17 m (56 ft) swing-away lattice
– When removing the 17 m (56 ft) swing-away lattice
– When removing section 2
The connection must be established:
– When unrigging the 17 m (56 ft) swing-away lattice
– For operation with the 10 m (33 ft) swing-away lattice if section 2 is
installed
– When removing section 2

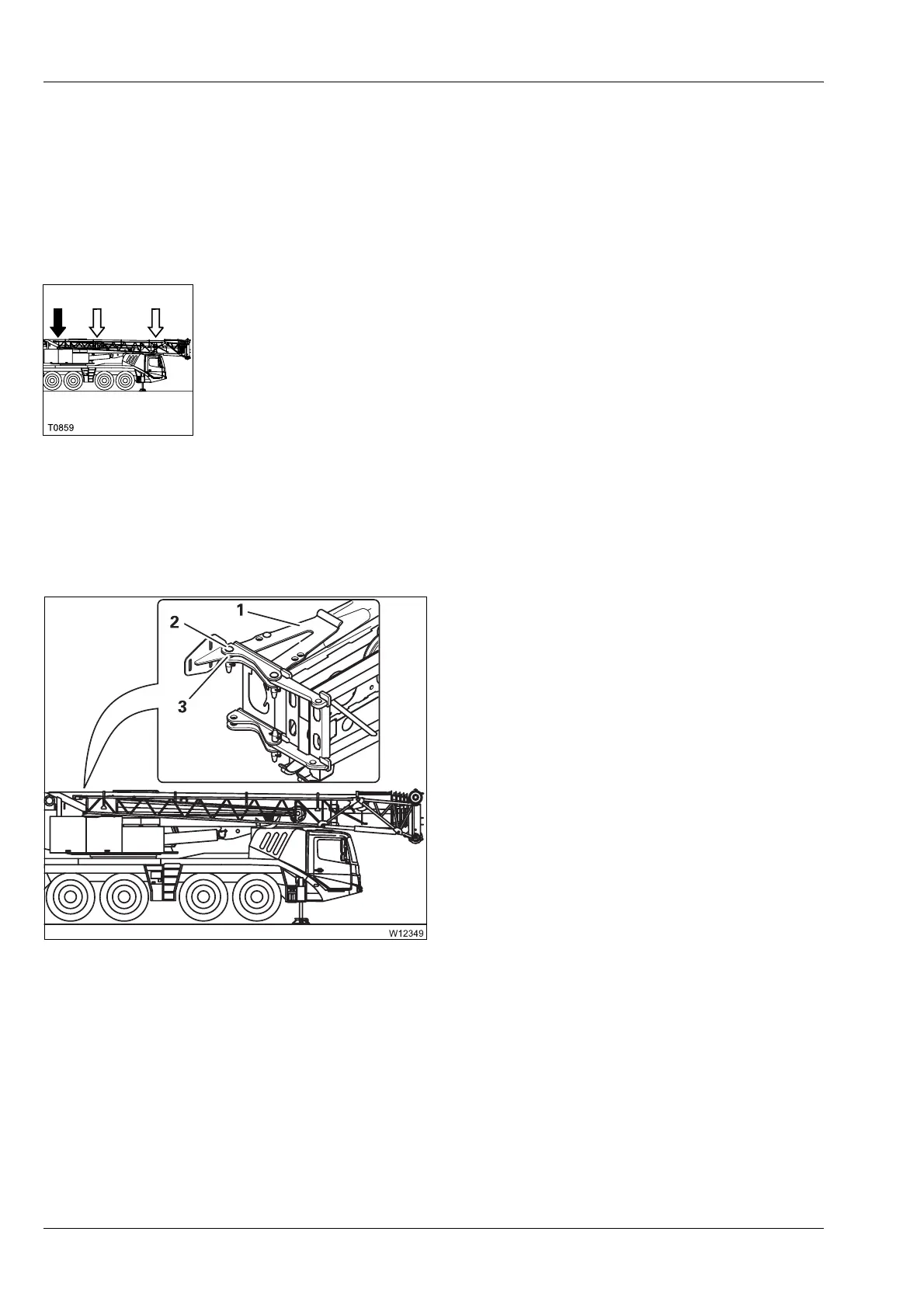

Establishing the connection
• Align the connecting point (3).
• Take the pin (2) out of the holder (1).
• Insert the pin (2) in the connecting point (3)
and secure it with the retaining pin.
