Auxiliary single-sheave boom top
5.2 Rigging the auxiliary single-sheave boom top
Lattice extension operating instructions 3 112 441 en 5 - 7
GMK 4100/4100-L/5095
11.01.2008
For removal
On the left side

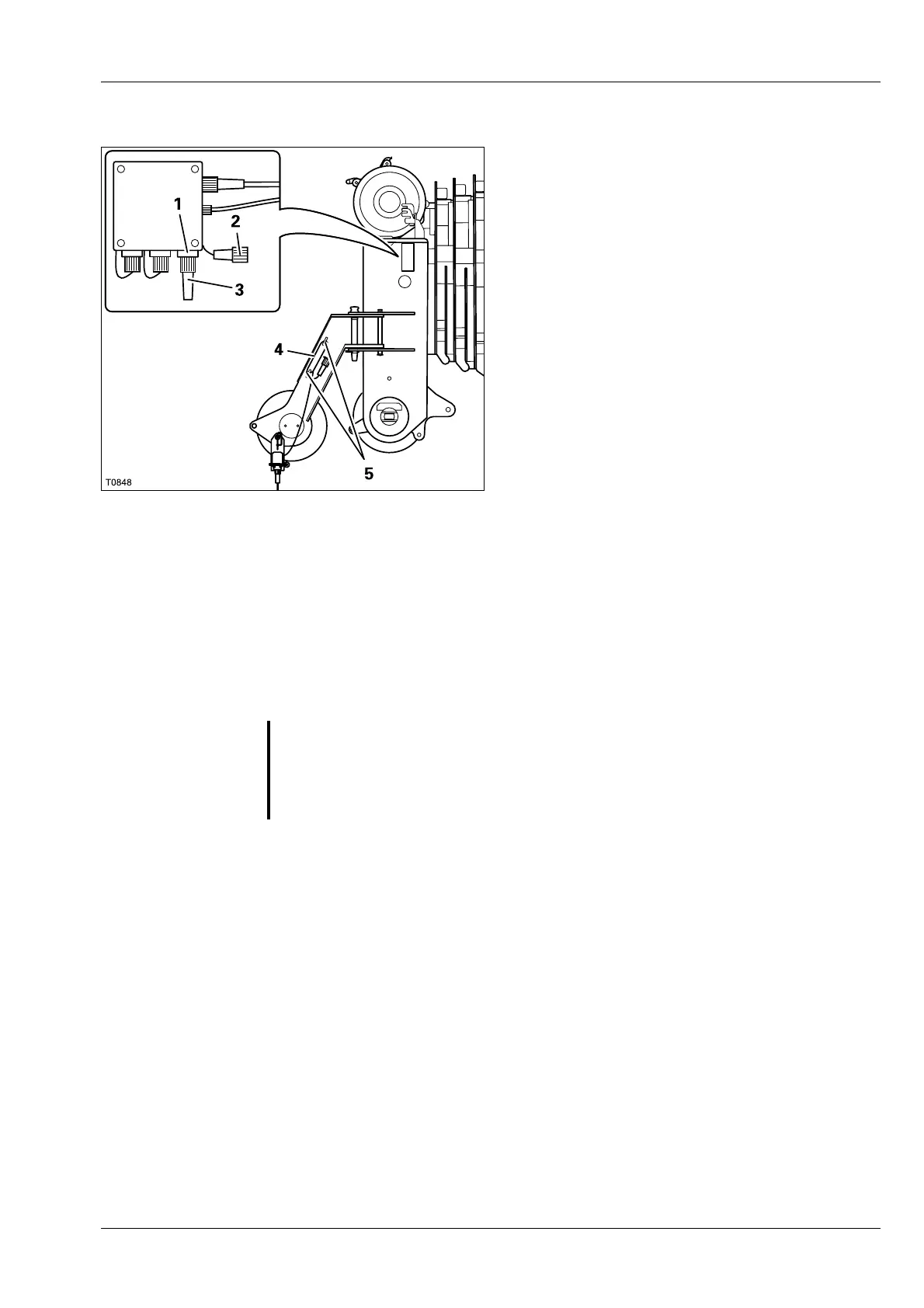

• Remove the plug (4) from the socket (1).
• Wind the connecting cable of the plug (4)
onto the holder (5).
• Remove the bridging plug (3) from the
dummy socket (2) and plug it into the
socket (1).
On the right-hand side
If no hook block is reeved on the main boom,
the bridging plug must be plugged into the
socket that is not used;
à Operating instruc-
tions
of the truck crane.
Anemometer Installation and removal
You must install the anemometer for operation with the auxiliary single-
sheave boom top.
You must remove the anemometer for on-road driving.
It is installed and removed in the same way as for operation with the main
boom;
à Operating instructions of the truck crane.
G
Risk of damage to the anemometer
Remove the anemometer for on-road driving.
This will prevent the anemometer from being damaged by wind (e.g. by
suction currents caused by oncoming traffic in tunnels).
