Heavy load lattice extension
6.2 Rigging the heavy load lattice extension
Lattice extension operating instructions 3 112 441 en 6 - 9
GMK 4100/4100-L/5095
11.01.2008

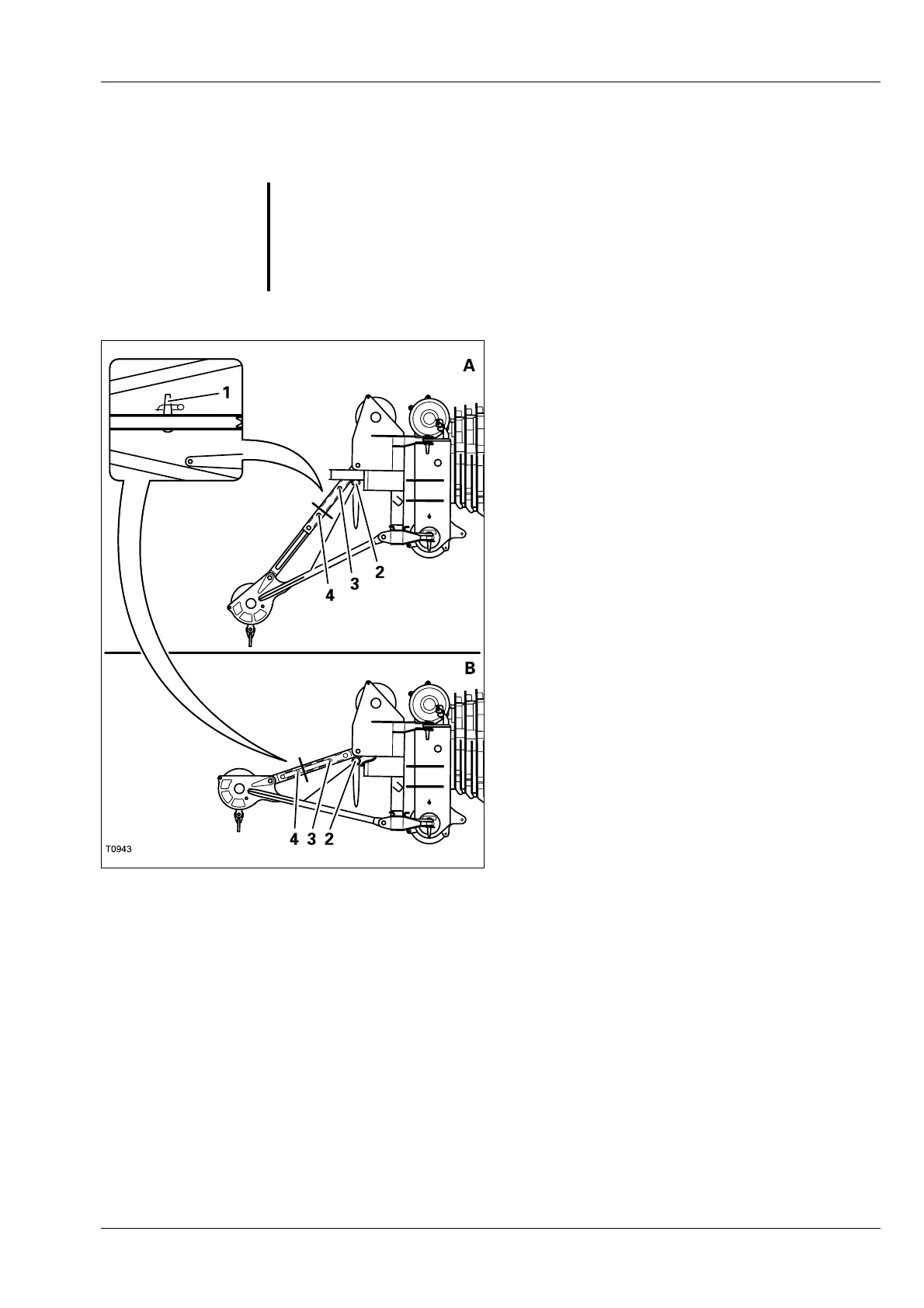

Setting angle
• Hook in the chain hoist; à p. 6 - 8.
• Lift the heavy load lattice extension with the
chain hoist until the pin (1) is relieved.
• Pull the pin (1) out of the bearing point.
(A) – 40° angle
• Lower the heavy load lattice extension as far
as possible using the chain hoist.
• Insert the pin (1) into the bearing point (4).
• Secure the pin (1) with a retaining pin.
(B) – 0° angle
• Lift the heavy load lattice extension as far as
it will go using the chain hoist (2).
• Insert the pin (1) into the bearing point (3).
• Secure the pin (1) with a retaining pin.
• Detach the chain hoist; à p. 6 - 8.
S
Risk of uncontrolled movements
When setting the angle, always raise or lower the heavy load lattice exten-
sion as far as possible and then insert the pin. This way, you can prevent
the heavy load lattice extension from being in a non-permissible position
without a fall-back guard.
