Maintenance
9.4 Description of the maintenance work
Lattice extension operating instructions 3 112 441 en 9 - 7
GMK 4100/4100-L/5095
11.01.2008
Lubricating joints

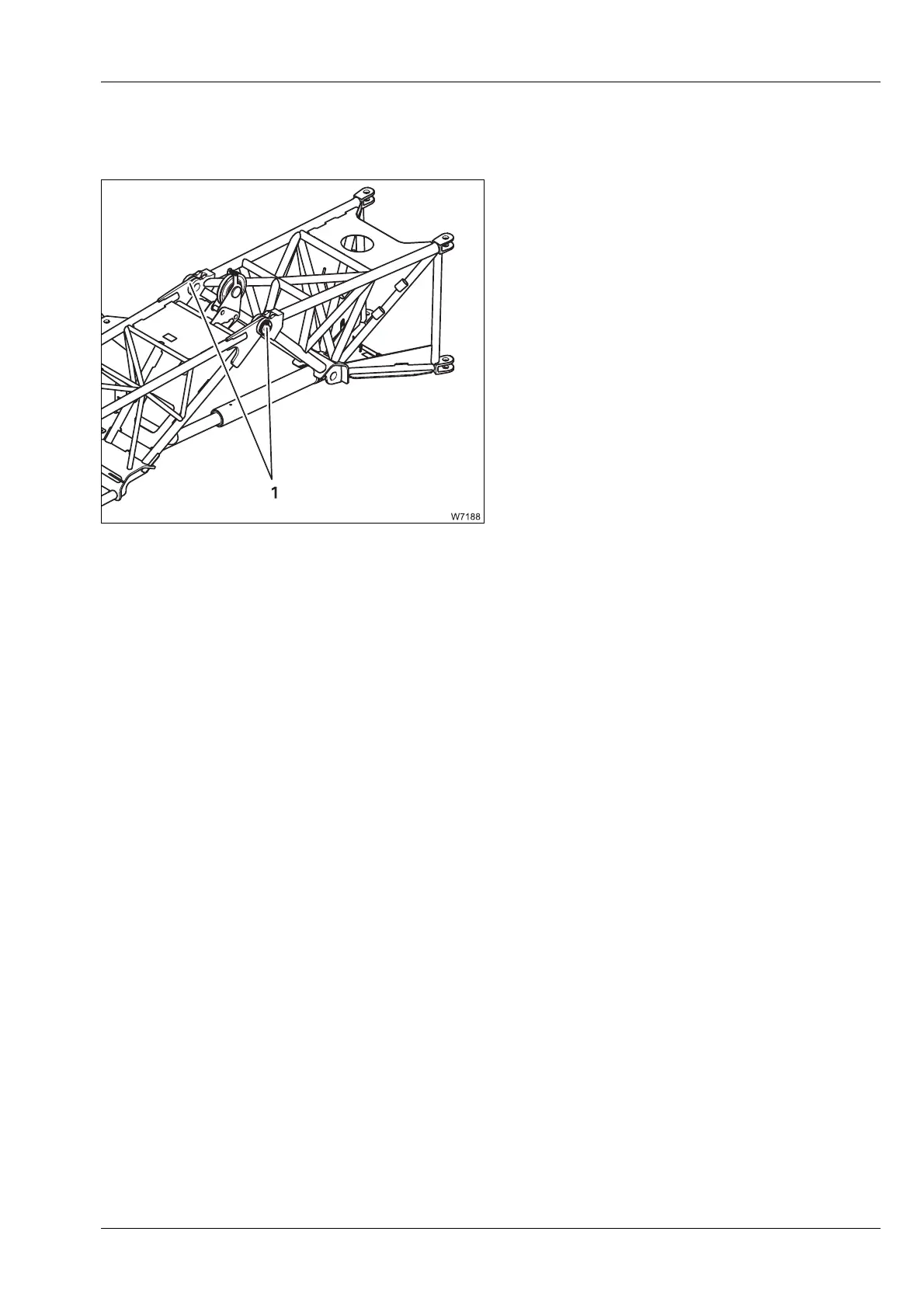

There is one lubricating nipple (1) in the pivot
point at section 1.
• Clean the grease nipples (1).
• Press grease into the lubrication nipple (1)
until new grease comes out of the lubrica-
tion point.
