Manitowoc Grove GRT9165 Service Manual

ELECTRICAL SYSTEM GRT9165 SERVICE MANUAL
3-6
Published 10-01-2020 Control # 699-00

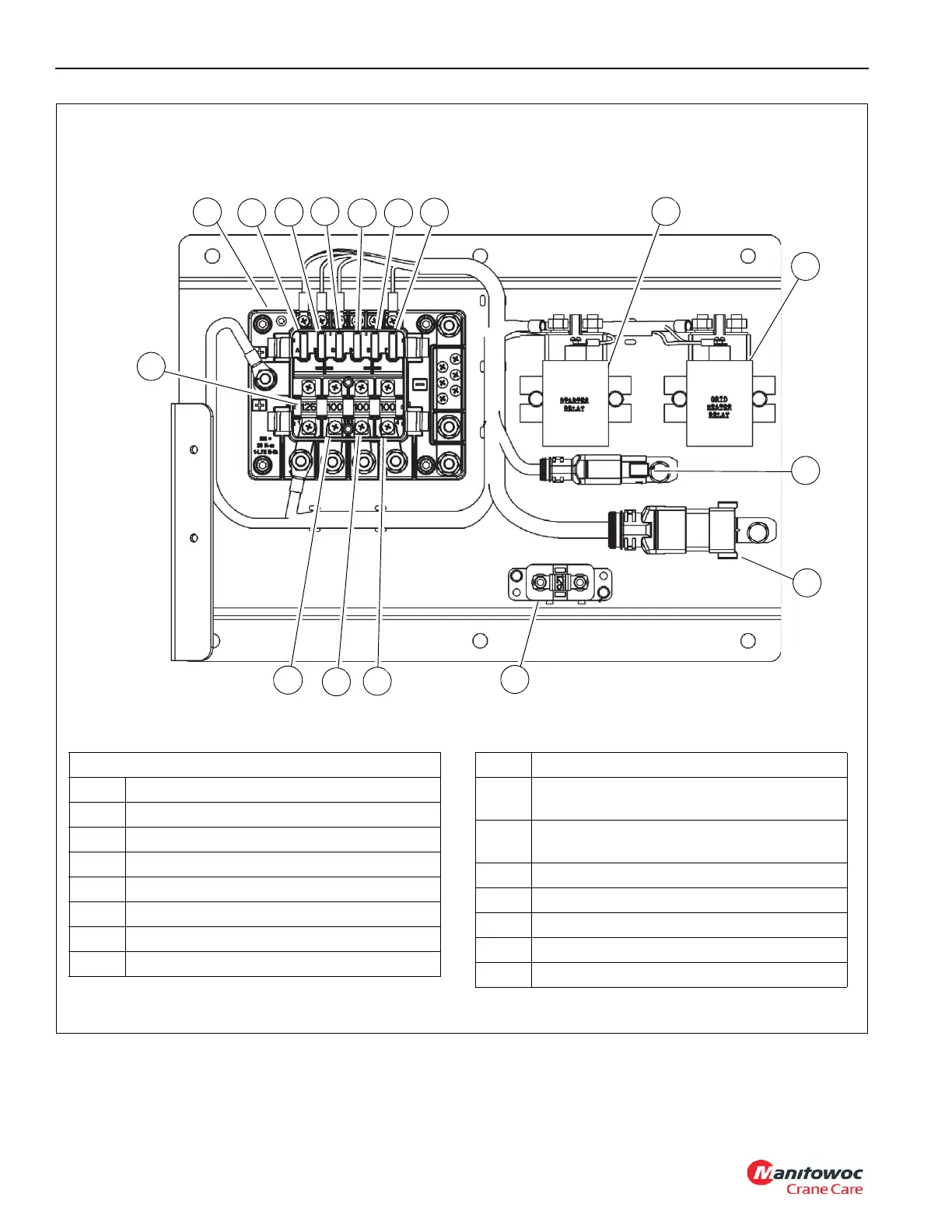

FIGURE 3-6
7
8
1
2
3
4
5
6
Carrier Electrical Panel
1 Carrier Electrical Panel
2 F4 - 100 Amp Power
3 F3 - 100 Amp Power
4 F2 - 100 Amp Power
5 F1 - 125 Amp Intake Air Heater Relay Power
6 F51 - 125 Amp Alternator Power
7 Grid Heater Relay
8 Starter Relay
9
10
14
13
11
15
16
9 FA - 15 Amp Module Battery Power
10
FB - 15 Amp UB+ Carrier CCM11/IOL31
Module Battery Power
11
FC - 5 Amp Starter Lockout Fused Relay
Power
12 FD - 15 Amp Cold Weather Power
13 FE - 15 Amp Cold Weather Power
14 FF - 5 Amp Diagnostic Tool Power
15 Connector - Relay Panel
16 Connector - Relay Panel 2
12
10150
