3-7
Published 10-01-2020 Control # 699-00
GRT9165 SERVICE MANUAL ELECTRICAL SYSTEM
3
GROVE
FIGURE 3-7
2
1
3
4
5
6

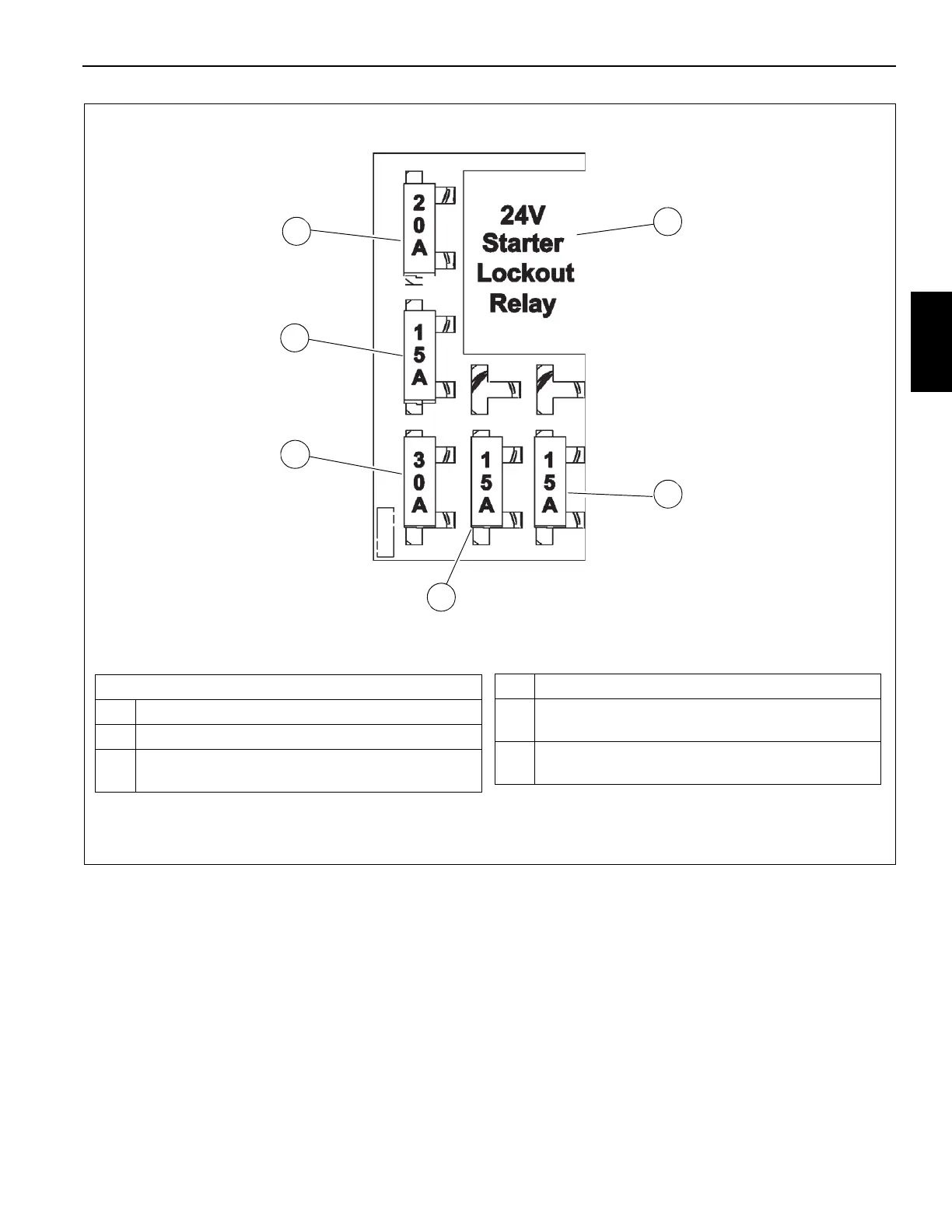

Carrier Fuse and Relay Box 1
1 K108 - 24V Starter Lockout Relay
2 20 Amp - Fused Battery Power
3
15 Amp - UE+ Carrier CCM3/IOL31 Module
Battery Power
4 30 Amp - Engine ECM Power
5
15 Amp - UB+ Carrier CCM12 Module Battery
Power
6
15 Amp - UB+ Carrier CCM12 Module Battery
Power
10153
