ELECTRICAL SYSTEM GRT9165 SERVICE MANUAL
3-24
Published 10-01-2020 Control # 699-00
Removing Hoist Camera
1. Disconnect the data cable (1, Figure 3-12).
2. Remove capscrews (2), washers (3), and camera (4)
from hoist camera arm (7).
3. Remove setscrew (5), bushings (6), and hoist camera
arm (7) from bracket.
Installing Hoist Camera
1. Install bushings (6), setscrew (5) and hoist camera arm
(7) on bracket.
2. Install camera (4) on hoist arm (7) using washers (3) and
capscrews (2).
3. Connect data cable (1).
Right Rear Camera
The following sections describe removing and installing the
right rear camera (1, Figure 3-13). The right rear camera is
located on the right side of the superstructure.
Removing Right Rear Camera
1. Remove the maintenance cover on the right side of the
superstructure.
2. Disconnect the data cable.
3. Remove capscrews (2), washers (3), and camera (1)
from bracket.
Installing Right Rear Camera
1. Install camera (1) on bracket using washers (3) and
capscrews (2).
2. Connect the data cable.
3. Install the maintenance cover on the right side of the
superstructure.
Back-up Camera
The following sections describe removing and installing the
back-up camera (1, Figure 3-14). The back-up camera is
located on the rear of the superstructure near the hoists.

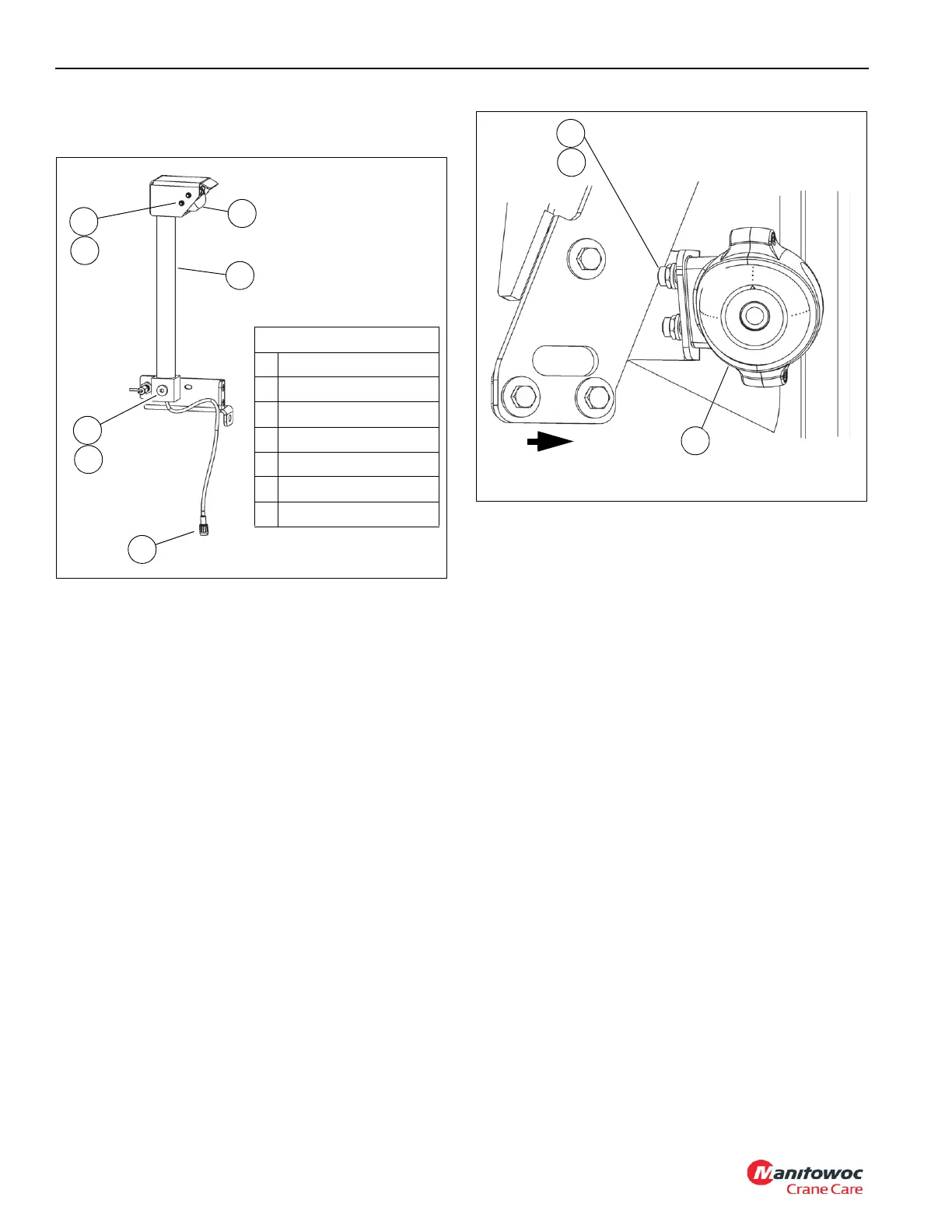

FIGURE 3-12
2
1
3
4
5
6
Hoist Camera
1 Data Cable
2 Capscrew
3 Washer
4 Camera
5Setscrew
6 Bushing
7 Hoist Camera Arm
7
10159
FIGURE 3-13
1
2
3
Forward
10161
