Manitowoc Grove GRT9165

7-15
GRT9165 SERVICE MANUAL POWER TRAIN
7
Published 10-01-2020 Control # 699-00
GROVE
FIGURE 7-14
9
10192
2
8
11

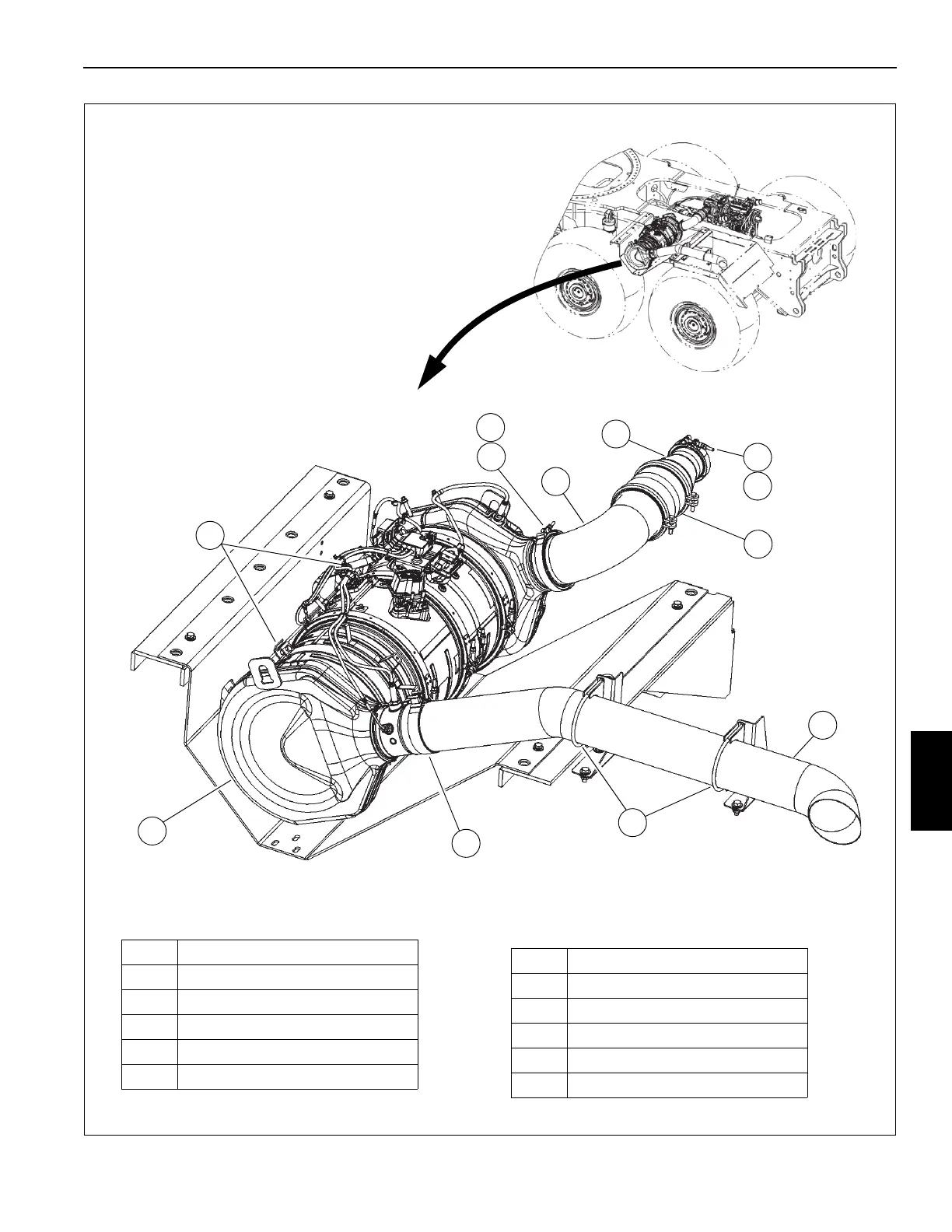

Exhaust System - Stage 5/Tier 4
3
1
4
5
7
6
10
12
1 Aftertreatment Unit
2 Tailpipe
3 Tailpipe Clamp
4 Clamp, Slip Joint
5 Clamp, Mounting Band
6 Clamp, V-Band
7 Gasket
8 Tube
9 Coupler
10 Mounting Bands
11 Clamp, V-band
12 Gasket
10191
