Manitowoc Grove GRT9165 Service Manual

7-31
GRT9165 SERVICE MANUAL POWER TRAIN
7
Published 10-01-2020 Control # 699-00
GROVE

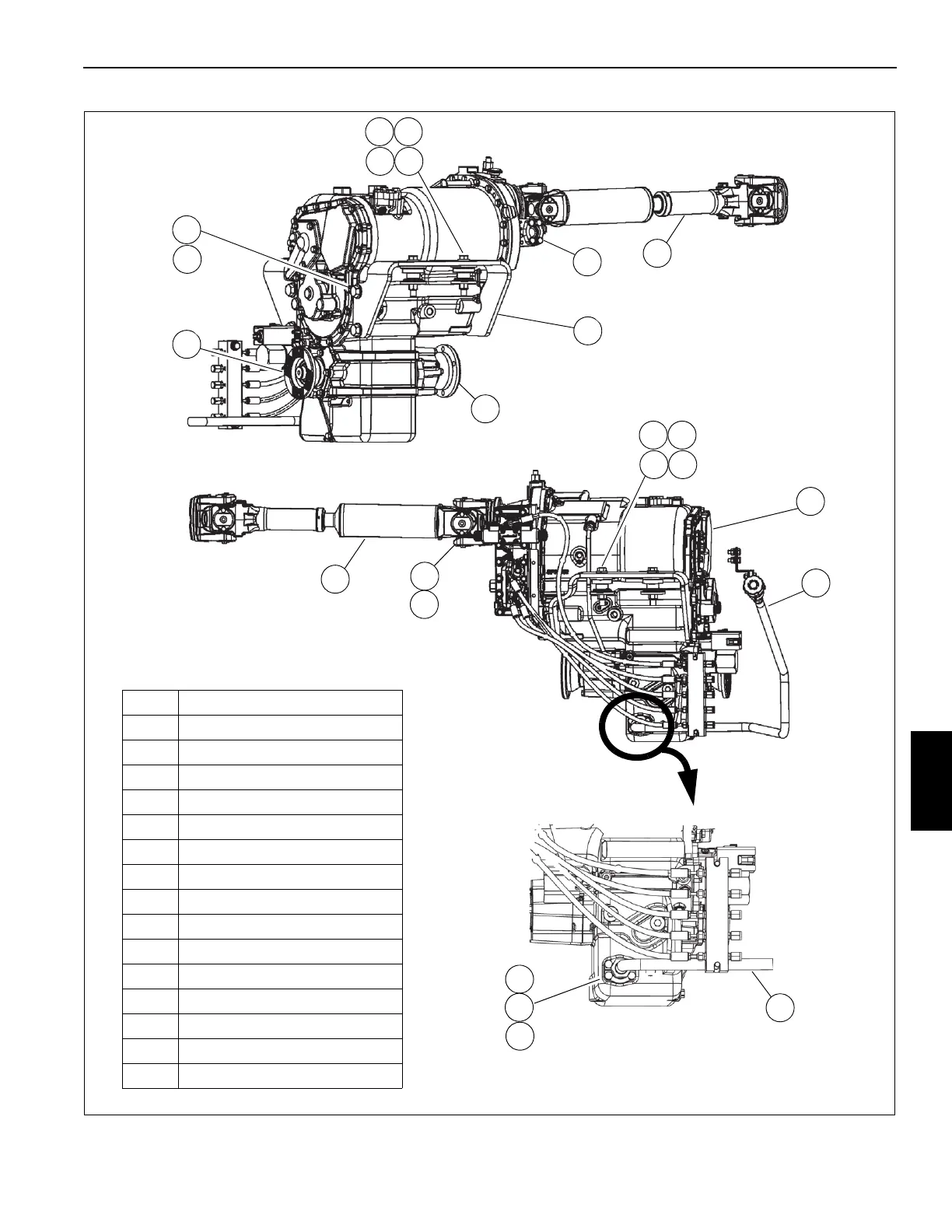

FIGURE 7-23
2
3
4
5
1
8
9
9
10
11
12
13
1
6
7
8
5
10
11
12
13
1 Transmission
2 Capscrew M10x30 SS
3 Flange, Split
4 O-Ring
5 Dipstick Tube
6 Capscrew M12x45 10.9
7 Locknut
8 Driveshaft
9 Driveshaft Coupler
10 Locknut
11 Washer
12 Shock Mount
13 Capscrew 5/8-11UNC G8
14 Capscrew M20x45 10.9
15 Washer
16 Installation Bracket
14
15
16
10212
10213
10214
