Manitowoc Grove GRT9165 Service Manual

UNDERCARRIAGE GRT9165 SERVICE MANUAL
8-26
Published 10-01-2020 Control # 699-00
1
2
3
4
5
6
7
8
9
10
3
4
5
11
12
3
4
5
13
14
15
16
17
18
19

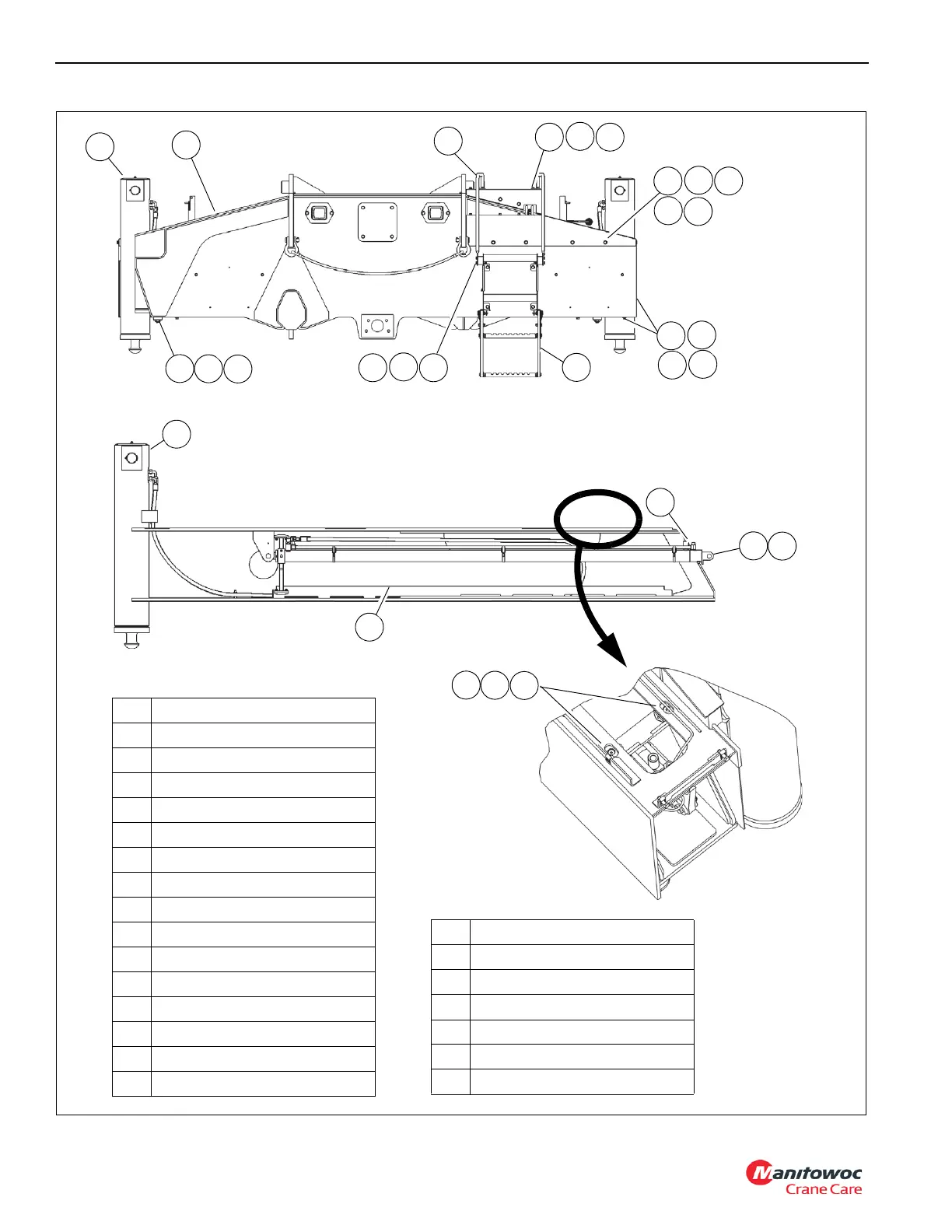

FIGURE 8-26
20
21
22
23
2
1 Outrigger Box
2 Outrigger Jack Cylinder
3 Capscrew 10 x 30 8.8
4 Lockwasher
5 Washer
6 Grab Handle
7 Capscrew M10x70 SS
8 Washer
9 Spacer
10 Ladder
11 Retaining Nut
12 Lower Outrigger Cover
13 Outrigger End Cover
14 Jam Nut
15 Plate
16 Wear Pad
17 Capscrew M10x25 10.9
18 Plate
19 Wear Pad
20 Hydraulic Hose
21 Cotter Pin
22 Clevis Pin
23 Outrigger Extension Cylinder
10231
10232
10233
