1-2 Diagnostic Message Descriptions ECODRIVE03 SMT-02VRS
DOK-ECODR3-SMT-02VRS**-WA01-EN-P
H1-Display
The H1-Display serves as an optical display of the diagnostic message on
the drive.
Barcode
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
H1
S1
S3 S2
Barcode
Typenschild
123456789
123456789
1234
1234
11121314 15161718
5678
1234
1234
5678
DKC
H1-Display
FA5047f1.fh7

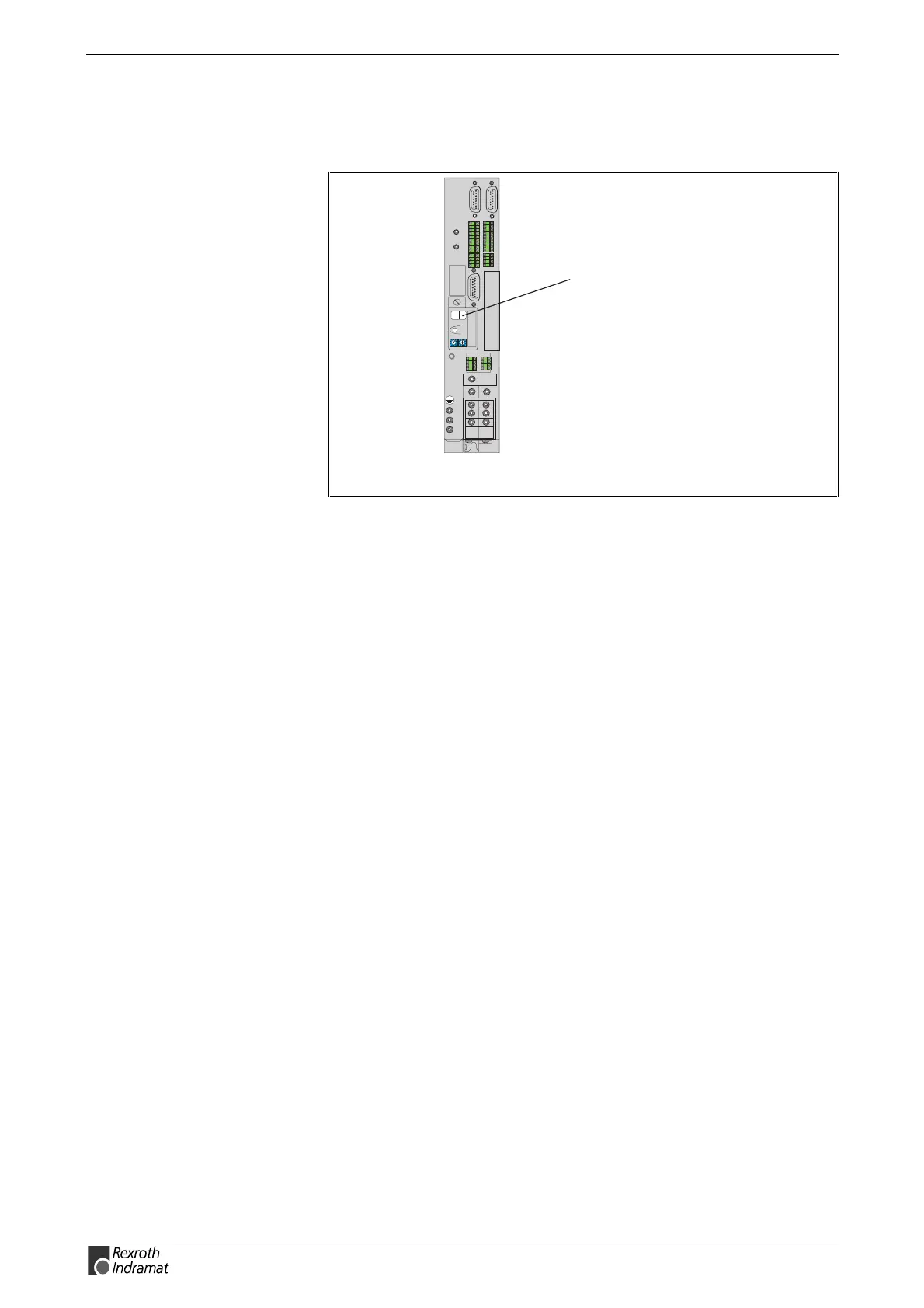

Fig. 1-2: H1-/Display
The diagnostic number appears on this two-positional seven-segment
display. The image can be seen on the "Diagnostic Message Priority
Display".
This display quickly shows the current operation status without the use of
a communications interface.
The operating mode cannot be seen from the H1-Display. If the drive
follows the operating mode and no command was activated, then the
symbol "AF" appears on the display.
If more than one diagnostic message is waiting, then the message with
the highest priority will be displayed.
The following graphic classifies operation status in order of importance.
