ECODRIVE03 SMT-02VRS Diagnostic Message Descriptions 1-3
DOK-ECODR3-SMT-02VRS**-WA01-EN-P
Da0001f1.fh7
Communicationphase
P
R
I
O
R
I
T
Y
Ready to operate ?
yes no
Error
Warning
Command error
Command active
Operation lock
active
Ready to
operate
Drive ready
Drive Halt
Drive is
following
operating mode
Drive automatic
check
Drive error
reaction

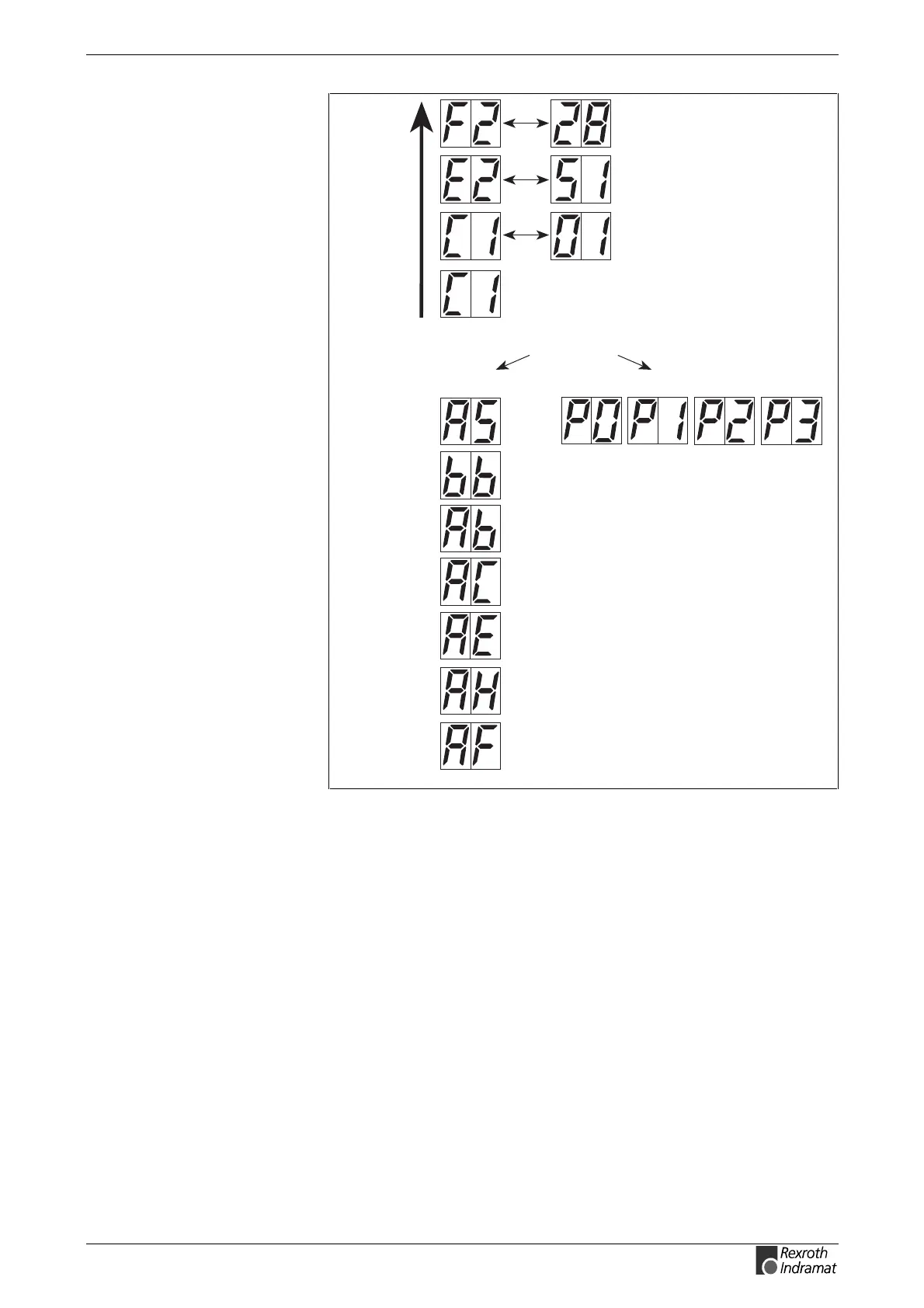

Fig. 1-3: Diagnostic message priority diagram
Clear Coded Diagnostic Message
The clear coded diagnostic message contains the diagnostic number
followed by the diagnostic text, as shown in the example, "Excessive
Output Error" (Fig. 1-1). It can be read out with the S-0-0095, Diagnostic
message parameter and directly displays the operation status on an
operator surface.
The clear coded diagnostic message will be switched to the current
language.
