 Power Limited Wiring - Wiring entering the enclosure from the upper left side of the enclosure or the
right side is considered power limited. Wiring must be in the shortest route and must not overlap any
other wiring.
Wiring Separation
All high voltage and non-power limited wiring must be separated from power limited wiring. A separation of at
least 1/4 inch must be maintained with high voltage and non-power limited wiring running in separate conduit
openings from power limited wiring.
Power Limited
Non-Power
Limited
Or High Voltage
(for relay
output wiring)
Power Limited
Non-Power
Limited
(for battery
wiring)
Non-Power
Limited
(for AC input)
Power Limited

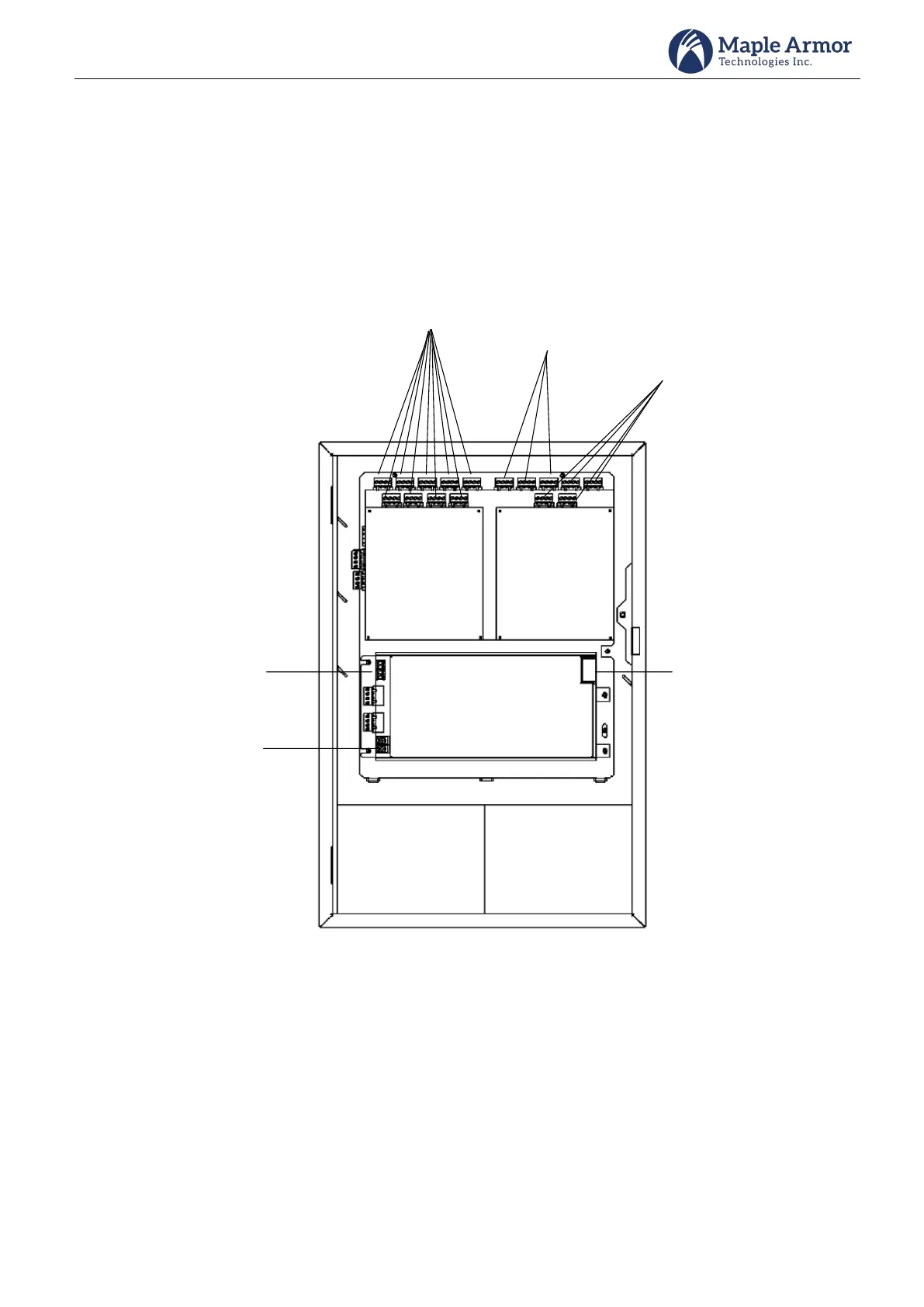

Figure 21 Wiring Terminals Location
