Installation and Operation Manual
9
System Components
Components Overview
Table 4 describes the FW105 components.
Table 4 System Components
Model
Description
FW202
AMI (Advanced Machine Interface)
FW390
PSU (Power Supply Unit)
FW301
MFU (Multi-functional Unit)
FW338
NOU (Notification Output Unit)
FW852
ISU (Isolator Unit)
FW261A
LDU (LED Display Unit)
AMI (Advanced Machine Interface)
The AMI is the main control unit of FW105 panel, which integrates the CPU board, 4 Signal status LEDs, 5 system
status LEDs, 4 navigation buttons and 1 enter button, 6 functionality buttons and a buzzer.
Signal Status
LED
System
Status LED
Navigation
and Enter
Buttons
Functionality
Buttons
LCD

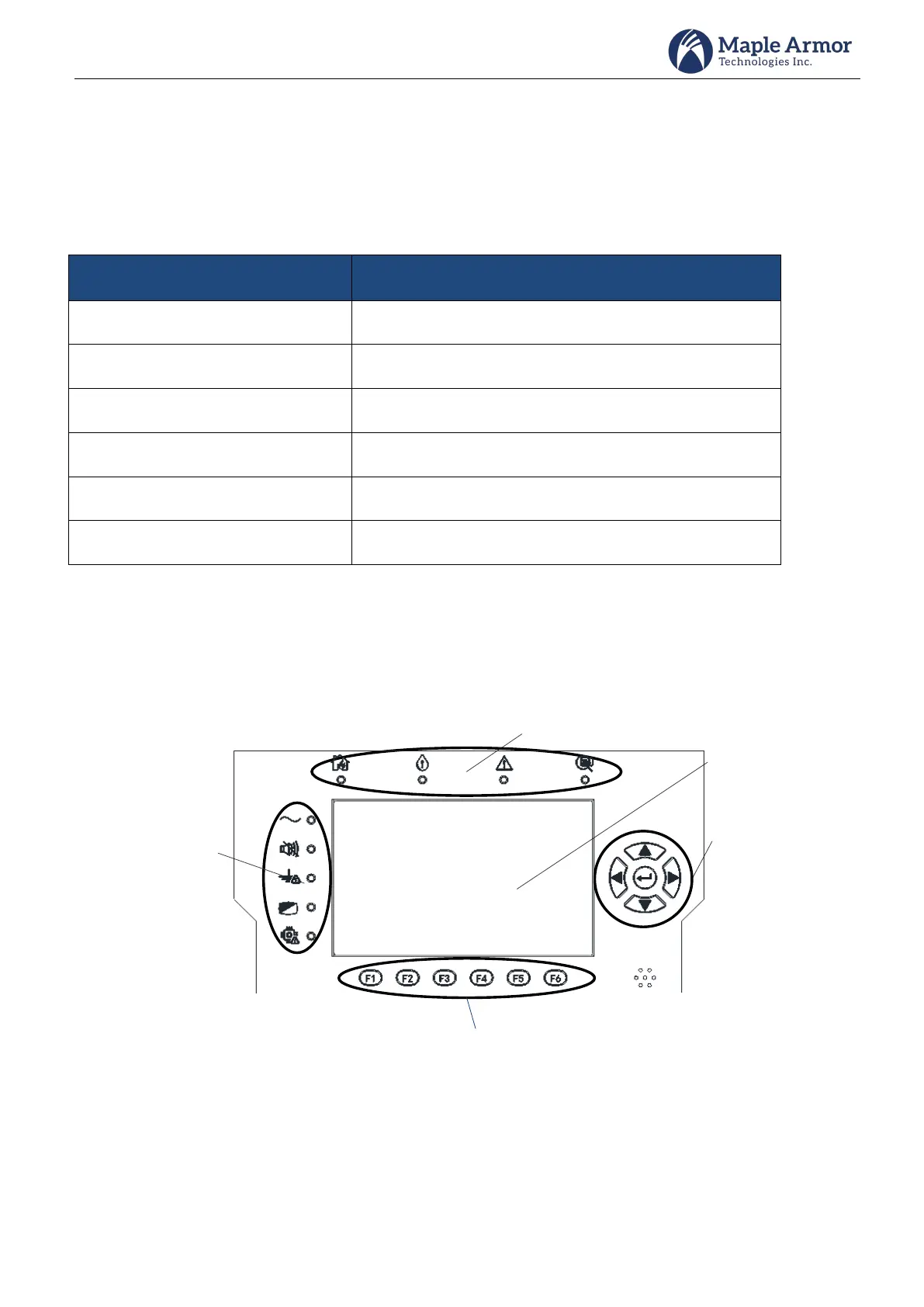

Figure 4 AMI (Front)
