Status handling
This section describes the control panel responses and operation in standby condition, alarm condition, trouble
condition, and supervisory condition.
Standby Condition
In normal standby operation, the green AC ON LED should be the only illuminated LED. The LCD will show the
system label and the current time.
Acknowledge
Buzzer
Silence
reset
Manual
Alarm
Menu
2017-05-18 18:47:23
Normal
FireWatcher
Project:xxx

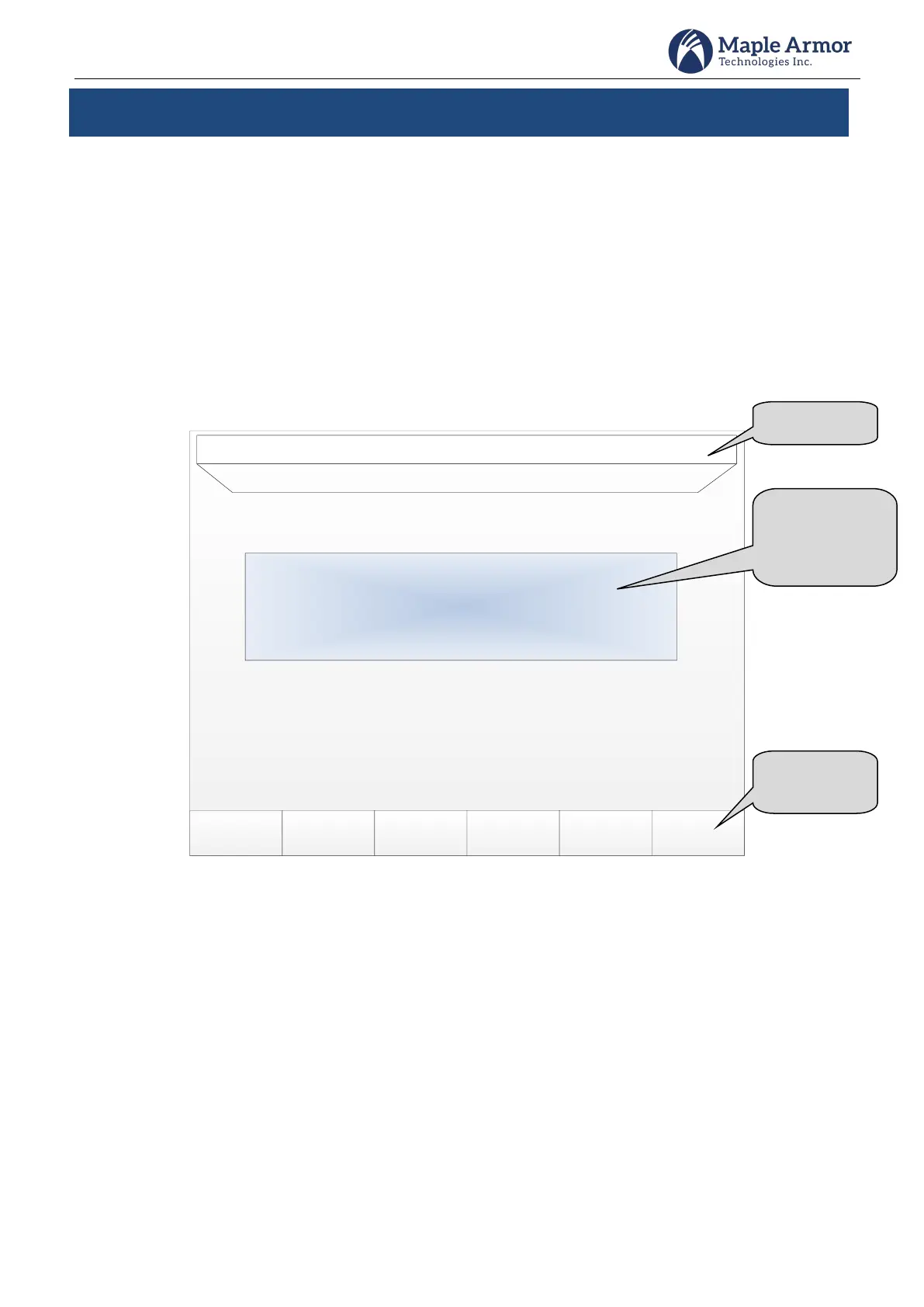

Figure 37 LCD (Standby)
Alarm Conditions
When the system detects an alarm condition, the system alarm LED activates (ON – flashing) and the buzzer
activates (ON – alarm pattern). Local audible and visual signals along with remote alarm signals operate, and the
LCD panel indicates the zone or point initiating the alarm. The LCD is similar to the Trouble conditions shown in
Figure 38.
When an alarm is received, proceed in accordance with the established emergency plan. Make sure all
personnel is accounted for and notify the Fire Department.
