DESKTOP PRINTER SERVICE MANUAL

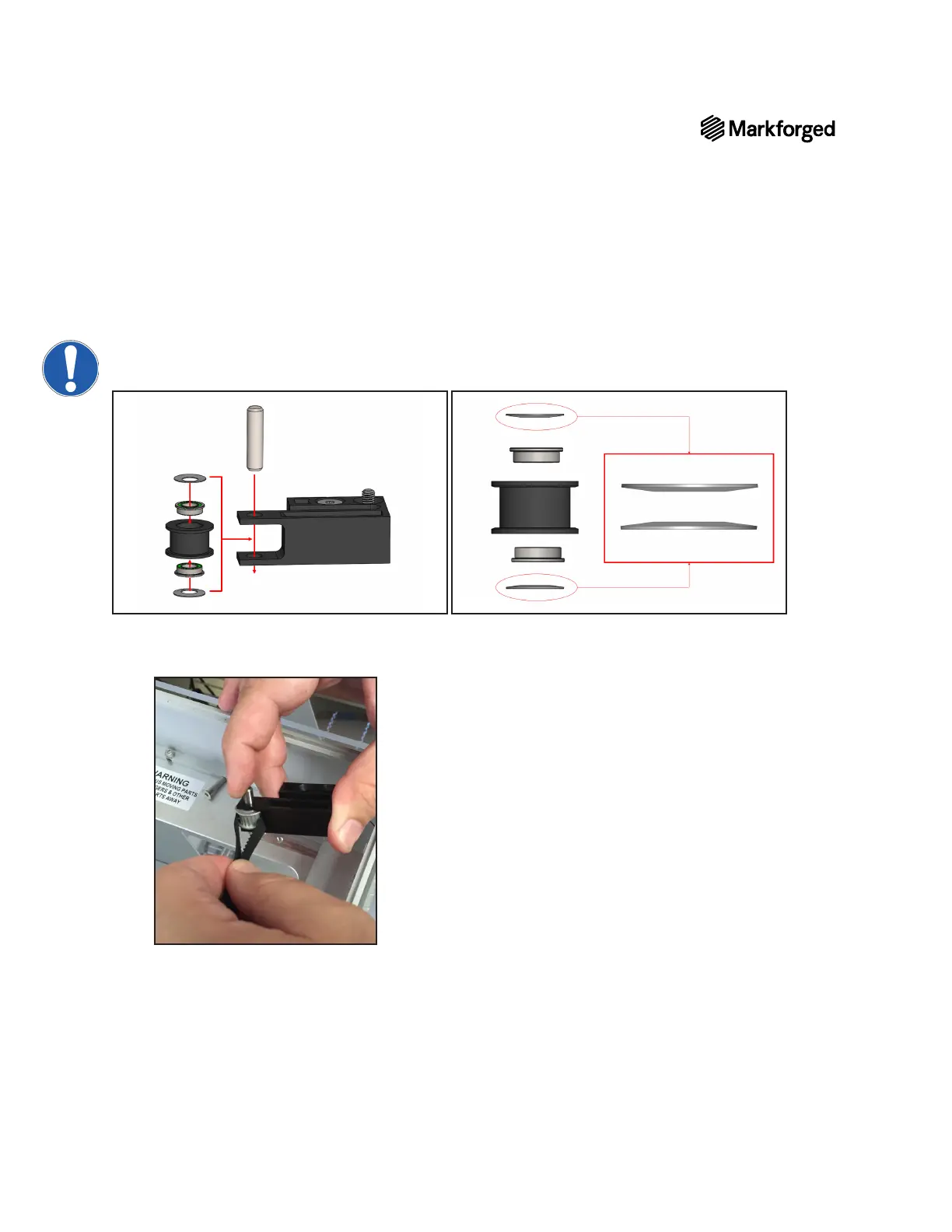

TENSIONER ASSEMBLY REINSTALLATION
Note: Reinstalling the two washers in an incorrect orientation can damage the system. Make sure to
align each washer with its convex (rounded) face inward,flush against the bearing.
1. 
with its ribbed side facing inward. Then insert the pulley (with the washers still in place) into the tensioner
assembly.
2. 
out the other side. Ensure that the same length of pin protrudes equally on both sides of the pulley.
3. After the pulley is successfully installed, ensure that the rest of the belt is properly routed through the idler

