19.9 Working with the Hardware Real-Time Controller (HRTC) 187
Note
The waiting time at step 0 is necessary to debounce the signal level at the input (the duration should be shorter
than the frame time).

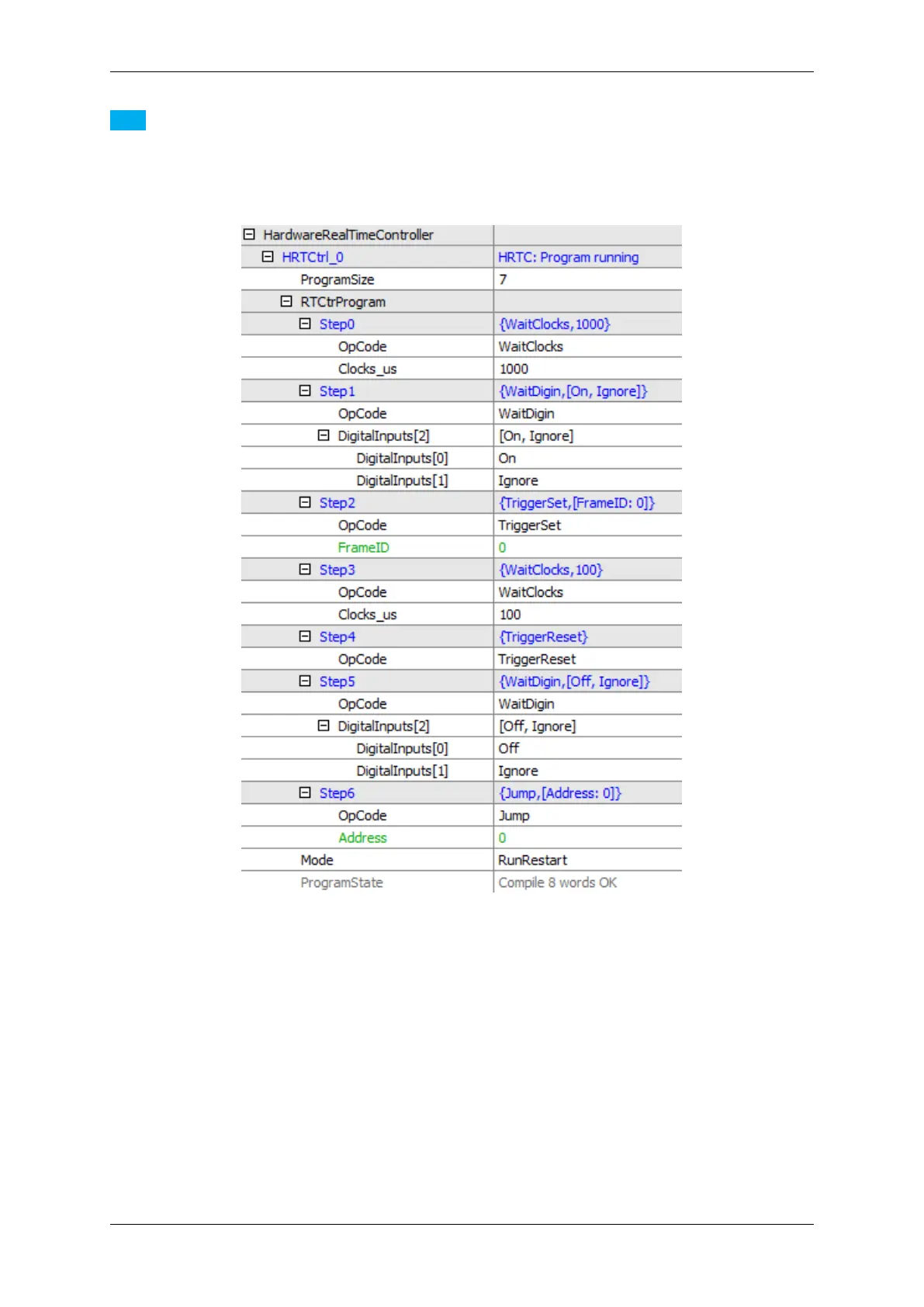

Figure 2: wxPropView - Edge controller triggering using HRTC
See also
Download this sample as a capture settings file: MLC200wG_HRTC_TriggerFromHighLevelTo←-
EdgeControl.xml. How you can work with capture settings is described in the following chapter
(p. 84).
To see a code sample (in C++) how this can be implemented in an application see the description of the class
mvIMPACT::acquire::RTCtrProgram (C++ developers)
MATRIX VISION GmbH
