20.4 mvBlueFOX-[Model]223 (1.4 Mpix [1360 x 1024]) 217
20.4.5 CCD Sensor Data
Device Structure
• Interline CCD image sensor
• Image size: Diagonal 8mm (Type 1/2)
• Number of effective pixels: 1392 (H) x 1040 (V) approx. 1.45M pixels
• Total number of pixels: 1434 (H) x 1050 (V) approx. 1.5M pixels
• Chip size: 7.60mm (H) x 6.2mm (V)
• Unit cell size: 4.65um (H) x 4.65um (V)
• Optical black:
– Horizontal (H) direction: Front 2 pixels, rear 40 pixels
– Vertical (V) direction: Front 8 pixels, rear 2 pixels
• Number of dummy bits: Horizontal 20 Vertical 3
• Substrate material: Silicon

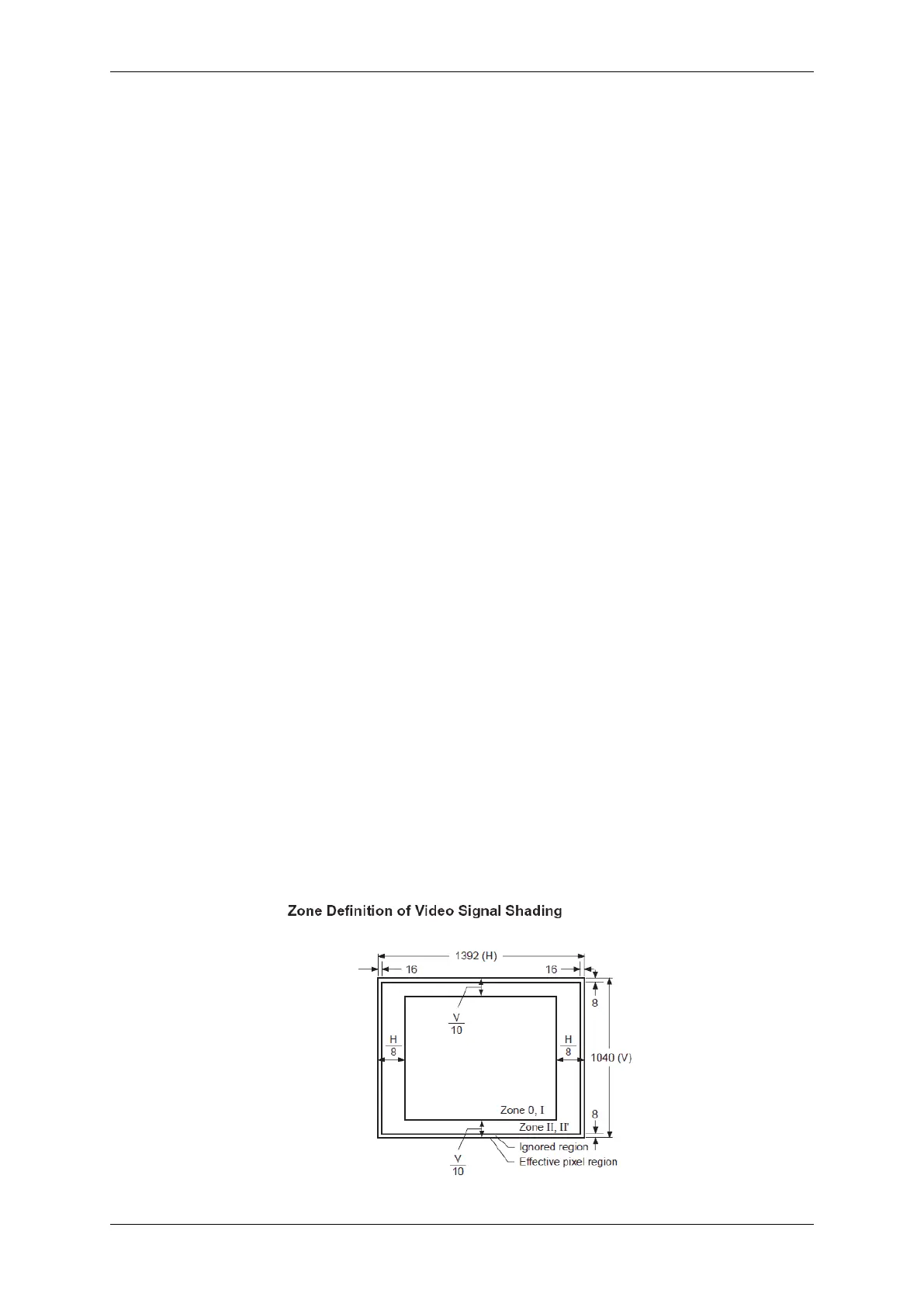

20.4.5.1 Characteristics
These zone definitions apply to both the color and gray scale version of the sensor.
MATRIX VISION GmbH
