20.3 mvBlueFOX-[Model]221 (0.8 Mpix [1024 x 768]) 209
1. Time needed to send data to the CCD controller depending on what is changed
exposure : abt 2..3ms
window: abt 4..6ms
trigger mode: from 5..90ms,
varies with oldmode/newmode combination
2. Time to initialize (erase) the CCD chip after reprogramming this is fixed, abt 4.5 ms
So for example when reprogramming the capture window you will need (average values)
t
regprog
= change_window + init_ccd
t
regprog
= 5ms + 4.5ms
t
regprog
= 9.5ms
20.3.5 CCD Sensor Data
Device Structure
• Interline CCD image sensor
• Image size: Diagonal 6mm (Type 1/3)
• Number of effective pixels: 1025 (H) x 768 (V) approx. 790K pixels
• Total number of pixels: 1077 (H) x 788 (V) approx. 800K pixels
• Chip size: 5.80mm (H) x 4.92mm (V)
• Unit cell size: 4.65um (H) x 4.65um (V)
• Optical black:
– Horizontal (H) direction: Front 3 pixels, rear 40 pixels
– Vertical (V) direction: Front 7 pixels, rear 2 pixels
• Number of dummy bits: Horizontal 29 Vertical 1
• Substrate material: Silicon
20.3.5.1 Characteristics

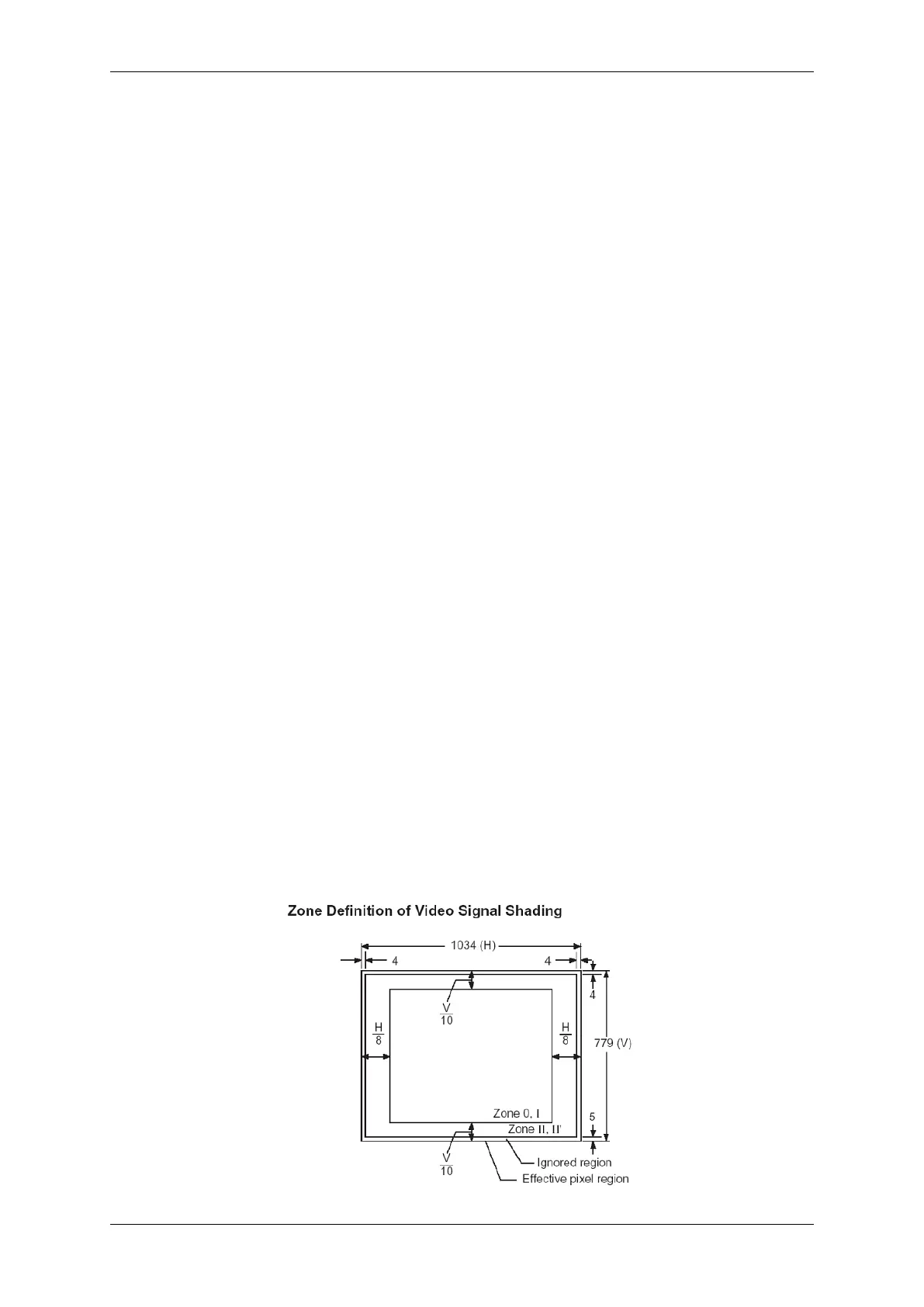

These zone definitions apply to both the color and gray scale version of the sensor.
