20.1 mvBlueFOX-[Model]220 (0.3 Mpix [640 x 480]) 193
20.1.5 CCD Sensor Data
Device Structure
• Interline CCD image sensor
• Image size: Diagonal 4.5mm (Type 1/4)
• Number of effective pixels: 659 (H) x 494 (V) approx. 330K pixels
• Total number of pixels: 692 (H) x 504 (V) approx. 350K pixels
• Chip size: 4.60mm (H) x 3.97mm (V)
• Unit cell size: 5.6um (H) x 5.6um (V)
• Optical black:
– Horizontal (H) direction: Front 2 pixels, rear 31 pixels
– Vertical (V) direction: Front 8 pixels, rear 2 pixels
• Number of dummy bits: Horizontal 16 Vertical 5
• Substrate material: Silicon
20.1.5.1 Characteristics

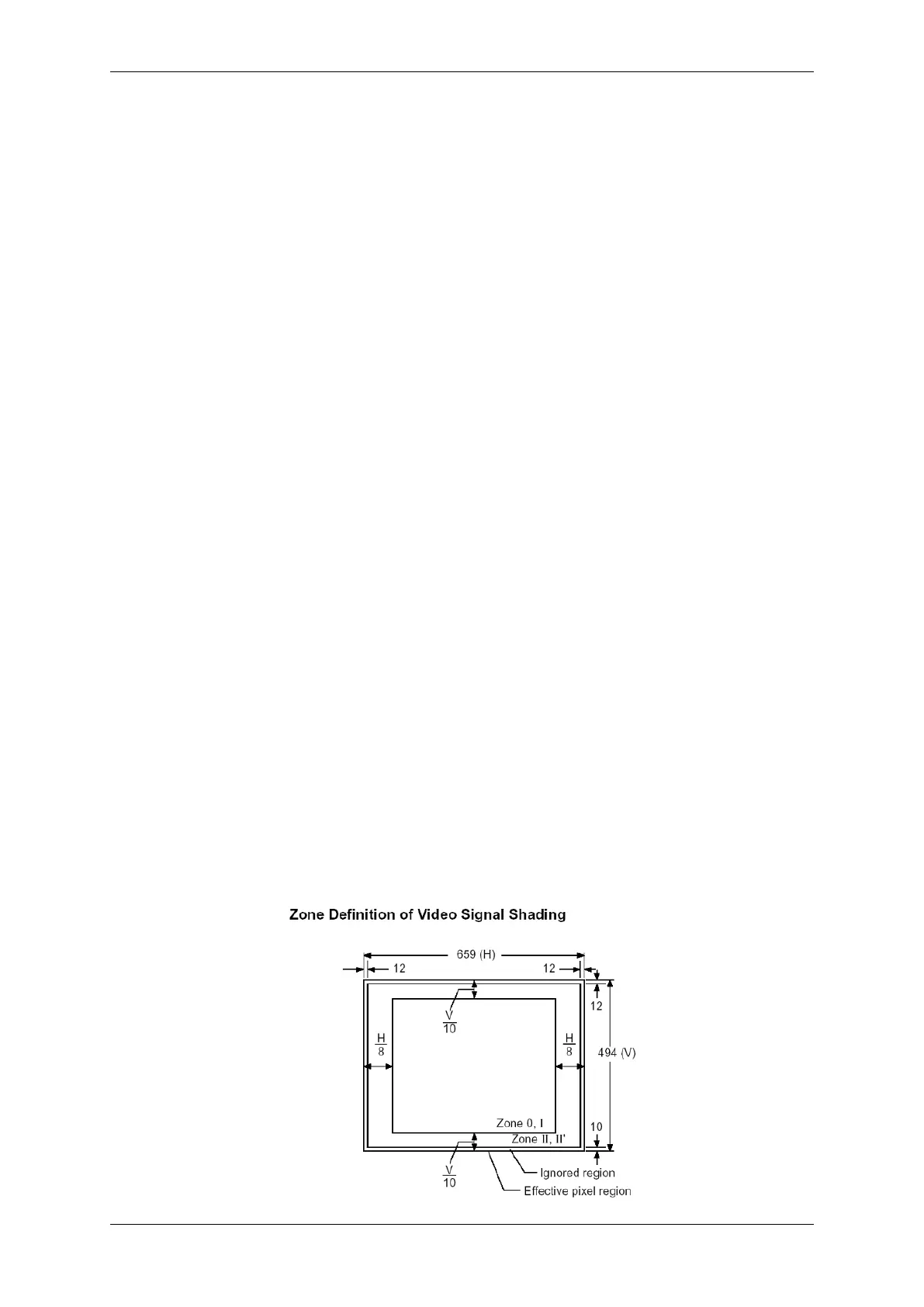

These zone definitions apply to both the color and gray scale version of the sensor.
