19.9 Working with the Hardware Real-Time Controller (HRTC) 189
When the cameras are set up to start the exposure on the rising edge of the signal <delay time> of course is the
desired delay time minus <trigger pulse width>.
If more than two cameras shall be connected like this, every camera except the last one must run a program like
the one discussed above. The delay times of course can vary.

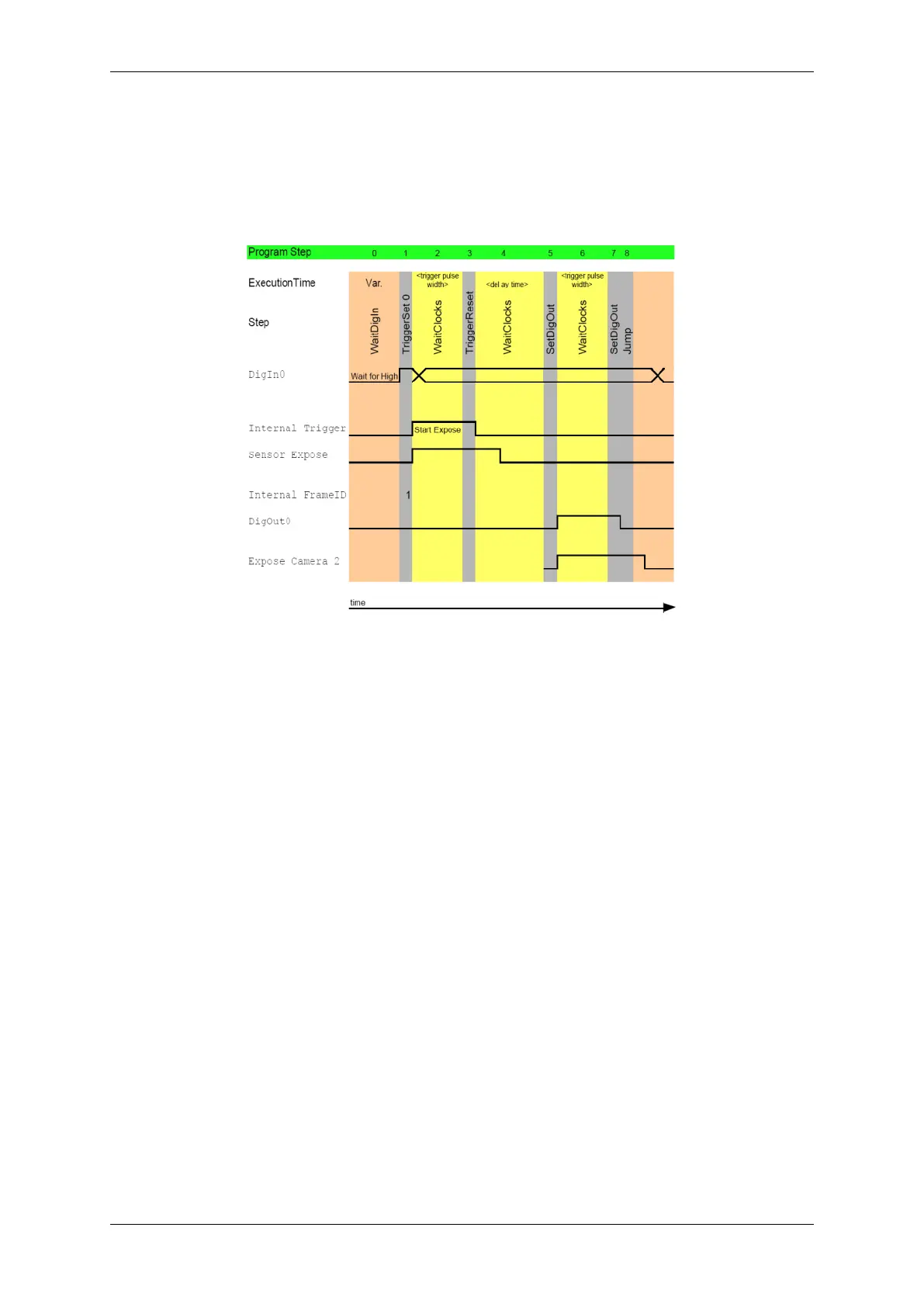

Figure 2: Delay the expose start of the following camera
