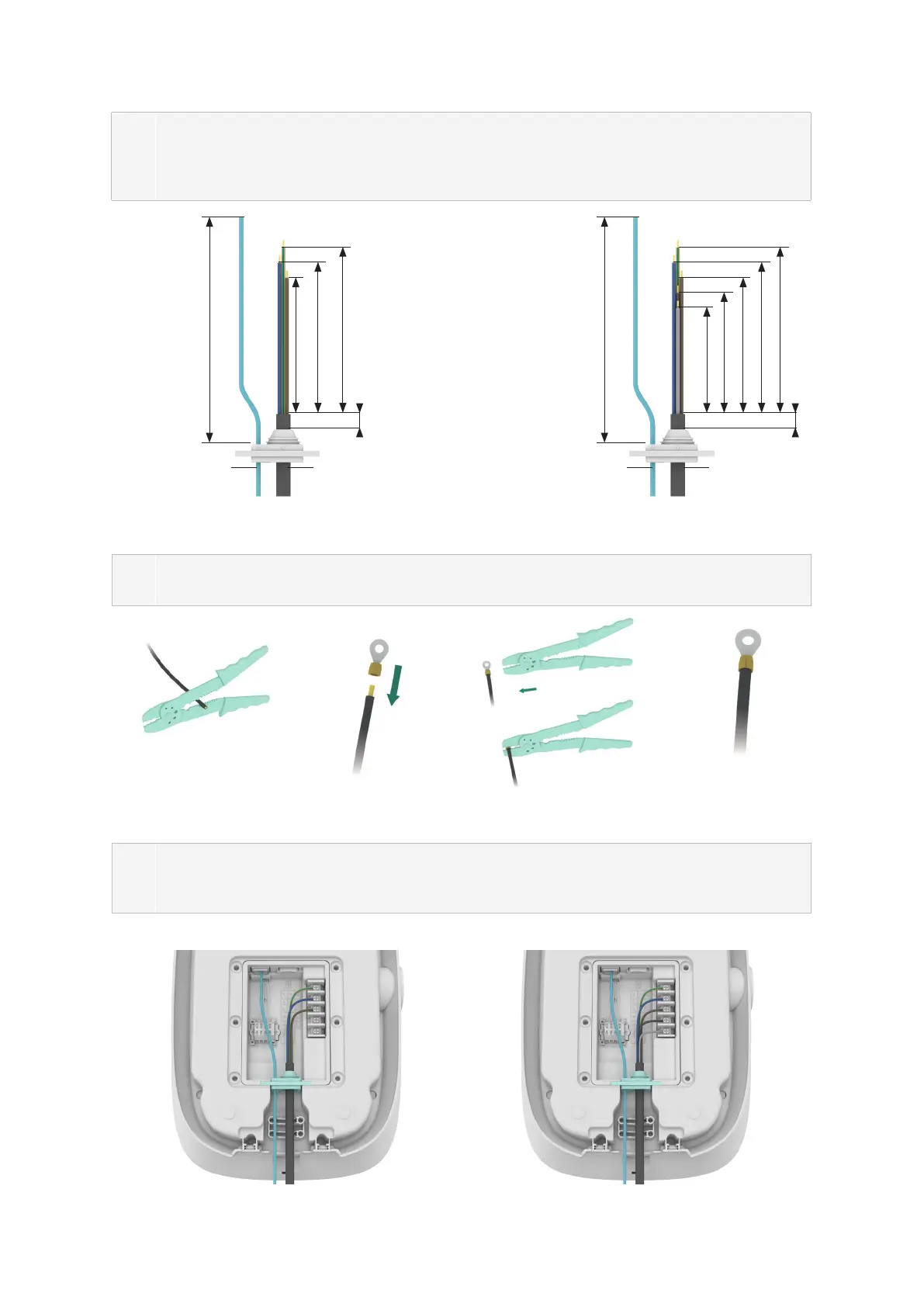

Control the cable inlet length and stripping length according to the requirements in
Figure 6. The power cable is a exible cable, which needs to be crimped with a ring
terminal. CAT5 or CAT6 cable can be used as network cable, and the network cable is
crimped with the network cable connector.
Figure 6 Cable inlet length (Unit: mm)
5
The power cable needs to be crimped with the ring terminal. The crimping process is
shown in Figure 7.
Figure 7 Ring terminal crimping
6
Install the cable inlet rubber plug and complete wiring operation, as shown in Figure
8. Complete power cable wiring, then connect the network cable if necessary. External
grounding is not required.
Figure 8 Wiring diagram
90
90
80
70
150
150
100
100
110
110
10
10
7.4kW 22kW
Network cable Network cablePower cable Power cable
7.4kW 22kW
Step 1 Step 2 Step 3
Step 4
