STEP 2 - CHOOSE METHOD OF INSTALLATION
Three methods for mounting a BMR Liftgate
on a vehicle body are covered in this manual.
METHOD 1 - Column mounting plates and
extension plate can be welded
to vehicle body before bolting
on the Liftgate (FIG. 21-1). Refer
to the PRE-INSTALL MOUNT
ING PLATES AND EXTENSION
PLATE ON VEHICLE instruc-
tions in STEP 3.
METHOD 2 - Column mounting plates and ex-
tension plate are assembled to
Liftgate at factory (FIG. 21-2).
Refer to the
WELD BOLT-ON
LIFTGATE TO BODY instruc-
tions in STEP 3.
METHOD 3 - Liftgate equipped with exten-
sion plate can be welded to
vehicle body (FIG. 21-3). Re-
fer to the WELD LIFTGATE
TO BODY instructions in
STEP 3.

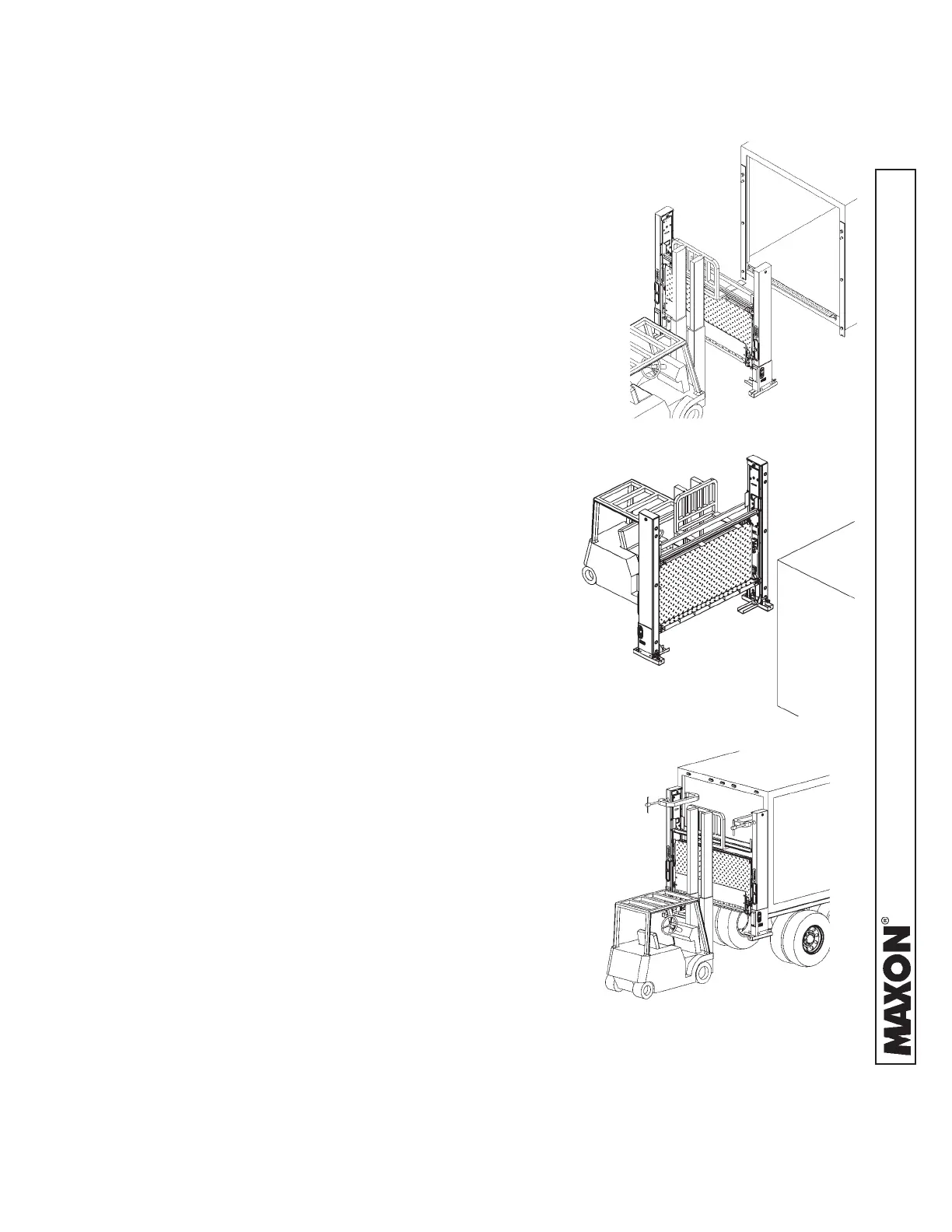

FIG. 21-1
FIG. 21-3
FIG. 21-2
