STEP 16 - FINISH WELDING LIFTGATE TO VEHICLE
METHOD 2 & METHOD 3 - WELD LIFTGATE TO BODY
NOTE: Skip this step if using METHOD 1 installation where mounting plates and
extension plate are preinstalled on vehicle.
POSITIVE (+)
BATTERY POST
WARNING
!
To prevent accidental personal injury
and equipment damage, disconnect
(-) battery cable and (+) cable from
battery.
2. Disconnect power to the pump by
disconnecting negative (-) and positive
(+) cables from battery (FIG. 77-1).
Reinstall nuts on negative (-) and posi-
tive (+) battery terminals.
NEGATIVE (-)
BATTERY CABLE
NEGATIVE (-)
BATTERY POST
NUT
POSITIVE (+)
BATTERY CABLE

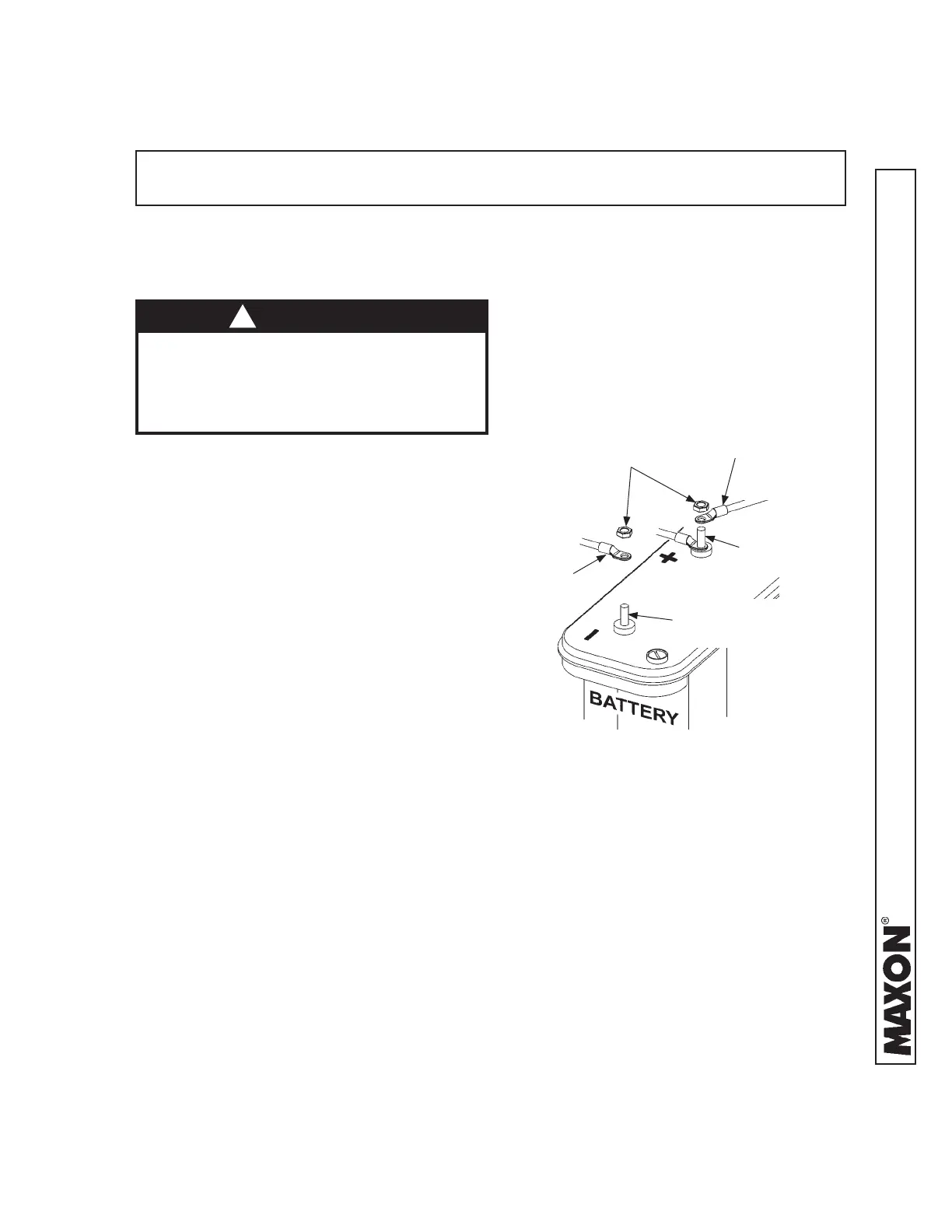

DISCONNECTING BATTERY POWER
FIG. 77-1
1. Check operation of Liftgate before fi nal
welding. See BMR Operation Manual.
